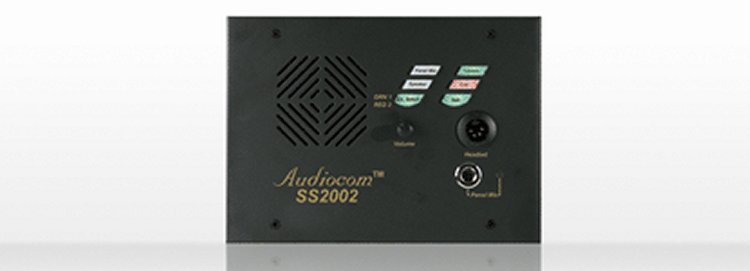

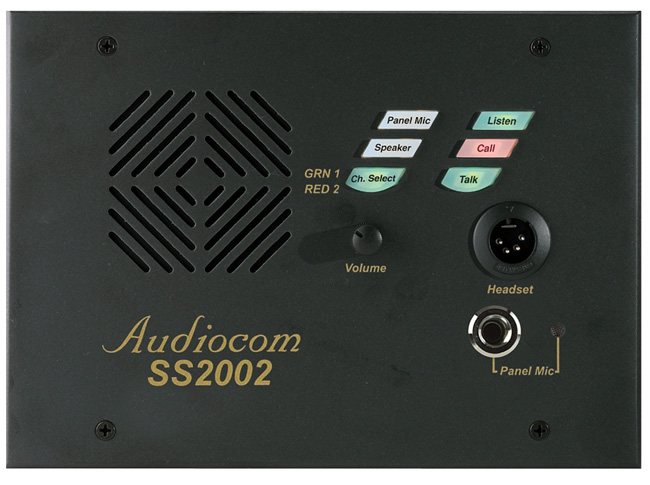

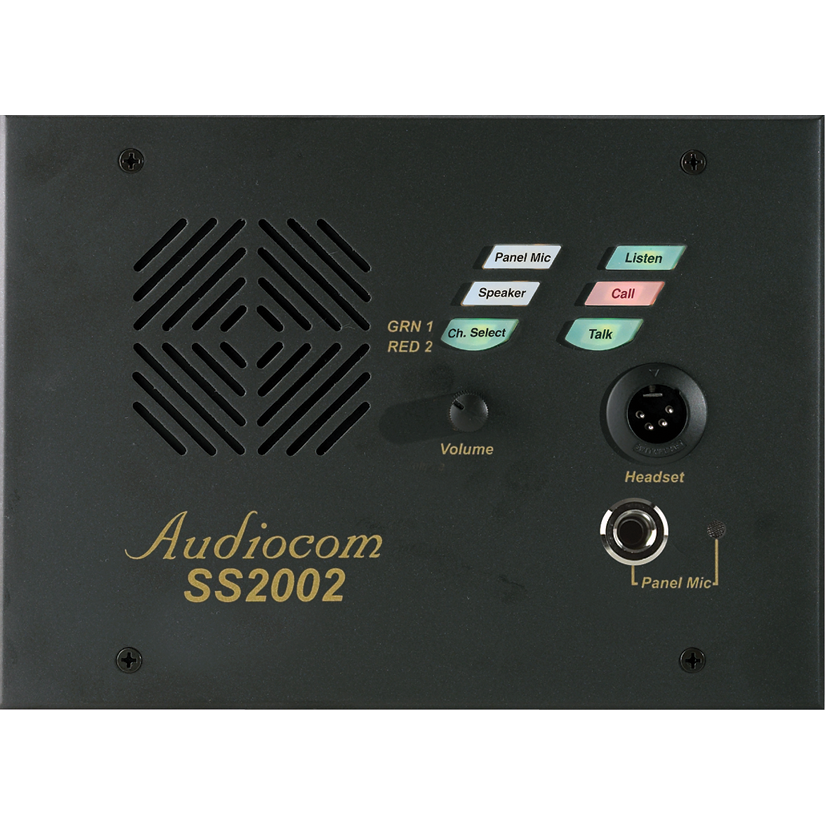

The SS-2002 is a two-channel speaker station that comes in five versions to suit a variety of applications. There is a plain version with no enclosure. The "S" box is a portable version. It has a carrying handle and dual "loop-through" intercom connectors which permit stations to be quickly interconnected using prefabricated cables. The "P" box is a stationary version. It also has dual "loop-through" connectors for quick interconnection, but the case is designed for desktop or console-mount applications. The "U" box is designed for permanent, in-the-wall mounting. It uses push type wire terminals for connection to the intercom system. The "RM" version is suitable for desktop use or can be rackmounted using the optional RM-14 rackmount ear kit.
Easy Wiring
Via XLR "loop-through" or push-type wiring terminal block.
Panel Mic Key
Selects built-in panel microphone or gooseneck microphone (when present) when in the ON position. Selects headset/handset when in the OFF position.
Speaker Key
Selects the built-in speaker in the ON position and the headset/ handset when in the OFF position.
Channel Select Switch
Used to switch between intercom channels one and two. The switch lights green for channel one and red for channel two.
Call Key
Used to send call signals on the intercom channel and to indicate incoming calls.
Intercom Talk Key
Only momentary (push-to-talk) is possible.
Panel Mic Connector
Accepts an MCP-90 series microphone.
