Telex BTR-700 Base Station
(and TR-700 Beltpacks)
 |
Telex BTR-700 G&G Price: $4,095 Want a better price? UHF Single Channel Wireless Synthesized Base Station with A4M headset jack |
|
Telex BTR-700 G&G Price: $4,095 Want a better price? UHF Single Channel Wireless Synthesized Base Station with A4F headset jack |
|
Telex BTR-700 G&G Price: $4,095 Want a better price? UHF Single Channel Wireless Synthesized Base Station with A5F headset jack |
|

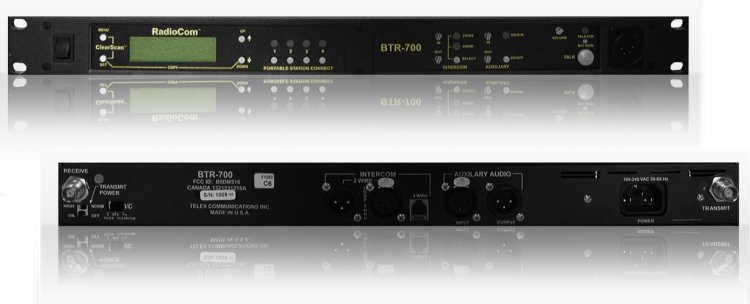

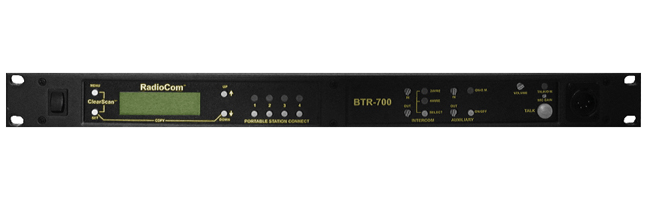

BTR-700 Base Station The Telex RadioCom BTR-700 UHF-synthesized wireless intercom system offers the ultimate in reliable, high performance, high fidelity full duplex communications. The BTR-700 system includes the BTR-700 frequency-agile base station, working with up to four TR-700 frequency-agile beltpacks. The BTR-700 base station provides full duplex communications with the beltpacks. The BTR-700 system is perfectly suited for stand-alone operation and can interface with Audiocom (Telex), RTS TW, Clear-Com as well as RTS Matrix systems and other four-wire communications systems. In addition to the external intercom systems interfaces listed above, the system provides connections for auxiliary balanced audio input and output. The RadioCom BTR series has been designed for reliable, efficient operation. Operating in the 518 to 868 MHz range, the units operate reliably at line-of-sight distances of 1,000 feet. With available antenna systems from Telex, the effective operating range can be extended. The high efficiency beltpacks provide 12-14 hours of uninterrupted operation using standard alkaline batteries. Single channel UHF frequency agile wireless intercom base station with Enhanced ClearScan, talk/listen headset station at the base, easy-to-use graphical user interface, Intelligent Power Control, combination tone code/RF noise squelch and DSP digital audio processing, and much more. This system packs all of the performance punch of the BTR-800 without all of the bells and whistles. Each base station supports up to four full time transmit, full duplex communication beltpacks. The BTR-700 is fully compatible with Telex, RTS and Clear-Com hardwired communications systems right out of the box.
|
|
|
4-Wire Input and Output Level Adjustable (2 Vrms typical) Antenna ½ Wave (supplied), TNC Male Connector TX/RX Auxiliary Input Adjustable (2 Vrms typical) Auxiliary Output Adjustable (2 Vrms typical into 600Ω) Color Black Depth 14.02" (356 mm) Deviation 40 kHz (35 kHz Europe) Form Factor Rackmount Frequency Band of Operation 518 - 608 MHz, 614 - 722 MHz, 796 - 862 MHz in 18 MHz TX and RX bands Frequency Response 300 Hz-8 kHz Function Base Station Height 1.73" (44 mm) Microphone Input Sensitivity 9 mV Modulation Limiter Peak-Responding Compressor Radiated Harmonics and Spurious: Exceeds FCC Specifications Modulation Type FM Power Requirements 100-240 VAC, 50-60 Hz, IEC receptacle RF Frequency Stability 0.01 % RF Sensitivity < 0.8 μV for 12 dB SINAD Storage Temperature -4°F to 130°F (-20°C to 55 °C Transmit Power 50 mW Max. (High), 5 mW (Normal) Type Synthesized Transmitter, 712 channels Weight 6.97 lbs (3.16 kg) Width 19.02" (483 mm) |
|
|
CLICK HERE FOR TELEX HEADSETS |
| CONSUMER ALERT Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones |
