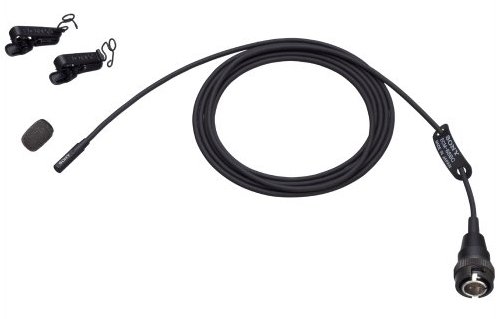

Sony ECM-88
Lavalier Microphone

Click for more info Sony ECM-88B
G&G Price: $495
Want a better price?
Electret Condenser Lavalier Microphone
List Price: $600
Sony ECM-88BC
G&G Price: $326
Electret Condenser Lavalier Microphone
List Price: $450
Sony ECM-88BPT
G&G Price: $319
Electret Condenser Lavalier Microphone
List Price: $440
Sony ECM-88FPT
G&G Price: $268
Omni-Directional Electret Condenser Microphone
List Price: $380
Sony ECM-88SHORT
G&G Price: $309
Electret Condenser Lavalier Microphone
List Price: $440

Accessories
ADC88 Color Wind Screen Pack $165
ADKIT88 ECM-88 Accessory Kit $118
ADR88B Black Wind Screen Pack $155
DC78 Power Supply Unit for Lavalier Mics
Containing the Sony SMC9-4p Connector		 $100
SAD88B Satety Clip Pack $175

Specifications:
  • Capsule type: Electret condenser
  • Directivity: Omni-directional
  • Frequency response: 20 Hz to 20 kHz
  • Sensitivity: -52 dB +/- 2 dB (when used in conjunction with the DC-78), 0dB = 1 V/Pa., at 1 kHz
  • Output impedance: 100 ohms +/- 20% (when used in conjuction with the DC-78)
  • Dynamic range: 99 dB or more
  • Signal-to-noise ratio: 68 dB or more (A-weighted, 1 kHz, 1Pa.)
  • Inherent noise: 26 dB SPL or less (A-weighted, 1kHz, 1 Pa.), 0dB SPL = 20u Pa.
  • Wind noise: 45 dB SPL or less (when using the supplied windscreen), 0dB SPL = 20u Pa.
  • Induction noise from external magnetic field: 5 dB SPL or less (when used in conjunction with the DC-78), 0dB SPL = 20u Pa.
  • Maximum input sound pressure level: 125 dB SPL, OdB SPL = 20u Pa.
  • Cable length: 8.2 feet
  • Output connector: ECM-88: SMC9-4P, ECM-88PT: no connector (pigtail)
  • Power requirements: DC 1.1 to 10.0 V
  • Dimensions (Mic Capsule): 5/32 x 5/32 x 11/16 inch
  • Weight: ECM-88: 32 grams (including mic cable), ECM-88PT: 20 grams (including mic cable)
