Sony ECM-77B
Lavalier Microphone

	Sony ECM-77B Omni-Directional Electret Condenser Microphone G&G Price: $354 Want a better price?
	Sony ECM-77BC/9X Omni-Directional Electret Condenser Microphone G&G Price: $255 Want a better price?
	Sony ECM-77BMP Omni-Directional Electret Condenser Microphone G&G Price: $245 Want a better price?
	Sony ECM-77BPT Omni-Directional Electret Condenser Microphone G&G Price: $259 Want a better price?

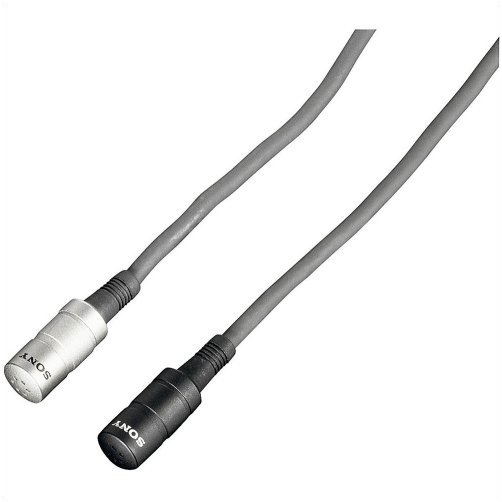

Perfect for television applications, Sony's ECM77B Omni-Directional Electret Condenser Microphone is a miniature lavalier microphone designed to be inconspicuous. This tiny mic runs on either phantom power or AA battery operation. The ECM77B comes with an XLR connector

High-performance frequency response: 40 -20,000 Hz
Black finish
Two-way powering system: AA-size battery or external power supply

Capsule type: Electret Condenser
Frequency response: 40-20,000Hz
Directivity: OMNI
Microphone cable: 3m
Output connector: XLR-3-12C TYPE
Sensitivity (0dB=1V/Pa,at 1kHz): -52.0dB ±2dB
Output impedance at 1kHz: 150ohms (Balanced)
Dynamic range: equal to or greater than 90dB
Signal-to-noise ratio(A weighted,1kHz,1Pa.): equal to or greater than 64dB
Wind noise (w/wind screen): equal to or less than 40dB SPL
Maximum input sound pressure level: equal to or greater than 120dB SPL
POWER SUPPLY:
Battery: SUM-3(NS) (1.5V)
Battery life: Approx. 5,000H
Ext. power: DC48V
Inherent noise (0dB SPL=20µPa.): equal to or less than 30dB SPL

ADC77	Colored Wind Screen Kit	$97
ADC77B	Windscreen Pack	$124
ADKIT77	Accessory Kit	$144
ADR77B	Windscreen Pack	$124
SADH77B	Horizontal Single-Clip Pack	$165
SADS77	Safety Pin Type Clip Pack	$165
SADV77B	Vertical Clip Pack	$185
SADW77B	Horizontal Double-Clip Pack	$144
