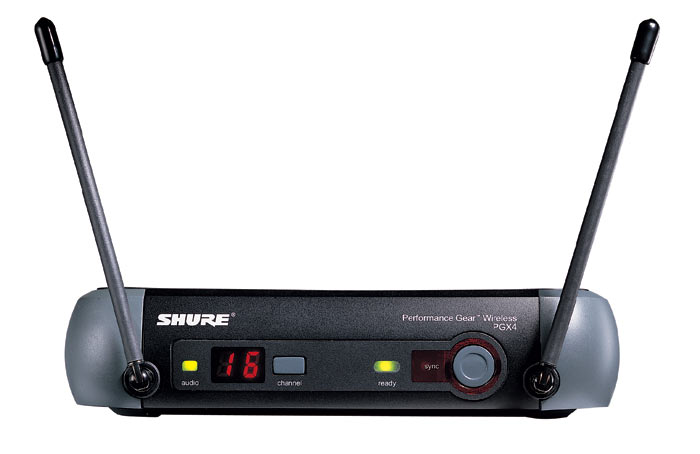

Shure PGX4 Diversity Receiver

Shure PGX4
G&G Price: $160
Diversity Receiver with PS20 Power Supply and 1/4 Wave Antennas
List Price: $270

Description:

Shures PGX4 receiver makes wireless setup a snap. With features like Automatic Frequency Selection and Automatic Transmitter Setup, the PGX4 offers the best in wireless to performers on the go.

Performance Gear Wireless Systems feature Shure's patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

Features:

Automatic Transmitter Setup
Automatic Frequency Selection
90 Selectable frequencies across 18 MHz bandwidth
1/4 wave antennas
Microprocessor- controlled diversity
Channel display LED
XLR and 1/4" outputs

Specifications:

Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)
Weight: 327 g (11.5 oz.)
Housing: ABS
Audio Output Level(Ref. +/– 33 kHz deviation with 1 kHz tone):
XLR connector (into 600Ω load): –19 dBV
1/4 inch connector (into 3000Ω load): –5 dBV
Output Impedance:
XLR connector: 200Ω
1/4 inch connector: 1kΩ
XLR output Impedance balanced:
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Sensitivity: –105 dBm for 12 dB SINAD, typical
Image Rejection: >70 dB, typical
Power Requirements: 12–18 Vdc at 150 mA, supplied by external power supply
