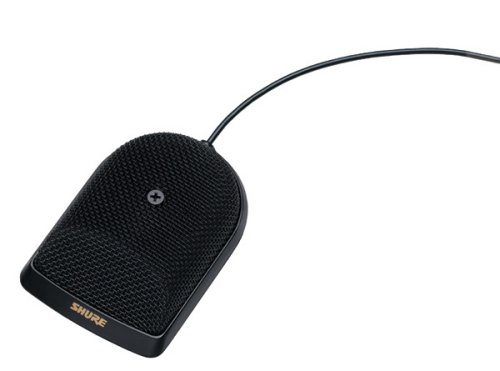

Shure EZB
Installed Sound Microphone

Shure EZB/C G&G Price: $111 Miniature Cardioid Condenser Boundry Microphone, Black List Price: $188

Shure EZB/O G&G Price: $100 Miniature Omnidirectional Condenser Boundry Microphone, Black List Price: $168

Description:

The Easyflex® line of miniature condenser microphones are the perfect choice for all types of low profile applications, where quality, value and budget are primary considerations. The boundary condenser microphones feature either a cardioid or omnidirectional polar pattern, and are available with a charcoal gray finish for unobtrusive placement in most surroundings. Each Easyflex boundary microphone ships with an attached 12 foot cable with in-line preamplifier, and features recessed mounting holes for ease of installation. Like all Shure products, the Easyflex line is extensively and rigorously tested for quality in operation and performance in real-life environments to be reliable and consistent in performance. For ease of your sound reinforcement requirements in auditoriums, AV applications, boardrooms, houses of worship and schools, look no further than the wide frequency range and high sensitivity of the Easyflex family for solid performance at an affordable price.

Features:

Flat frequency response across the vocal range for uncolored sound. Sleek, low-profile design for unobtrusive appearance. In-line preamp reduces visible size of microphone Available in either cardiod or omnidirectional models

Specifications:

Frequency Response: 50 to 17,000 Hz Polar Pattern: Cardioid or Omnidirectional Output Impedance (at 1 kHz): Rated at 150 ohms (170 ohms actual) Open Circuit Sensitivity(at 1 kHz, ref. 1 V/Pascal*): Cardioid: –39.0 dB (11.2 mV) Omni: –34.0 dB (20.0 mV) *1 Pascal = 94 dB SPL Maximum SPL(1 kHz at 1% THD, 1 k ohms load): Cardioid: 122.5 dB Omni: 117.5 dB Maximum Equivalent Output Noise(A-weighted at 1k ohms load): Cardioid: 23.0 dB Omni: 17.5 dB Signal to Noise Ratio(referenced to 94 dB SPL): Cardioid: 71.0 dB Omni: 76.5 dB Dynamic Range (at 1 k ohms Load): Cardioid: 99.5 dB Omni: 100.0 dB Common Mode Rejection: 45 dB minimum Preamplifier Output Clipping Level(1 kHz at 1% THD, 1 k ohms load): –12.0 dBV (0.25 V) Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector. Power Requirements: 11 to 52 Vdc phantom, 2.0 mA Environmental Requirements: Operating Temperature Range: –18° C to 57° C (0° F to 135° F) Relative Humidity: 0 to 95% Dimensions: 2–15/16” L x 2–1/16 W x 17/32” H Weight: 1lb
