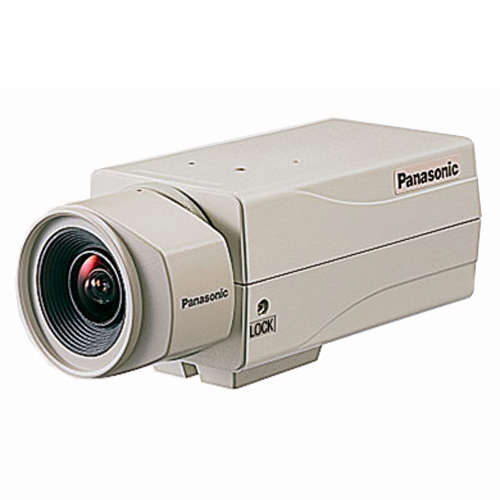

Panasonic WV-CP242TP Color Camera

Panasonic WV-CP242TP G&G Price: $240 Color Camera and UTP transceiver List Price: $300

Features:

The WV-CP240 Series DSP (Digital Signal Processing) cameras feature high resolution and sensitivity, advanced image adjustment functions, and flexible systems configuration. By employing a 1/3-type CCD (380,000 pixels), the WV-CP240 series achieves a horizontal resolution of 480 lines, and a signal-to-noise ratio of 50dbB. Minimum illumination is 2 lux (0.2 fx) when used with a F1.4 lens and 0.6 lux (0.06 fc) when used with a F0.75 lens. The camera has various image adjustment functions such as Backlight Compensation (BLC), Aperture Correction, and Auto Tracing White Balance (ATW). This allows the cameras to produce natural looking images even in poor lighting conditions. The Panasonic WV-CP240 Series is ideal for CCTV surveillance applications. Installation will now be easier and more economical with the compact UTP transceiver. Take advantage of CAT 5 cable runs in new and existing infrastructures. With the passive transceiver you can receive quality video with over 1,000 feet of UTP. No power is required and it features built-in surge protection. 1/3"-type CCD pick-up element with 768 (H) x 494 (V) pixels 480 lines of horizontal resolution Digital Signal Processing (DSP) minimizes aliasing when viewing patterned objects Outstanding 50dB signal-to-noise ratio VD2 sync capability with Panasonic system products Minimum scene illumination of 2 lx at F1.4 and 0.6 lux at F0.75

Specifications:

Chip Size 1/3" Type Color Mechanism Fixed Connectivity Analog Resolution 480 lines (horizontal) Minimum Illumination 2.0 lux (0.2 fc) at F1.4; 0.6 lux (0.06 fc) at F0.75 Signal to Noise Ratio 50 db Power 12V DC Dimensions (H x W x D) 2.5625'' x 2.625'' x 4.8125'' Weight .73 lbs
