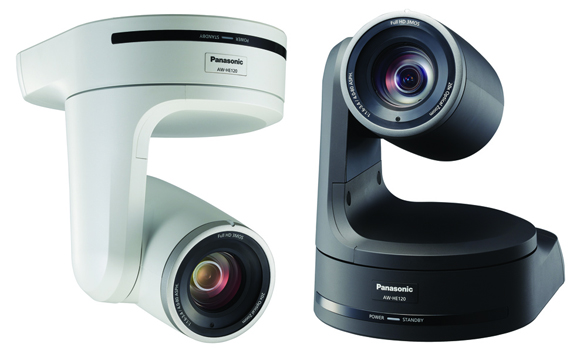

Panasonic AW-HE120
HD Pan/Tilt Camera

Ideally suited for such demanding applications as sports, staging, House of Worship, news and government video, the HE120 is equipped with the same high-performance sensors and digital signal processing used in Panasonic broadcast camcorders such as the AG-HPX370. With a 1000 TV lines of resolution and a 60dB signal-to-noise ratio, the HE120 sets a new performance standard for integrated PTZ cameras, with advanced features as 16-axis color correction and Panasonic’s exclusive DRS (Dynamic Range Stretch). HD-SD/SDI, HDMI, Analog Component, and SD Composite outputs are all built-in, for out-of-the-box ease of deployment.

The camera's 20X optical zoom lens covers an extended range of shooting situations, from small room wide-angle to back of the house ultra-telephoto, with 35mm equivalents of 32.1 mm at wide-angle to 642.5 mm at telephoto. Remote controlled neutral density filters, DRS, shutter, and other functions enable optimal exposure for a wide range of shooting conditions. The camera’s fast, quiet integrated pan-tilt head covers a wide range of motion, with a pan range of ±175° and a tilt of -30° to 210°.

The HE120 supports both RS-422 serial control and IP control with dedicated RJ-45 connectors. It is compatible with current Panasonic controllers such as the AW-RP655 and AW-HS50, and with many serial and IP control systems from Crestron, AMX and other vendors. The HE120 supports both direct and Web-based IP remote control, so the camera can be securely operated and adjusted remotely from an ordinary browser-equipped PC—anywhere in the world.

• HD/SD-SDI and HDMI outputs are standard as well as analog component and SD composite.
• Supports international HD and SD video signal formats including: 1080/59.94p (HDMI only), 1080/59.94i, 720/59.94p, 480/59.94p (HDMI only), 480/59.94i, 1080/50p (HDMI only), 1080/50i, 720/50p, 575/50p (HDMI only) and 576/50i.
• Weighs just 6.6lbs and consumes just 21 Watts at 12V DC (power supply included)
• Available in two colors (HE120W: pearl white; and HE120K: black matte metallic) to suit a range of installation venues.
• Built-in remote-controllable, four-position ND filter (clear, 1/4, 1/16, 1/64) facilitates flexible exposure control in brightly lit shooting situations
• Newly-developed pan-tilt mechanism combines a high level of responsiveness with static precision. A low NC (Noise Criteria) level of 35 is maintained for shooting in noise sensitive environments such as jazz clubs and boardrooms.
• Up to 100 preset positions and camera settings are stored in the camera, perfect for the most demanding large venue installation
• A twist-lock ceiling mount is included as a standard accessory, and the HE120 also equipped with a 1/4-20 tripod mounting screw receptacle and a safety lanyard for use with many tripod mounting and grip systems.

The AW-HE120 comes with Panasonic's standard warranty of one year parts and labor.
