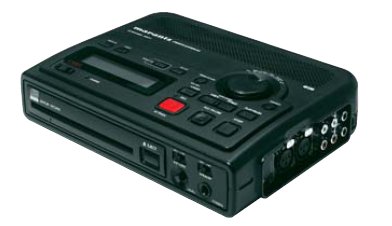

Marantz CDR310
Portable MP3/AIFF/CD-R/RW Recorder

Description:
Marantz is taking CD recording to the next level with the CDR310, the first truly portable, affordable CD-based field recorder. Whether for documentation, duplication, or archiving, audio CDs promote confidence through their permanence and universality. While digital recording and CD burning have been commonplace for several years, existing hardware has lacked the go-anywhere flexibility and ease of use that users have come to expect in the digital age. The CDR310 has changed all that.

The CDR310 frees the user from the constraints of system-based solutions, delivering the same great recording quality in portable field capture as it does in permanent installations. With an on-board hard drive, the compact, lightweight CDR310 records high quality 16-bit audio in CD-DA, WAV, AIFF or MP3 file formats, then can burn a CD instantly, on location. Best of all, the CDR310 has battery operation capability so you can take it anywhere

Features:
  • Digital hard disc recording in a variety of formats
  • Instant CD burning
  • Convenience and portability with one-touch record operation
  • Flexible record modes – Pre-Record, Background Record, Silent Skip, Adjustable Auto Track
  • Professional hardware from input to output

Specifications:

    Digital Audio System

  • System: CD Recorder
  • Temporary Recording Media: 1-inch HDD (4 GByte)
  • Writeable CD Disc Media: CD-R (CD-DA, ISO9660)
  • Channels: 2 (Stereo), 1 (Mono)
  • Recording Audio Format
    • MP3 (.mp3) MPEG Audio Layer III compression
    • WAVE (.wav) 16 Bit Linear PCM
    • AIFF (.aif) 16 Bit Linear PCM
    • CD-DA (.cda) 16 Bit Linear PCM
  • MP3 Recording Bit Rate: 128 kbps / Stereo, 64 kbps / Mono
  • Sampling Frequency: 44.1 kHz
  • Maximum Recording Time
    • MP3: 55 hrs (Stereo), 110 hrs (Mono)
    • PCM: 5 hrs (Stereo), 10 hrs (Mono)

    Audio Performance

  • Frequency Response 40 ~ 20,000 Hz (-1dB)
  • Signal-to-noise Ratio (IEC-A, PCM) LINE 92 dB, MIC 66 dB
  • Total Harmonic Distortion
    • (0dB, 1kHz, PCM) LINE 0.03%, MIC 0.08% Dynamic Range (0dB, 1kHz, PCM) 88 dB

    Inputs

  • MIC IN L/R
    • Type XLR (1:GND, 2:HOT, 3:COLD)
    • Input Sensitivity 1 mVrms / 6.5k ohms
    • Maximum Input Level 70 mVrms (20dB pad off)
    • Phantom Power DC +48V, 5 mA
  • LINE IN L/R
    • Type RCA Jack
    • Input Sensitivity 500 mVrms / 20k ohms
  • DIGITAL IN
  • Type RCA Jack, Coaxial
  • Input Impedance 75 ohms
  • Standard Input Level 0.5 Vp-p
  • Sampling Frequency 44.1 kHz
  • Format S/PDIF (IEC958 Type II)
  • REMOTE 1 (Contact Closure) 1/10” (2.5mm) T-R-S mini jack
  • REMOTE 2 (MIC Remote RC600PMD) 1/8” (3.5mm) T-R-R-S mini jack

    Outputs

  • LINE OUT L/R
    • Type RCA Jack
    • Standard Output Level 2 Vrms max. / 2k ohms
  • DIGITAL OUT
    • Type RCA Jack, Coaxial
    • Output Impedance 75 ohms
    • Standard Output Level 0.5 Vp-p
    • Sampling Frequency 44.1 kHz
    • Format S/PDIF (IEC958 Type II)
    • HEADPHONES
    • Type 1/4” (6.5mm) Phone Jack
    • Output Power 8 mW / 32 ohms
  • SPEAKER
    • Output Power 90 mW / 4 ohms

    General

  • DC Power (DA670PMD Only) DC 15V
  • Battery 8 x AA, Alkaline / Ni-Cd / Ni-MH
  • Power Consumption 5 W, DC (Recording / Playback) 0.3 W, DC (Standby)
  • Battery Life (Alkaline) 4 hours (Typical)

    Dimensions

  • Width 9.7” (247 mm)
  • Height 2.4” (60 mm)
  • Depth 7.2” (184 mm)
  • Weight (w/o Batteries) 2 lbs. 14 oz (1.3 kg)

    Included Accessories

  • AC Adapter (DA670PMD) 1
  • 8 x AA Battery Holder 1
  • User’s Guide 1

    Optional Accessories

  • Ni-Cd Battery Pack RB1100
  • Ni-MH Battery Pack RB1651
  • MIC Remote RC600PMD
  • Carrying Case PRC310
  • Attache Carrying Case CA200
  •
