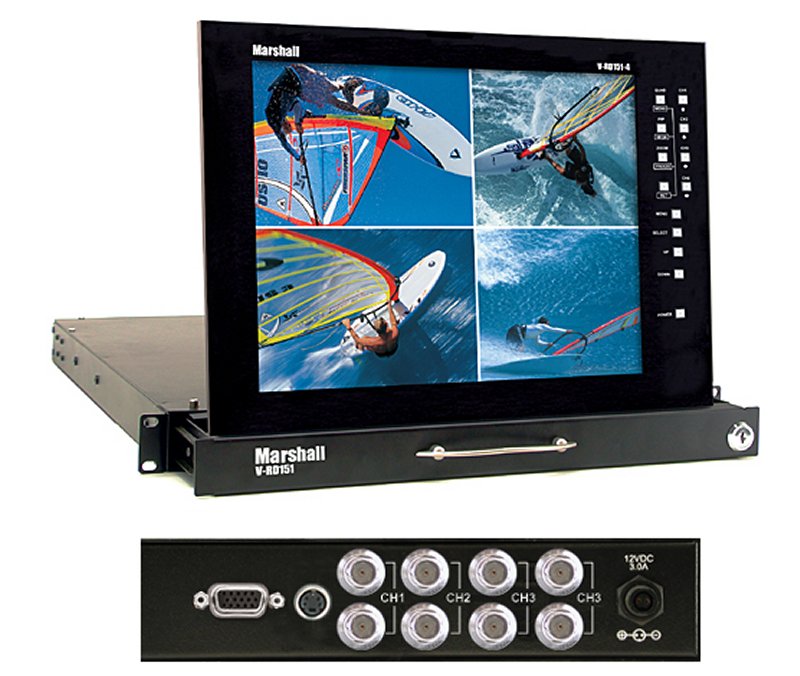

Marshall V-RD151-4
15" Quad Screen LCD
In Rack Mountable Pull-out Drawer



Marshall V-RD151-4 G&G Price: $2,145 15" Rack Mountable LCD List Price: $2,699



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

The V-RD151-4 features a Quad Split and Sequential Switcher for composite video signals. The 1024 × 768 display produces a high resolution image. For added flexibility, this unit can accomodate composite video, Y/C (S-video)or XGA computer signals for monitoring (S-video and XGA inputs are only available in full screen mpde). All connections are accessed from the rear of the drawer enclosure and include loop through for each signal. When the display is closed into the drawer, a keyed lock is provided for secure transport. Power supply and owners manual are included.

Features:

High Resolution 1024 × 768 pixels, 786,432 total Bright 250 candle luminance 4 Video inputs with 75W termination and active loop through feature Ultra-compact design fits in EIA standard rack 1U high Built-in Quad Splitter/Sequential Switcher Available in NTSC or PAL format Key lock for secure transportation

Specifications:

Display (Viewing Area): 15.1" (11.69" × 9.12") Resolution (Pixels): 1024 H × 768 V Dot Pitch: 0.297mm × 0.302mm Brightness (in cd/m²): 250 cd/m² System: NTSC - V-RD151-4 PAL - V-RD151-4-PAL Inputs: 1 S-Video, 4 Composite, 1 XGA Dimensions: 19.12"W × 1.75 "H × 22"D Approx. Weight: 24 lbs Power Consumption: 12 VDC, 2.5 Amps
