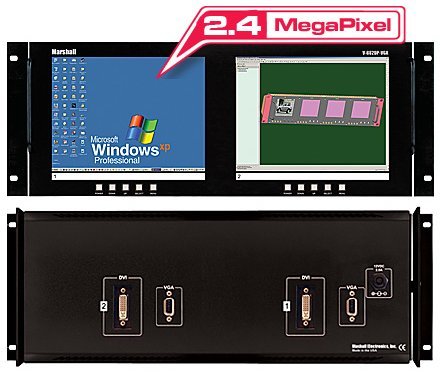

Marshall V-R842DP-XGA Rack Mount Panel



Marshall V-R842DP-XGA G&G Price: $2,069 Dual 8.4" XGA/DVI LCD rack mounted monitor List Price: $2,499

Description:

Our dual screen V-R842DP-XGA is a unique solution for Professional IT, A/V and Multimedia applications. Ready to rack mount in 4RU, the monitor set saves valuable rack space, is low weight and has low power consumption. Since it is only 1.65-inches deep, this model is perfect for use in any EIA 19-inch relay or equipment rack. The V-R842DP-XGA features our Award Wining Digital TFT-MegapixelT system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280x1024) and DVI-I RGB signals are digitized using an advanced 10 bit process, and all accepted resolutions are scaled to fit on each screen in the highest resolution using our proprietary program and state of the art LSI.

Features:

High Definition Resolution 8.4-inch 2.4 MegaPixel screen with 1024 x 768 resolution 100% digital processing 5 Year /50,000 hour backlight life 10 bit Analog to Digital conversion High resolution scaling Wide viewing radius - 170° 400 (cd/m2) luminance 400:1 ratio of contrast between black and white luminance values with response rates less than 25 ms results in excellent quality for moving images Response rates less than 25 ms Direct access for all adjustments Standard inputs: PC up to SXGA (1280x1024) DVI-D Ready to Rackmount out of the box

Specifications:

Display (Viewing Area): 8.4" (6.14"H x 3.27"V) (170.496mm x 127.872mm) Resolution (Pixels): 1024H×RGB x768V (2.4 million RGB pixels) (16.7 Million colors) Dot Pitch / Pixel Pitch: 0.0555 mm (W) x 0.1665 (H) / 0.1665 Square pixel Brightness (in cd/m²): 400 cd/m² Contrast Ratio: 400:1 Inputs per panel: 1 PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D Dimensions: 19.12" w x 6.875" h x 1.65" d (485.7mm x 174.6mm x 41.3mm) 4RU Approx. Weight: 7 lbs (3.2 kg) Power Consumption: App. 36Watt (5Amp 12 VDC Class 2 power supply included)
