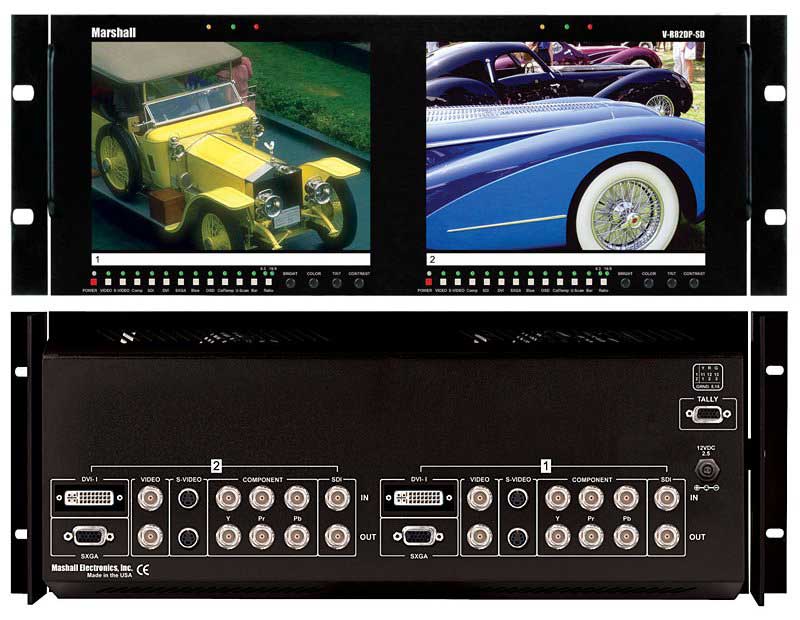

Marshall V-R82DP-SD Rack Mount Panel



Marshall V-R82DP-SD G&G Price: $2,935 Dual 8.4" LCD Rack Mount Panel all inputs with SDI List Price: $3,699

`



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

Our V-R82DP-SD is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. Ready to rack mount in 4RU, this model saves valuable rack space, weight and power when compared to CRT products. The V-R82DP-SD includes our Award Wining Digital TFT-MegapixelT system plus Hyper Process motion compensation for interlace images. Inputs are provided for SDI (Serial Digital Interface), SD and HD Component Analog, Composite, Y/C, DVI Analog or Digital from HDMI with HDCP, plus PC up to SXGA resolution. Analog signals are digitized using an advanced 10 bit process, and all screen formats are scaled to fit on screen in the highest resolution using our proprietary program and our new LSI technology with Match Color Conversion to emulate SMPTE-C phosphor of a CRT.

Features:

High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels 100% digital processing Hyper Process for Interlace Images Match Color Conversion 5 Year /50,000 hour backlight life 10 bit Analog to Digital conversion Adjustable color temperature Wide viewing radius - 130° 500 cd/m2 luminance 500:1 contrast ratio Response rates less than 25 ms 4:3 and 16:9 screen aspect ratios Direct access for all adjustments Three color tally indicators On Screen Display (OSD) Blue "Gun" for color adjustment Adjustment Settings Memory Underscan Standard inputs for each screen: SDI (ITU-BR601/SMPTE-259M) Component analog (YCrCb) (YPrPb) for all HD and SD formats Composite Video auto PAL/NTSC recognition S-Video (Y/C) DVI (Analog and Digital with HDMI/HDCP) PC up to SXGA (1280 x 1024) Loop through of all video input signals Ready to Rackmount out of the box

Specifications:

Display (Viewing Area): 8.4 Inch diagonal (170.4mm W x 127.8mm H) Resolution (Pixels): 800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors) Dot Pitch: .213mm square pixel Brightness (in cd/m²): 500 cd/m² Contrast Ratio: 500:1 System: NTSC/PAL auto rec Inputs per panel (total): 1 (2) SDI 1 (2) Composite 1 (2) S-Video (Y/C) 1 (2) Component 1 (2) DVI 1 (2) PC-SXGA (1280 x 1024) Dimensions: 19.12" w x 6.875" h x 1.5" d (485.7mm x 174.6mm x 38.1mm) 4RU Approx. Weight: 5.4 lbs (2.4 kg) Power Consumption: App. 36Watt (5Amp 12 VDC Class 2 power supply included)
