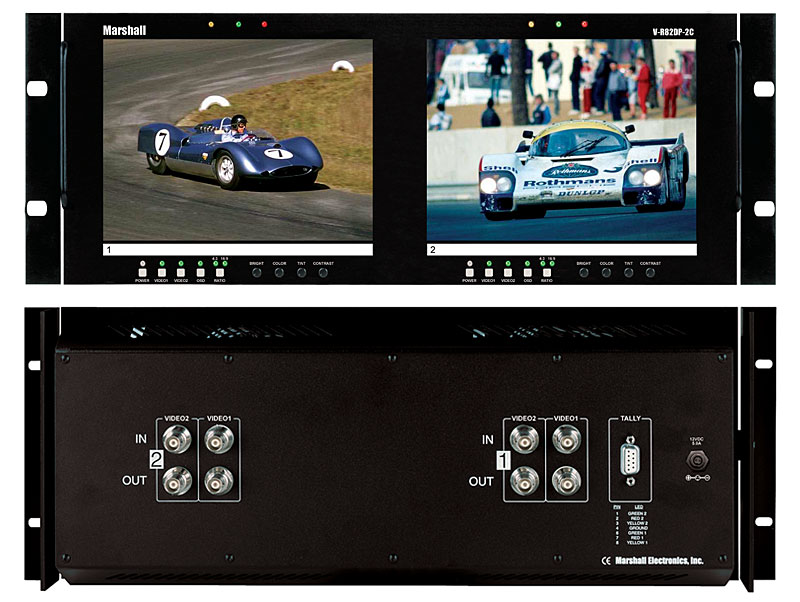

Marshall V-R82DP-2C Rack Mount Panel



Marshall V-R82DP-2C G&G Price: $1,660 Dual 8.4" LCD Rack Mount Panel with 2 Composite Video inputs per panel List Price: $1,999



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

Our TFT-MegaPixel V-R82DP-2C is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. Ready to rack mount in 4 ru, this model saves valuable rack space, in addition to its low weight and power consumption when compared to similar CRT products. Analog signals are digitized using an advanced 10 bit process, and all screen formats are scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI.

Features:

High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels 100% digital processing 5 Year /50,000 hour backlight life 10 bit Analog to Digital conversion High resolution scaling Wide viewing radius - 130° horizontal and vertical provides superior visibility. 500 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions 500:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images 4:3 and 16:9 screen aspect ratios for DTV applications Direct access for all adjustments Standard inputs: 2 Composite Video per screen with automatic PAL/NTSC standard recognition Loop through of all input signals Easy to see three color tally indicators On Screen Display (OSD) Blue Screen for color adjustment Adjustment Settings Memory Ready to Rackmount out of the box

Specifications:

Display (Viewing Area): 8.4 Inch diagonal (170.4mm W x 127.8mm H) Resolution (Pixels): 800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors) Dot Pitch: .213mm square pixel Brightness (in cd/m²): 500 cd/m² Contrast Ratio: 500:1 System: NTSC/PAL auto rec Inputs per panel (total): 2 (4) Composite per screen Dimensions: 19.12" w x 6.875" h x 1.5" d (485.7mm x 174.6mm x 38.1mm) Approx. Weight: 5.4 lbs (2.4 kg) Power Consumption: App. 36Watt (5Amp 12 VDC Class 2 power supply included)
