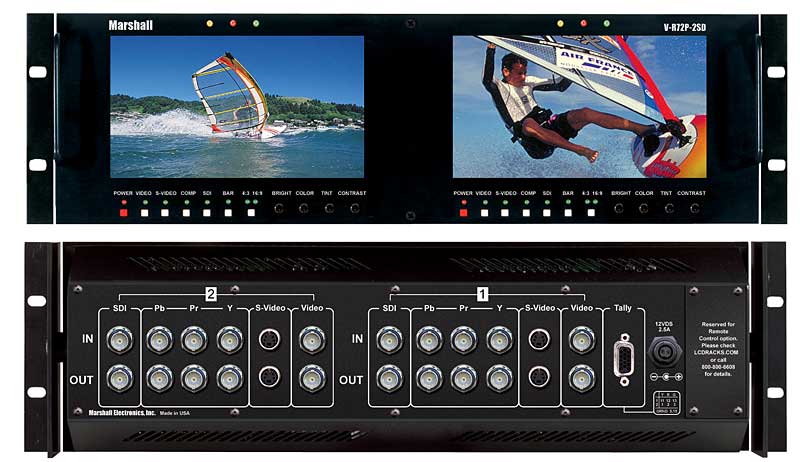

Marshall V-R72P-2SD Rack Mount Panel



Marshall V-R72P-2SD G&G Price: $2,145 Dual 7" Wide Screen LCD Rack Mount Panel - NTSC SDI Input List Price: $2,899



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

The Rack mounted and tiltable V-R72P-2SD represents leading edge technology in LCD/TFT imaging for broadcast and professional video applications. The V-R72P-2SD has the highest resolution TFT screens and completely digital signal processing. All SMPTE-259M/274M video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using state of the art LSIs that incorporate 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.

Features:

High Resolution 7-inch wide screen 800 × 480 Dots with 1.2 million pixels 100% digital processing Analog signals converted to 10 bit digital High resolution scaling of all images Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen S380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats Works with all analog SMPTE/ITU production formats and frame rates Standard Multiformat inputs: SDI (ITU-R BT601 format) Component Analog SD/SD Composite Video PAL/NTSC Y/C (S-Video) Loop through of all inputs signalsk Easy to see three color tally indicators Built in Color Bars Adjustment Settings Memory

Specifications:

Display (Viewing Area): 7" (6.14" × 3.27") Resolution (Pixels): 800 H × RGB × 480 V Dot Pitch: 0.065mm × 0.175mm Brightness (in cd/m²): 380 cd/m² System: NTSC/PAL auto rec Inputs per panel (total): 1(2) Composite, 1(2) S-Video, 1(2) Component HD/SD, 1(2) SDI Dimensions: 19.12"W × 5.14"H × 2.5"D Approx. Weight: 5 lbs Power Consumption: 12 VDC, 3.0 Amps
