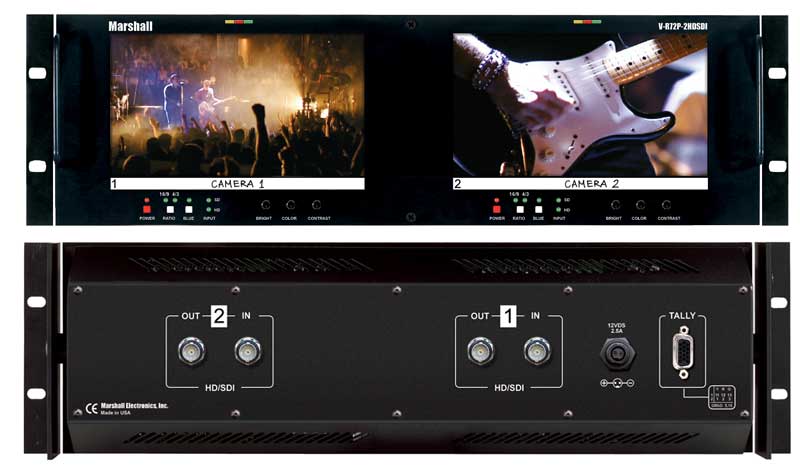

Marshall V-R72P-2HDSDI Rack Mount Panel



Marshall V-R72P-2HDSDI G&G Price: $2,370 Dual Screen Multiformat 1.2 Megapixel HD/SD LCD Monitor Set w/ SDI input List Price: $2,999



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

The Rack mounted and tiltable V-R72P-2HDSDI represents leading edge technology in LCD imaging for broadcast and professional video applications featuring High Resolution, 1.2 megapixel, TFT screens with completely digital signal processing. All SMPTE/ITU serial digital video standards and frame rates are accepted and displayed on each screen of this model. All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Each screen is calibrated to SMPTE standards for gamma and color temperature.

Features:

Two 7-inch 1.2 MegaPixel wide screens 100% digital processing High resolution scaling of all images Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen. 380 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats Works with all SMPTE/ITU SDI/HDSDI production formats and frame rates Blue Gun for color adjustment SD/HD digital signal indicators Standard Digital inputs: HDSDI (all formats & frame rates) 1080-24P, 25P, 30P, 50i, 60i 720-24P, 25P, 30P, 50P, 60P SDI (ITU-R BT601 format-525i, 625i) Re-clocked and shaped output of all input signals Easy to see three color tally indicators Ready to mount in 19" rack out of the box Easy to see three color tally indicators Ready to mount in 19" rack out of the box

Specifications:

Number of Screens: 2 Display (Viewing Area): 7" (6.14"H × 3.27"V) (156.0mm x 83.28mm) Resolution ( RGB Dots): 800H x RGB x 480V (1.2 million pixels) Viewing Angles: 130° H x 120° V Dot Pitch: 0.065mm (W) x 0.175mm (H) Contrast Ratio: 400:1 Pixel Response: <30ms Brightness: 380 cd/m² System: All HDSDI and SDI Component Digital Signals
