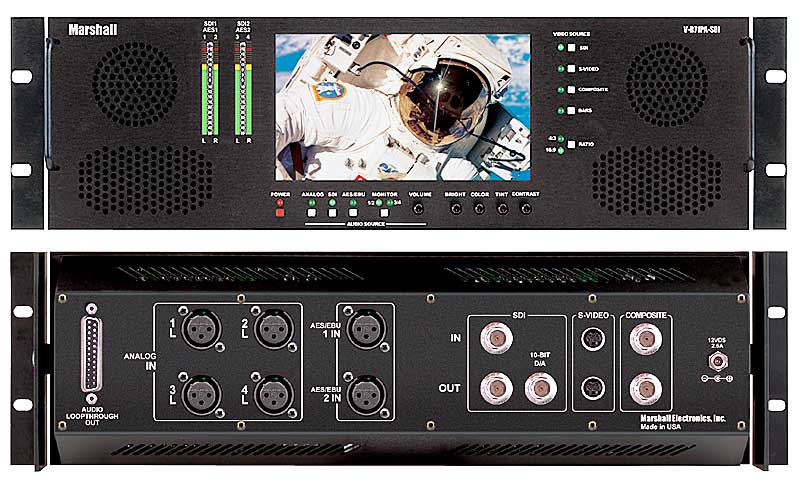

Marshall V-R71PA-SDI Rack Mount Panel



Marshall V-R71PA-SDI G&G Price: $2,529 7" Wide Screen Rack Mount Panel with SDI, YPrPb & Composite List Price: $3,299



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

At just 3 rack spaces high, the V-R71PA-SDI is loaded with features and flexibility. This unit accepts SDI, S-Video, and composite video sources with loop through in a 16:9 or 4:3 ratio. Two stereo pairs of audio may be inputted via 1 SDI embedded, or 2 AES/EBU, or 4 balanced XLR inputs. Simultaneous visual monitoring of up to 4 audio channels is obtained using a high-resolution LED bar display, while one selectable pair of audio is monitored via 2-way full range stereo speakers. Using a new revolutionary Class D all digital power amplifier, the V-R71PA-SDI delivers 5 watts per channel of high fidelity audio, but produces virtually zero heat. Other features include NTSC/PAL auto recognition (Composite and S-Video), a color bar generator, controls for volume, color, tint, contrast, and brightness. The unit includes power supply and owners manual.

Features:

High Resolution 1440 × 234 pixels, 336,960 total Ultra bright 400 candle luminance Video inputs include SDI (SMPTE 259M), S-video and Composite Switchable 4:3 and 16:9 ratios Audio inputs include SDI embedded, AES/EBU digital (up to 24-bit resolution) and Balanced Analog Revolutionary Class D digital audio amplifier offers 5 watts RMS per channel Color, tint, brightness and contrast controls Built-in memory saves current setup when unit is powered down Built-in Color Bar Generator Unique 180 degree tilt adjustment while mounted in rack

Specifications:

Display (Viewing Area): 7" (6.07" × 3.41") Resolution (Pixels): 1440 H × 234 V Dot Pitch: 0.108mm × 0.375mm Brightness (in cd/m²): 400 cd/m² System: NTSC/PAL auto recognition Inputs: VIDEO - 1 S-Video, 1 Composite, 1 SDI AUDIO - 4 SDI Embedded, 2 AES/EBU Stereo Pair, 4 Balanced Analog XLR Dimensions: 19.12"W × 5.14"H × 2.65"D Approx. Weight: 5 lbs Power Consumption: 12 VDC, 4.0 Amps
