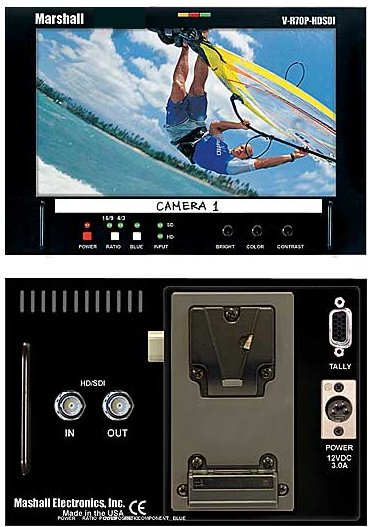

Marshall V-R70P-HDSDI LCD Monitor



Marshall V-R70P-HDSDI G&G Price: $1,580 HD 7" Wide Screen LCD Monitor with SDI Input List Price: $1,999



Marshall V-R70P-HDSDI-AB G&G Price: $1,660 HD 7" Wide Screen LCD Monitor with SDI Input and Anton Bauer Battery Mount List Price: $1,999



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

The V-R70P-HDSDI represents leading edge technology in LCD imaging for broadcast and Professional video applications featuring our High Resolution, TFT-Megapixelä screen with 1.2 million pixels and cpmpletely digital signal processing. All SMPTE/ITU serial digital video standards and frame rates are accepted and displayed on this model. All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4 ´ 4 pixel interpolations with precision Gamma correction to produce the best images available. Each screen is calibrated to SMPTE standards for gamma and color temperature.)

Features:

Durable metal enclosure "V" Mount battery adapter included Runs 4 to 6 hours on optional 50WH battery High Resolution 7-inch wide screen 800´480 Dots with 1.2 million pixels Optical Grade polycarbonate screen cover with Antireflective/Antiglare coating 100% digital processing Analog signals converted to 10 bit digital High resolution scaling of all images Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen 380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images 4:3 and 16:9 screen aspect ratios Automatic NTSC/PAL format detection Standard inputs: HDSDI/SDI (Smpte-292M/259M) 4 Pin XLR D.C. power jack Easy to see three color tally indicators Built in Color Bars Blue Screen for color adjustment Adjustment Settings Memory Includes ¼-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available) Includes universal voltage Class-2 power supply Fits into Tektronix® WFM7F05/1700F05 rack adapter Optional rack mount kit

Specifications:

Display (Viewing Area): 7" (6.14" × 3.27") Resolution (Pixels): 800 H × RGB × 480 V Dot Pitch: 0.065mm × 0.175mm Brightness (in cd/m²): 380 cd/m² System: NTSC/PAL auto recognition Inputs: 1 HDSDI/SDI Dimensions: 7.6"W × 5.16"H × 2.16"D Approx. Weight: 1.8 lbs Power Consumption: 10-17 VDC, 600 mA
