Marshall V-R63P-SDI Rack Mount Panel



Marshall V-R63P-SDI G&G Price: $2,935 Triple 5.8" Rack Mounted LCD Panel with 10-bit SDI Input List Price: $3,699



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

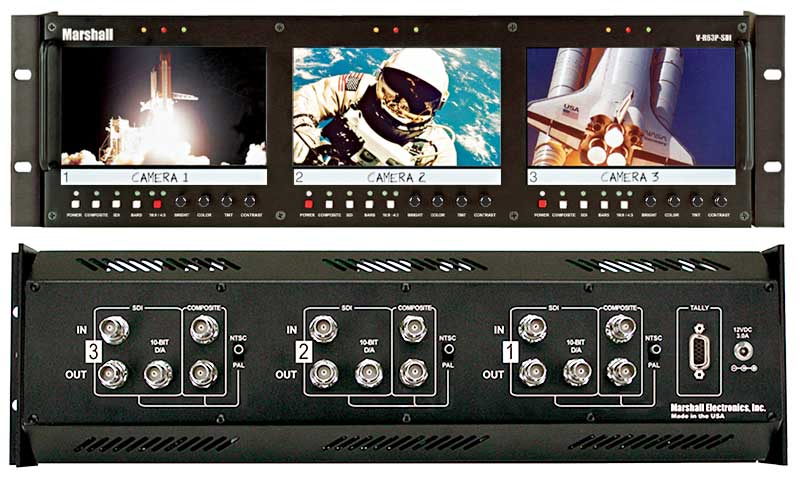

The V-R63P-SDI is a rack mountable unit that has three independently controlled 5.8" active matrix LCD panels with active loop through feature. These 16:9 high-resolution panels have a pixel count of 1200 x 234, and are rated at a very bright 350 candle luminance. Each panel has an SDI and a composite video input with a NTSC/PAL switch on the back. Each of the three screens has a built-in color bar generator, controls for color, tint, contrast, and brightness, and selectable aspect ratio of 16:9 or 4:3. A built-in 3 color tally system is also provided for each screen. The unit includes power supply, manual and fits into any standard EIA 19" rack, at only 3U high.

Features:

High Resolution LCD panel, 1200 × 234 pixels, 280,800 total Ultra bright 350 candle luminance Switchable 4:3 and 16:9 ratios Two inputs per monitor: Composite Video and SDI (SMPTE 259M) 3 High Resolution 10-bit SDI to composite video converters (one per channel) NTSC/PAL switchable via switch on rear of the unit SDI active loop through has active clock recovery with automatic 75 W termination Three color, self-powered tally system provided for each panel Individual color, tint, brightness and contrast controls for each panel Built-in memory saves current setup when unit is powered down Built-in Color Bar Generator Unique 100 degree tilt adjustment while mounted in rack

Specifications:

Display (Viewing Area): 5.8" (5.01" × 2.83") Resolution (Pixels): 1200 H × 234 V Dot Pitch: 0.318mm × 0.307mm Brightness (in cd/m²): 350 cd/m² System: NTSC/PAL config. switch Inputs per panel (total): 1 (3) Composite 1 (3) SDI Dimensions: 19.125"W × 5.14"H × 2.5"D Approx. Weight: 5 lbs Power Consumption: 9 VDC, 3.0 Amps
