Marshall V-R563P-SDI Rack Mount Panel



Marshall V-R563P-SDI G&G Price: $2,145 Triple 5.6" LCD Rack Mount Panel with SDI Input List Price: $2,799



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-3.3	12VDC 3.3 Amp. power supply	$79.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

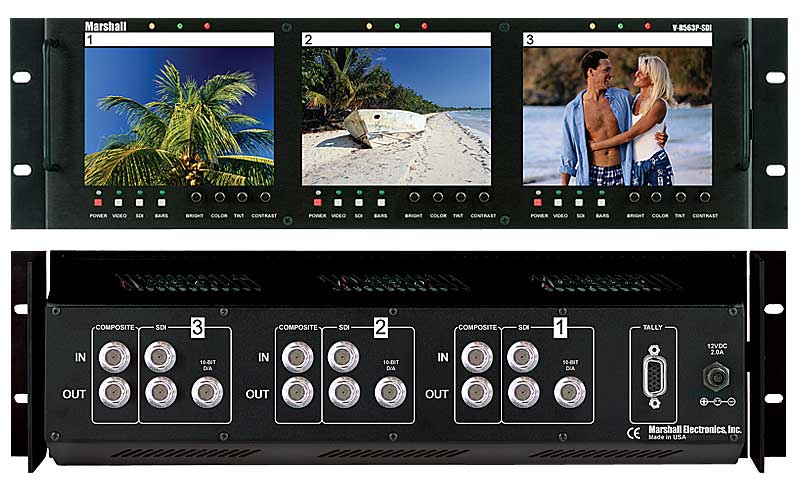

The V-R563P-SDI is a rack mounted unit that has three independently controlled 5.6" active matrix LCD panels. These 5.6" panels have 960 x 234 pixels producing a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19" rack, 3U high. Each screen has one composite video with active loop through and one SDI (SMTPE 259M) input with active loop through and active clock recovery with automatic 75? termination. Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. The unit includes power supply, manual and features auto recognition for NTSC or PAL.

Features:

High Resolution, 960 x 234 pixels, 224,640 total Ultra bright 350 candle luminance One Composite video input per monitor with active loop through and 75 Ohm termination One SDI (SMTPE 259M) Input per monitor with active loop through and active clock recovery with automatic 75Ohm termination Low power consumption and heat dissipation for mobile applications Individual color, tint, brightness and contrast controls for each panel Three color, self-powered tally system provided for each panel NTSC/PAL auto recognition Built-in Color Bar Generator Unique 180 degree tilt adjustment while mounted in rack

Specifications:

Display (Viewing Area): 5.6” (4.46" x 3.33") Resolution (Pixels): 960 H x 234 V Dot Pitch: 0.118 mm x 0.362 mm Brightness (in cd/m²): 350 cd/m² System: NTSC/PAL auto rec Inputs per panel (total): 1 (3) Composite 1 (3) SDI Dimensions: 19.125"W x 5.14"H x 2.5"D Approx. Weight: 5 lbs Power Consumption: 12VDC, 2.0 Amps
