Marshall V-R25P-SDI Rack Mount Panel



Marshall V-R25P-SDI G&G Price: $3,500 Ten 2.5" LCD Screen Rack Mount Panel with SDI Input List Price: $4,599



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

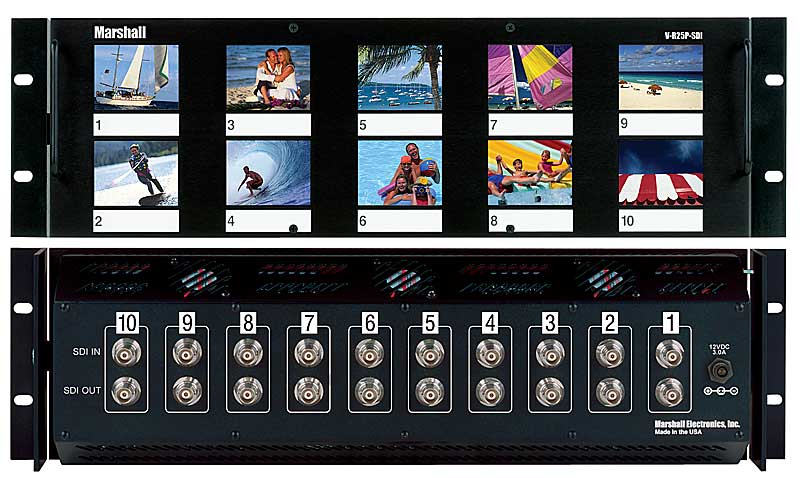

The V-R25P-SDI is a rack mountable unit that has ten 2.5" active matrix LCD panels with SDI input and active reclocked loop through capability. These 2.5" panels have 480 x 234 pixels producing a true high resolution image. This unit, as well as all Marshall rack mounted panels has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19" rack, 3U high. Each screen has NTSC/PAL auto-signal recognition. If there is no video signal present, a blue screen will appear. Unit is turned on and off by using the small toggle switch located on the side of the unit and is accessed by tilting the unit down. The unit includes power supply, instructions and dry erase marker for labeling screens.

Features:

High Resolution, 480 × 234 pixels, 112,320 total pixels Ten SDI Inputs with reclocked loop through feature Automatic NTSC/PAL Video Signal Detection, screen will turn blue with the absence of input signal Unique 180 degree tilt adjustment while mounted in rack Small and lightweight: 3U high, only 6.7cm deep and weighted 2.27kg Dry Erase Marker for EZ Identifying of screens is included

Specifications:

Display (Viewing Area): 2.5" (1.97" × 1.48") Resolution (Pixels): 480 H × 234 V Dot Pitch: 0.105mm × 0.16mm Brightness (in cd/m²): 250 cd/m² System: NTSC/PAL auto recognition Inputs per panel (total): 1(10) SDI with reclocked loop through Dimensions: 19.12"W × 5.14"H × 2.65"D Approx. Weight: 5 lbs Power Consumption: 12VDC, 5.0 Amps
