Marshall V-R191P-SDI Rack Mount Panel



Marshall V-R191P-SDI G&G Price: $3,050 19" LCD Rack Mountable Panel with SDI Input List Price: $3,995



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

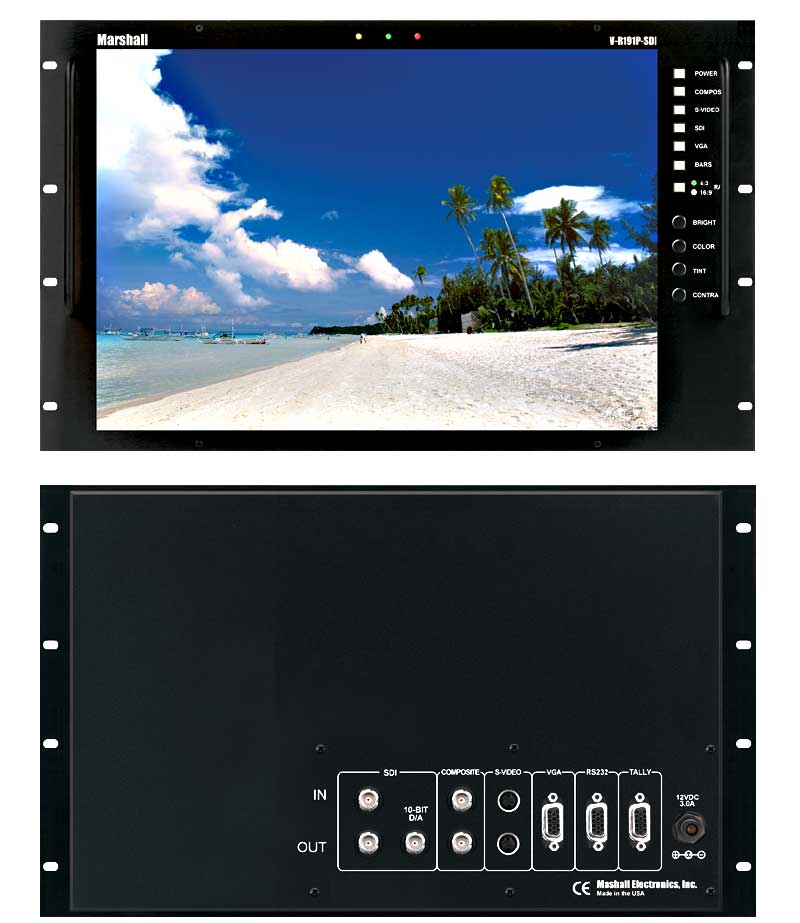

The V-R191P-SDI is a 19" high resolution LCD panel that is the perfect fit for your DTV Wide Screen monitor needs. The unit offers a flexible input configuration without the need of special adapters or control boxes, standard inputs and active loop through on each connection for SDI (ITU-R BT601), composite video and Y/C (S-Video). For computer graphic applications, this unit also has a scalable SVGA input. As an added feature, a 10-bit analog output is available when using an SDI signal. Adjustments are made using convenient front panel controls. The unit includes power supply and owners manual.

Features:

High Resolution, LCD panel, 1280 x 1024 pixels, 1,310,720 total 16.7 million colors CRT style viewing radius - 170° in any direction provides superior visibility when the viewer is not directly in front of the screen 250 candelas per square meter (cd/m2) luminance produces excellent image quality in varying light and viewing conditions 500:1 contrast ratio with response rates less than 20 ms results in excellent quality for moving images 4:3 and 16:9 screen aspect ratios for DTV operations Standard Multiformat inputs: composite, Y/C and SDI with active loop through plus VGA/XVGA input with automatic scaling When the SDI input signal is selected, a standard 10 bit composite output is provided using 12-bit Digital to Analog processing, potentially saving hundreds of dollars spent on a conversion product Convenient front panel controls with dedicated input and ratio selections and adjustments Three color, self-powered tally system provided for each panel

Specifications:

Display (Viewing Area): 19” (14.82" x 11.85") Resolution (Pixels): 1280 H x 1024 V Dot Pitch: 0.294 mm / RGB stripe Brightness (in cd/m²): 250 cd/m² System: NTSC/PAL auto recog. Inputs: 1 Composite BNC, 1 S-Video Mini Din, 1 SDI BNC, 1 SVGA HD-15 Dimensions: 19.12"W x 13.8"H x 2.5"D Approx. Weight: 14.6 lbs Power Consumption: 12 VDC, 3.0 Amps
