Marshall V-R171P-HDA Rack Mount Panel



Marshall V-R171P-HDA G&G Price: $2,370 17" Rack Mountable LCD Monitor List Price: $2,995



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

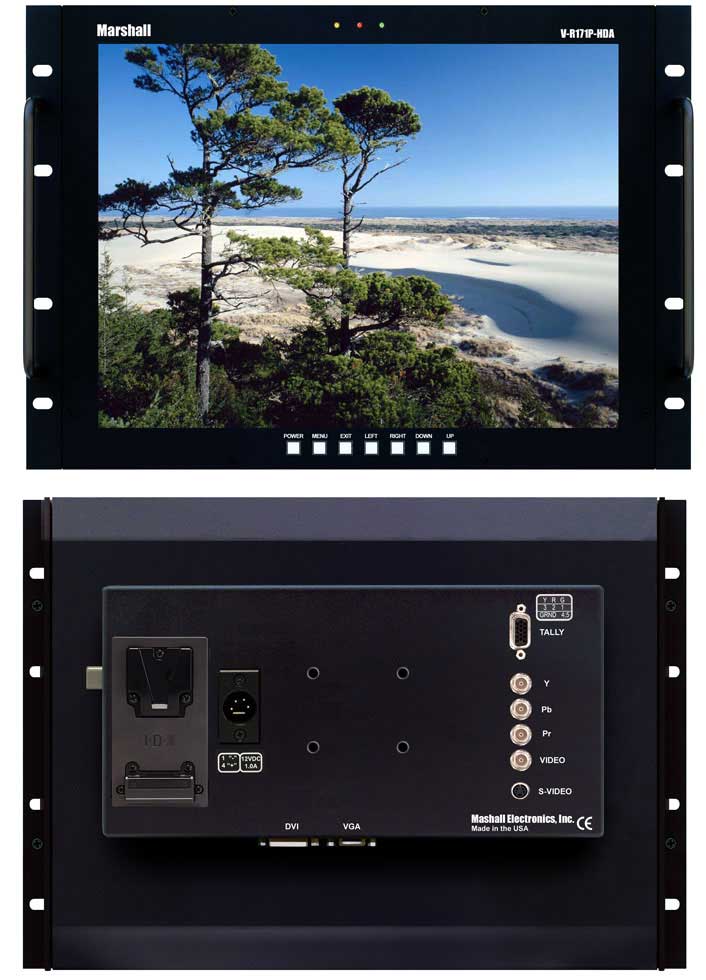

The V-R171P-HDA is a rack-mounted monitor with a 17", 5:4 aspect ratio active matrix LCD/TFT module. Mounting can also be achieved via a VESA 75 reinforced mount point on the rear of the unit. The display will produce a high-resolution 1280H ´ 1024W SXGA image from a computer or display scaled video images. Component video, Composite video or Y/C (S-video) images are displayed via a scaling chip with a separate DVI-D input for video or computer. The unit fits into an EIA standard 19" rack and occupies 8RU of space. For ease of operation the V-R171P-HDA includes front mounted selector buttons for menu operations with On Screen Menu Display (OSD) and "ON AIR" tally. A U.L. Class 2 power supply is included and the unit is factory ready for rack mount installation.

Features:

SXGA Resolution 1280 x 1024 pixels, 1.3 million total RGB pixels produce 16.7 million colors Bright 300 candle luminance 500:1 Contrast ratio Compact - fits in EIA standard rack 8U high VESA 75 mount for wall, Ceiling or desk top Automatic Gamma Correction 16:9 or 4:3 aspects 4 Preset color temperatures Self-powered tally system NTSC/PAL operation 170° CRT style viewing angles 12 VDC 4-pin XLR power connector with external power supply V-Mount battery adapter Easy to see three color tally indicators Picture In Picture Standard Multiformat inputs: Composite Video PAL/NTSC S-Video Component Video YPrPb 480P, 720P, 1080-60i YCrCb 480i SXGA Computer DVI-D (Digital)

Specifications:

Display (Viewing Area): 17" (13.30" × 10.64") (337.92mm × 270.34mm) Resolution (Pixels): 1280H × 1024V Screen Format: 4 × 5 Screen Treatment: Anti-Glare and Anti-scratch Hard Coat Dot Pitch: 0.264mm square pixel Pixel Response: 13ms Maximum - Black to White to Black (3ms rise, 10ms decay) Viewing Angle: 75° to 85° From Center Brightness (in cd/m²): 300 cd/m² Backlight: CCFL 50,000 hour Contrast Ratio: 500:1 System: NTSC/PAL Inputs: 1 S-Video (4 Pin Mini Din) 1 Composite (BNC) 1 SXGA (15P HD-15) Component Video (3 BNC) DVI-D (Digital only) Power (4 Pin Male XLR) Tally (15 Pin HD-15) Rack Mount Dimensions: 19.125"W × 13.8"H × 3.0 "D (48.5cm × 35cm × 7.62cm) Desk Top Dimensions: 17"W × 13.8"H × 3.0 "D (40.65cm × 35cm × 7.62cm) Approx. Weight: 12.5 lbs (5.7kg) Power Consumption: 12 VDC from included power supply (70Watt Max) Operating Temperature: 0°C to 50°C (Storage -20°C to +60°C)
