Marshall V-R171P-HD Rack Mount Panel

Marshall V-R171P-HD G&G Price: $3,449 High Definition 17" Rack Mountable LCD Monitor List Price: $4,399



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

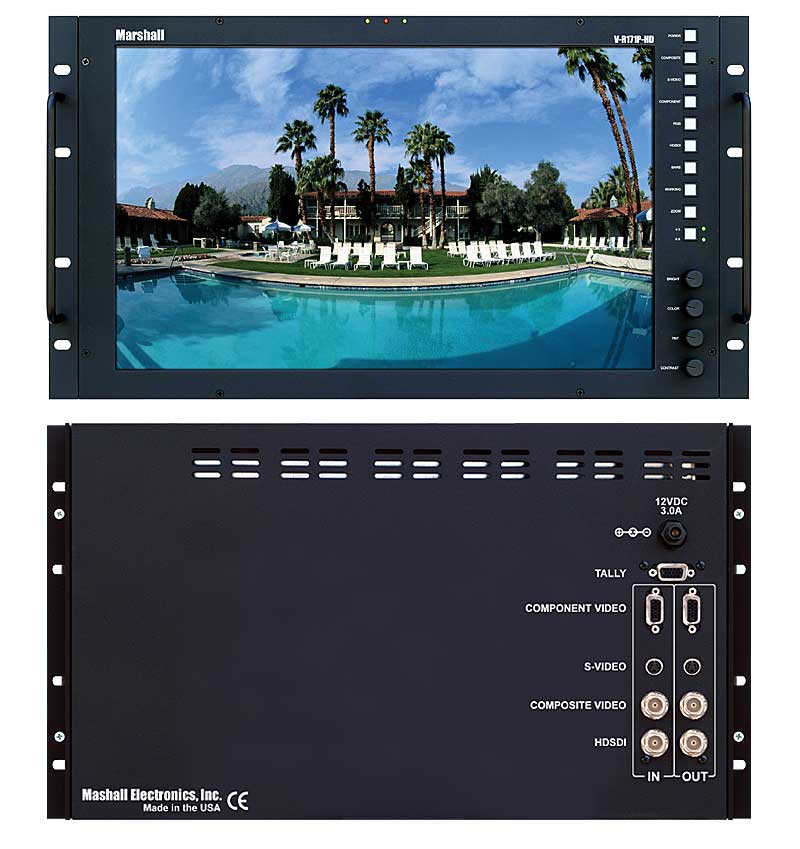

Occupying only 6 SRU and weighing just 12 pounds, the V-R171P-HD has a high resolution LCD display with 2.95 million pixels. It includes our Universal Input configuration and does not require any adapter boxes or expensive options. Standard inputs include active loop through on each connection for HDSDI/SDI, Y/C, and composite video with PAL/NTSC automatic recognition. There is also a multiformat connector for HD or SD analog component signals. For computer graphic applications, this unit also has a scalable XGA input. Additional features include, setup memory, Zoom function, 6 Frame Marker Overlays and direct access for adjustment and selection functions. With an optional VESA adaptor this monitor can be wall or ceiling mounted. Instruction manual and universal power supply are included.

Features:

High Resolution wide screen 1280 x 768 Dots with 2.95 million pixels 16.7 million colors CRT style viewing radius - 170° in any direction provides superior visibility when the viewer is not directly in front of the screen. Bright 450 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions. 500:1 contrast ratio with response rates less than 23 ms results in excellent quality for moving images. 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats Standard Multiformat inputs: HDSDI (all formats) SDI (ITU-R BT601 format) Component Analog HD/SD Composite Video PAL/NTSC XGA Display Zoom function Mono display (Black and White) Built in Color Bars 6 Frame Marker Overlays with Center Mark Easy to see three color tally indicators Adjustment Settings Memory

Specifications:

Display (Viewing Area): 17" (13.30" × 10.63") Resolution (Pixels): 1280 H × 768 V (2.4 million pixels) (16.7 million colors) Dot Pitch: 0.105mm × 0.161mm Brightness (in cd/m²): 450 cd/m² System: NTSC/PAL auto recog. Screen Formats: 640 x 480 - 59.94i, 60i, 29.97P,30P, 59.94P 60P 1280 x 720 - 23.97P, 24P, 25P, 29.97P, 30P, 59.94P, 60P 1920 x 1080 - 23.97P, 24P, 25P, 29.94P, 30P, 50i, 59.94i, 60i Inputs: HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, Y-Pr-Pb) 75W BNC for HDSDI/SDI (PAL/NTSC) 75W BNC for Composite Video (PAL/NTSC) 75W with AGC 4 Pin Mini Din for S-Video (Y/C) Dimensions: 19.12"W x 10.50"H x 2.5"D Approx. Weight: 12 lbs Power Consumption: 12 VDC, 3.0Amps max - UL Class 2
