Marshall V-R171P-4A Rack Mount Panel



Marshall V-R171P-4A G&G Price: $2,940 17" Rack Mountable LCD Monitor with Quad Splitter & Switcher List Price: $3,699



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

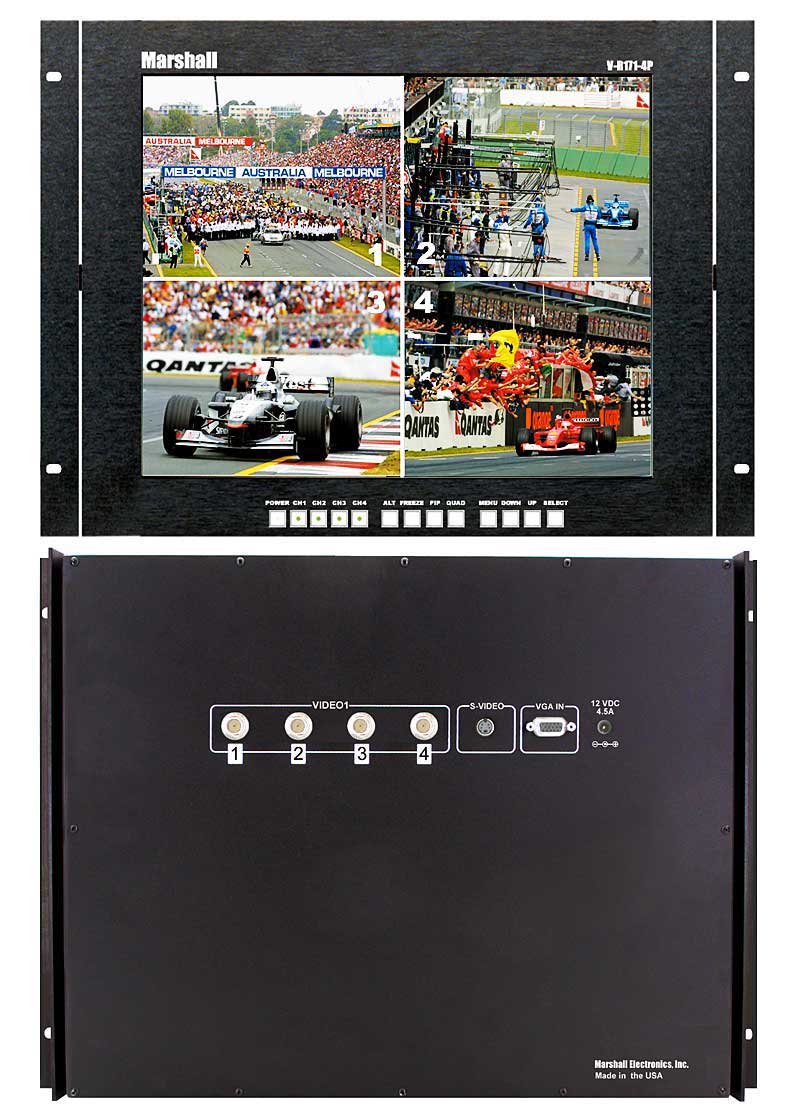

The V-R171P-4 is a 17" LCD rack mounted unit that features a built-in Quad Splitter with Sequential Switcher. This high resolution LCD panel has a pixel count 1280 x 1024, capable of producing nearly 17 million colors, and fits in a standard 19" rack 8U high. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using the full screen or picture-in-picture mode. Other features include digital freeze and zoom functions as well as 16:9 aspect ratio via an on screen menu. For added flexibility, this unit can accommodate 4 composite video, 1 S-Video or 1 SXGA for computer monitoring (S-Video and SXGA inputs are only available in full screen mode). The unit includes power supply and owners manual.

Features:

High Resolution LCD panel, 1280 x 1024 pixels, 1,310,720 total Unique Ultra Wide Viewing Angle LCD Panel, 170° in any direction Bright 250 candle luminance Built-in Quad Splitter/Sequential Switcher Software driven 16:9 to 4:3 ratio switch HDTV ready, will accept 1080i/720p signal with optional HD to VGA converter Compact design fits in EIA standard rack 8U high Unique 180 degree tilt adjustment while mounted in rack Available in NTSC or PAL format

Specifications:

Display (Viewing Area): 17" (13.30" × 10.64") Resolution (Pixels): 1280H × 1024V Dot Pitch: 0.264mm × 0.264mm Brightness (in cd/m²): 250 cd/m² System: NTSC - V-R171P-4 PAL - V-R171P-4-PAL Inputs: 1 S-Video, 4 Composite, 1 SXGA Dimensions: 19.125"W × 13.80"H × 2.5"D Approx. Weight: 13 lbs Power Consumption: 12 VDC, 3.0 Amps
