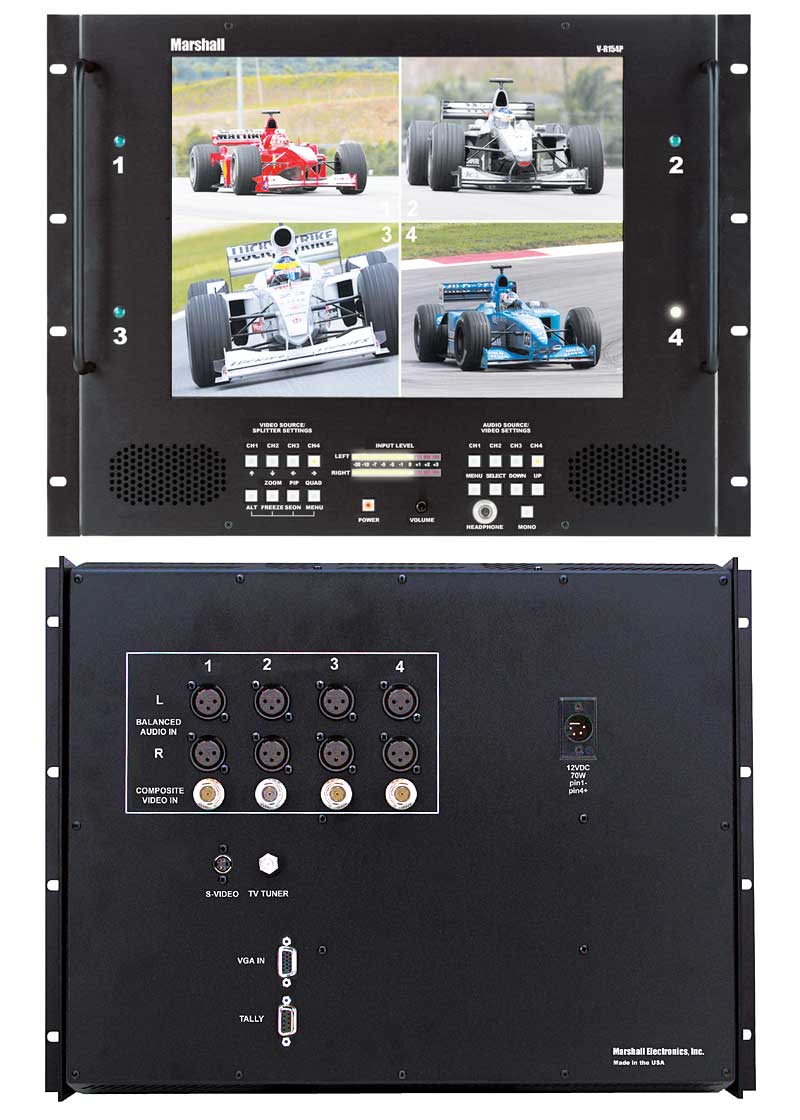

Marshall V-R154P Rack Mount Panel



Marshall V-R154P G&G Price: $3,390 15" rack mountable LCD monitor w/ built-in TV tuner, Quad Splitter List Price: $4,995



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

The V-R154P is a 15" LCD rack mounted unit with a built-in 125 channel TV Tuner, Quad Splitter, and Sequential Switcher/Router with Stereo Audio. This panel has 1024 x 768 pixels producing a true high resolution image. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using full screen or picture-in-picture mode. The unit fits into a EIA standard 19" rack, 8U high. The unit is controlled and calibrated using an on screen display while using the front mounted buttons for adjustment. The built-in audio system has four balanced stereo inputs that are mono compatible which automatically default to the video source selected or can select any audio source to accompany any video source. For added flexibility, this unit can accommodate composite video, S-Video or XGA for computer monitoring (TV, S-Video and XGA inputs are only available in full screen mode). Unit includes power supply and owners manual.

Features:

High Resolution 1024 × 768 pixels, 786,432 total Bright 250 candle luminance Built-in Speakers Built-in Quad Splitter/Sequential Switcher Built-in Bar Graph Indicator Built-in 125 Channel TV Tuner (NTSC only) Four self-powered tally lights Unique 180 degree tilt adjustment while mounted in rack Available in NTSC or PAL format

Specifications:

Display (Viewing Area): 15.1" (11.69" × 9.12") Resolution (Pixels): 1024 H × 768 V Dot Pitch: 0.297mm × 0.302mm Brightness (in cd/m²): 250 cd/m² System: NTSC - V-R154P PAL - V-R154P-PAL Inputs: VIDEO: 1 S-Video, 4 Composite, 1 XGA, 1 RF(TV) (NTSC only) AUDIO: 8 Balanced XLR, 1 RF Stereo pair (TV) Dimensions: 19.12"W × 13.80"H × 3.33"D Approx. Weight: 14 lbs Power Consumption: 12 VDC, 5.0 Amps
