Quad LCD Rack Mount Panel
This model has been discontinued.
We are providing this page as reference material.
Some accessory items may still be available.
We suggest you call or email us before placing an order for an accessory item.

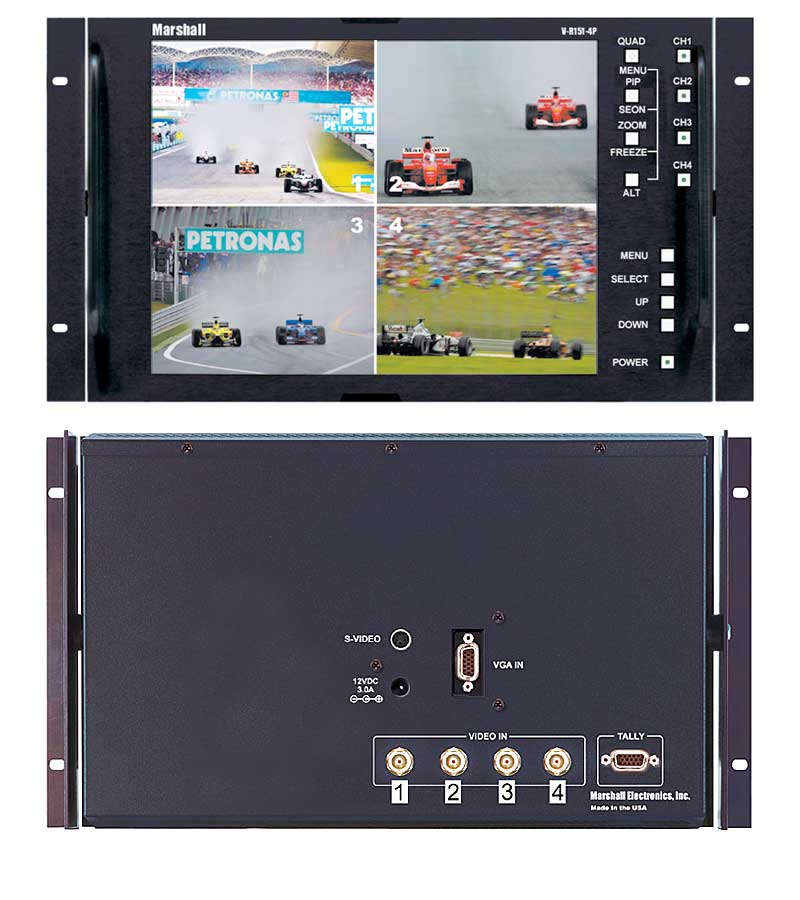

The V-R151P-4A is a 15" LCD rack mounted unit 6U high that includes Quad Splitter and Sequential Switcher. This panel has 1024 x 768 pixels producing a true high resolution image. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using full screen or picture-in-picture mode. For added flexibility, this unit can accommodate composite video, S-Video or XGA for computer monitoring (S-Video and XGA inputs are only available in full screen mode). Unit includes power supply and owners manual.
- High Resolution 1024 × 768 pixels, 786,432 total
- Bright 250 candle luminance
- Ultra-compact design fits in EIA standard rack 6U high
- Built-in Quad Splitter/Sequential Switcher
- Unique 180 degree tilt adjustment while mounted in rack
- Available in NTSC or PAL format
- Display (Viewing Area): 15.1" (11.69" × 9.12")
- Resolution (Pixels): 1024 H × 768 V
- Dot Pitch: 0.297mm × 0.302mm
- Brightness (in cd/m²): 250 cd/m²
NTSC - V-R151P-4A
PAL - V-R151P-4-PAL
- Inputs: 1 S-Video, 4 Composite, 1 XGA
- Dimensions: 19.12"W × 10.5"H × 2.25"D
- Approx. Weight: 24 lbs
- Power Consumption: 12 VDC, 2.0 Amps
