Marshall V-R1042DP-XGA Rack Mount Panel



Marshall V-R1042DP-XGA G&G Price: $2,299 Dual 10.4" XGA/DVI LCD rack mounted monitor List Price: $2,799

Description:

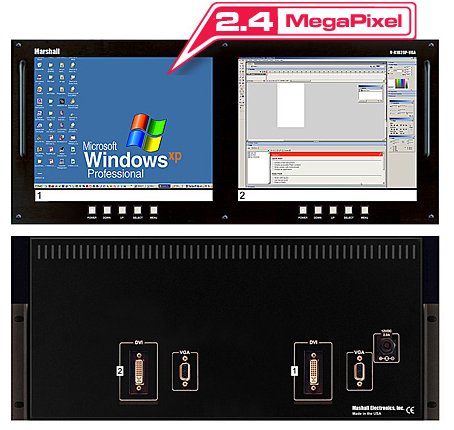

Our dual screen V-R1042DP-XGA is a unique solution for Professional IT, A/V and Multimedia applications. Ready to rack mount in 5RU, this model saves valuable rack space, is low weight and has low power consumption. Since it is only 1.65-inches deep, this monitor set is perfect for use in any EIA 19-inch relay or equipment rack. The V-R1042DP-XGA features our Award Wining Digital TFT-MegapixelT system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280 x 1024) and DVI-I RGB signals are digitized using an advanced 10 bit process, and all accepted resolutions are scaled to fit on each screen in the highest resolution using our proprietary program and state of the art LSI.

Features:

High Definition Resolution 10.4-inch 2.4 MegaPixel screen with 1024 x 768 resolution 100% digital processing 5 Year /50,000 hour backlight life 10 bit Analog to Digital conversion High resolution scaling Wide viewing radius - 130° horizontal and vertical provides superior visibility. 300 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions 700:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images Response rates less than 25 ms Direct access for adjustments of brightness and contrast Standard inputs: PC up to SXGA (1280x1024) DVI-D Loop through of all video input signals Ready to Rackmount out of the box

Specifications:

Display (Viewing Area): 10.4 Inch diagonal (8.3" x 6.2") (211.2mm W x 158.4mm H) Resolution (Pixels): 1024 Wide x 768 High (262,144 colors) Dot Pitch: 0.0685 (H) x 0.2055 (V) mm Brightness (in cd/m²): 300 cd/m² Contrast Ratio: 700:1 Inputs per panel: 1 PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D Dimensions: 19.24" w x 8.67" h x 1.5" d (485.7mm x 220.22mm x 38.1mm) Approx. Weight: 7.2 lbs (3.27 kg) Power Consumption: App. 50Watt (5Amp 12 VDC Class 2 power supply included)
