High Definition Resolution 2.4 MegaPixel screen with 1024 x 768 resolution
100% digital processing
Analog signals converted to digital
High resolution scaling of all images
CRT style viewing radius -- 170 degrees in all directions provides superior visibility when the viewer
is not directly in front of the screen
300 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying
light and viewing conditions
700:1 ratio of contrast between black and white luminance values
4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
Works with all SMPTE/ITU serial digital production formats and frame rates
Blue Gun for color adjustment
Ready to mount in 19" rack out-of-the-box
Three-color self-powered tally system provided for each panel
Built-in Color Bar Generator
Standard inputs:
HDSDI (all formats)
SDI (ITU-R BT601 format)
Composite Video PAL/NTSC
Y/C (S-Video)
Component Video YPbPr
VGA to XGA
DVI-I
Loop-through of all input signals
Zoom function
Built-in Color Bars
6 Frame Marker Overlays with Center Mark
Easy-to-see three color tally indicators
Adjustment Settings Memory
Calibrated Color Temperature and Gamma

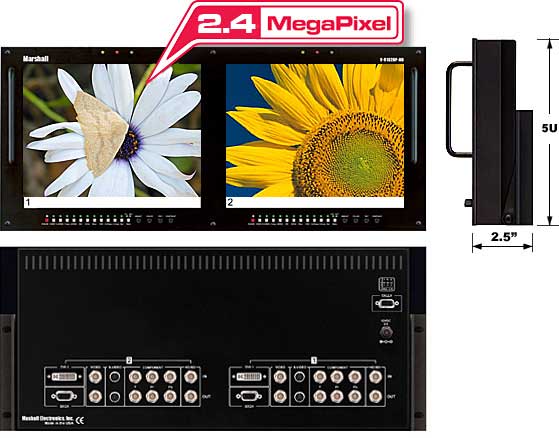

Occupying only 5 rack units of a standard 19" EIA equipment rack, the V-R1042DP-AFHD represents leading edge technology in LCD imaging for broadcast and professional video applications. Two high resolution 2.4 MegaPixel TFT screens with completely digital signal processing provide image reproduction that exceeds all CRT displays available in a similar form factor. All SMPTE/ITU video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10-bit process on each signal path with 4x oversampling and adaptive 5-line comb filter with exacting color space conversion. All video formats are scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Additional features include setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions.
|
