Marshall V-LCD8-P LCD Panel

Marshall V-LCD8-P G&G Price: $448 7.9" LCD panel NTSC/PAL switchable List Price: $699



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

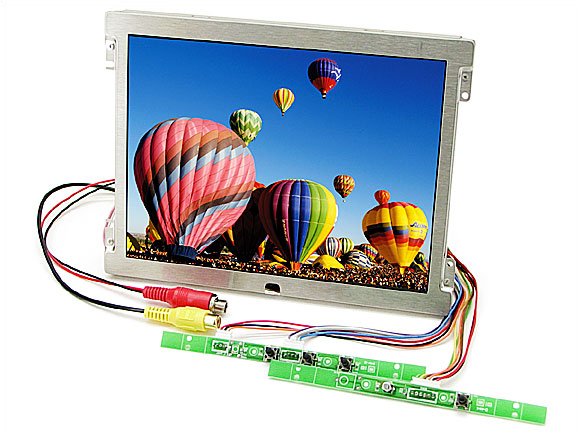

The V-LCD8-P is a high resolution LCD panel with NTSC/PAL auto recognition. To operate unit, supply 12 VDC @600mA of power (Marshall V-PS12-1000, not included) into the red coaxial power jack. Supply an NTSC or PAL composite video signal to the yellow PCA connector. The panel comes with two boards that have buttons mounted on them. The board with the single button is ON/OFF switch. The other button board board has three buttons, the first button is MENU/SELECT and the second and third buttons are UP and DOWN, respectively. The panel can automatically detect if the signal is NTSC or PAL. To adjust the picture, press the MENU/SELECT button and use the on-screen display to access contrast, color, and tint.

Specifications:

Display (Viewing Area): 8" (6.35" H × 4.64" V) Resolution (Pixels): 1440H × 234V Dot Pitch: 0.112mm × 0.504mm Brightness (in cd/m²): 350 cd/m² System: NTSC/PAL auto detection Inputs: Composite Video Contrast Ratio: 150 : 1 Dimensions: 7.54"W × 5.69"H × 0.94"D Power Consumption: 12 VDC, 600mA
