Marshall V-LCD7-WPR LCD Panel

Marshall V-LCD7-WPR G&G Price: $415 7" 16:9 wide screen LCD panel List Price: $599



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

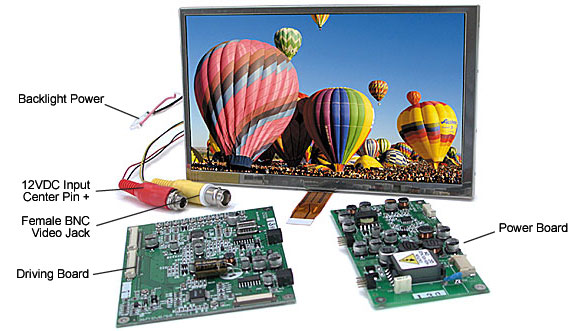

The V-LCD7-WPR is a high resolution 7"(measured diagonally) wide screen (16:9) LCD panel. With brightness of 400 cd/m2 it will provide outstanding displays in bright ambient lighting conditions. The module includes connections for composite video and power and offers a full compliment of features. User Control Interface PCB (Driving Board) and Power PCB with interconnect cables included.

Specifications:

Display (Viewing Area): 7" (6.07"W x 3.43"H ) Resolution (Pixels): 1440H × 234V Dot Pitch: 0.107mm × 0.370mm Brightness (in cd/m²): 400 cd/m² System: NTSC/PAL auto detection Viewing Angle(degree) Top/Down/Left/Right: 30/60/60/60 (min) Viewing Angle(degree) Top/Down/Left/Right: 30/60/60/60 (min) Inputs: Composite Video, Y/C (S-Video), RGB Contrast Ratio: 150 : 1 Dimensions (Driving Board): 2.79"W x 2.79"H Dimensions (Power Board): 1.73"W x 2.79"H Power Consumption: <4 watt Weight: 6.7 oz
