Marshall V-LCD5V-P-01 LCD Panel

Marshall V-LCD5V-P-01 G&G Price: $430 5" High resolution active matrix color LCD panel VGA version List Price: $599



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

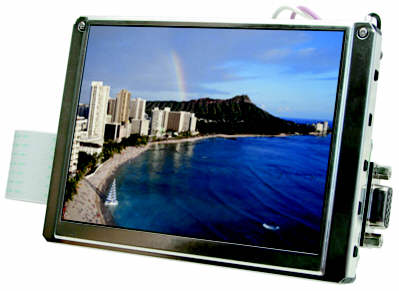

The V-LCD5V-P-01 is a true high resolution 960 × 234 pixel, 5" LCD panel that features a switchable NTSC to VGA input. Its TFT active matrix allows a wide viewing angle. Its 210 candle luminance allows this panel to deliver rich color texture even under bright lighting conditions. The VGA mode allows this unit to become a computer screen, this feature is particularly useful in multimedia and machine vision applications. Very slim and compact, it is ideal for LCD TV, digital camcorder, car navigation, video CD and other medical and industrial applications.

Specifications:

Display (Viewing Area): 5" (4.04" H × 2.93" V) Resolution (Pixels): 960H × 234V Dot Pitch: 0.107mm × 0.319mm Brightness (in cd/m²): 200 cd/m² System: NTSC or PAL Inputs: Composite or VGA (640 x 480) Contrast Ratio: 150 : 1 Dimensions: 5.02"W × 3.65"H × 0 .50"D Power Consumption: 12 VDC, 1 amp
