Marshall V-LCD4-P-02 LCD Panel



Marshall V-LCD4-P-02 G&G Price: $189 4" Active Matrix LCD Panel List Price: $225



Accessories:
V-LCD-VA	VESA Adapter for 12" and 15" monitors	$19.95
V-PS12-500	12VDC (500mA) regulated power supply w/coax plug	$16
V-PS12-1000	12VDC (1A) regulated power supply w/coax plug	$24.95
V-PS12-5V-1	12V, 5A Power Supply w/twist lock connector	$89
V-PS6-1.2A	6V Power Supply, 1.2A, w/twist lock connector	$39.95
V-BP12-LCD	Battery attachment for LCD monitor	$75
V-LCD4-PRO-L-HOOD	Hood for V-LCD4-PRO	$21
V-LCD4-ST	Stand for V-LCD4-PA	$39.95
V-LCD-MT-01	1/4" mount LCD to camcorder mount	$24.95
V-LCD4-CASE	Carrying Case for 4" LCD monitor	$40
V-BG-PCB-MS	Color Bar Generator NTSC/PAL Switch	$135
V-BG-P-MS	Color Bar Generator NTSC/PAL black case	$140
V-LCD-CP-001	Control Panel for 6.4" LCD	$99.95
84XXM	BNC-BNC 75ohm RG59 Cable - XXft	$9 (6ft)
94XXM	BNC-BNC HD RG59 Cable - XXft	$10 (6ft)
TCS-5139-XX	4-Pin MiniDin S-Video Cable - XXft	$11 (6ft)
V-PAC-D	Power Adapter Cable (D-type conncetion)	$60
V-PAC-XLR	Power Adapter Cable (4 Pin XLR connection)	$60
RGB-5HD15-X	HD15 to RGB HV Video Cable	$35 (6ft)
V-H700P	Sun Hood for V-R65P-HD & V-R70P	$99.95
V-R65-RPS	Replacement Protection Screen for V-R65P-HD	$69.95
V-R65-1M	Single monitor mount for 19" rack	$129.95
V-R65-2M	Double monitor mount for 19" rack	$99.95
V-CC1	Carrying Case for V-R65P-HD	$180
V-HWP-K	Package of 10 Wipes for LCD displays	$9.95
V-R65-BA	Mount For IDX Batteries	$150
IDX E7S	55 W Lithium Battery	$195
IDX E7	55 W Lithium Battery with Power Link	$279
IDX E10S	82 W Lithium Battery	$339
IDX E10	82 W Lithium Battery with Power Link	$425
IDX VL-2 PLUS	Sequential 2 Channel Charger	$499
IDX VL-4S	Simultaneous 4 Channel Charger	$759

Description:

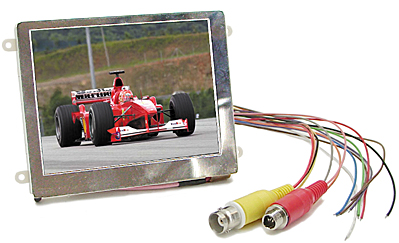

The V-LCD4-P-02 is a high resolution 4" TFT-LCD panel that has switchable NTSC or PAL input. Very small and compact design that makes it ideal for applications where only small spaces are available. The choice between NTSC and PAL makes this panel useful for displays being used in the U.S. and abroad. Ideal for car navigation monitoring, camcorders, car seat TV, machine vision and multimedia applications. It can easily be built into industrial machines and wall displays. Recommended Power Supply: V-PS12-1000 (Not Included).

Specifications:

Display (Viewing Area): 4" (3.23" H × 2.43" V) Resolution (Pixels): 480H × 234V Dot Pitch: 0.171mm × 0.264mm Brightness (in cd/m²): 250 cd/m² System: NTSC/PAL auto detection Inputs: Composite or RGB Contrast Ratio: 150 : 1 Dimensions: 3.78"W × 3.00"H × 0.26"D Power Consumption: 12 VDC, 1amp
