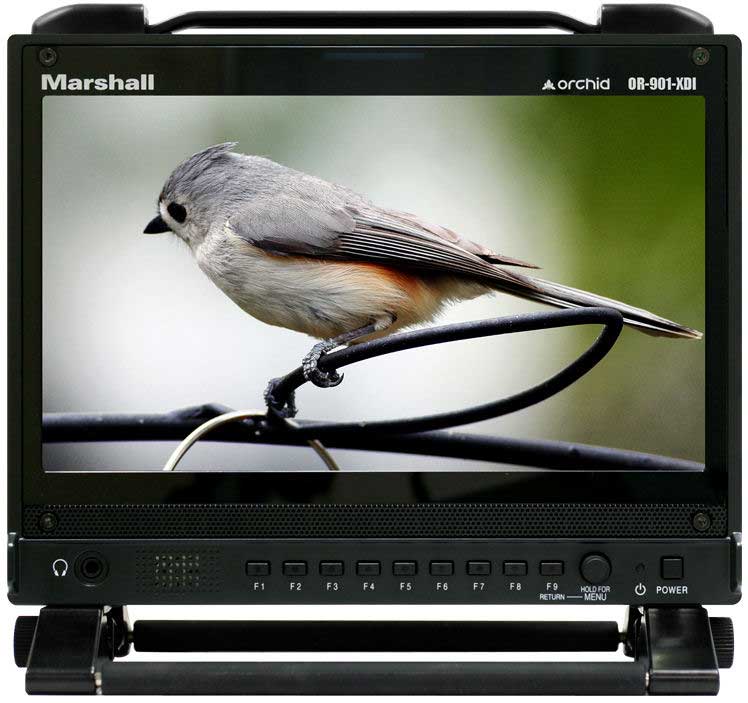

Marshall OR-901-XDI 9" LCD Monitor


Click for Reverse Side

Click here for more info! Marshall OR-901-XDI
G&G Price: $3,276.35
9" Wide Screen with Dual 3GSDI, Analog, HDMI Inputs
Add to cart for a better price!


Accessories:
0071-1305-A
Sony B Series Battery Plate for BP-U60 14.4 Volt Battery $22.94
0032-1302-A
AB Mount for Anton Bauer Battery $103.50
0032-1301-A
VM Mount for IDX Battery $103.50
OR-9RMK
Rack Mount Kit (mounts two units side-by-side) $194.35
OR-9HO
Sun Hood for OR-901 Monitor $159.85


Description:
Overview
The OR-901-XDI 9" ORCHID rack mountable / portable field monitor has all the features that customers have asked for including fully automatic HD-SDI to HDMI / HDMI to HD-SDI cross conversion. The OR-901-XDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system. Orchid monitors now include a variety of 3D production tools and anaglyph views. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x.

The OR-901-XDI will de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-901-XDI comes standard with auto-sensing 3G-SDI, HDMI, and analog inputs, along with fully automatic cross converted HD-SDI and HDMI outputs. The new G-Marker displays a grid that corresponds to the horizon to help accurately level the camera and monitor. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera.

Features

  • Real-Time Waveform Monitor
  • Adjustable Clipping Indicator
  • Real-Time Color Vectorscope
  • Five 3D Production Views
  • Four Anaglyph 3D Displays
  • Auto White Balance Calibration
  • Sixteen 64-segment Tri-color Audio Meters
  • On-Screen Time Code
  • 7 assignable GPI inputs
  • Adjustable Color Temperature
  • Precision Gamma Settings
  • Adjustable Color Temperature
  • False Color Mapping with two modes
  • Histogram
  • Auto-Sensing Rear Unbalanced Stereo Output
  • Fully Automatic HD-SDI to HDMI Cross Coversion
  • Auto-Sensing Front Panel Headphone Jack
  • Built-in Front Panel Speaker
  • Auto-Sensing Rear Unbalanced Stereo Output
  • Audio Log Graph
  • Audio Phase Display
  • Variety of Safety Markers
  • Adjustable User Marker
  • Tri-Color Tally Indicator
  • Large "On Air" Tally for Talent
  • 3G-SDI inputs with re-clocked output
  • Supports 3 different Battery Adapters
  • Adjustable / Detachable Stand with top handle
  • User Replaceable Protective Screen
