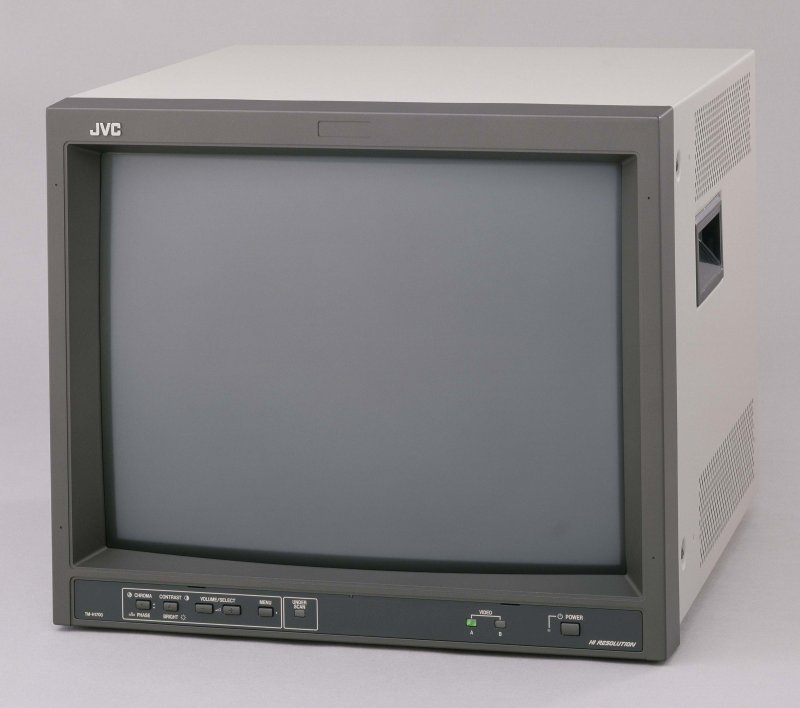

JVC TM-H1900GU 19-Inch Color Monitor

JVC TM-H1900GU G&G Price: $895 19-Inch Color Monitor List Price: $1,195

Accessories:
RK-MH19	Custom Rack Kit	$150

Description:

JVC has designed the perfect multi-purpose, utility monitor with its TM-H1900G. Packaged in an ultra-compact, rack-mountable cabinet, the TM-H1900G delivers 750 lines of horizontal resolution on a 19-inch display. Switch over from an aspect ratio of 4:3 to wide-screen 16:9 and it’s ideal for a six-picture splitter arrangement. Its Underscan function supports multiplexer applications, and it has a multi-function remote capability for off-site operation. Naturally the TM-H1900G comes with all of the high-end features users have come to expect with the economical monitors, such as on-screen menu-driven parameter setting, NTSC/PAL compatibility, universal power supply, and rugged reliability. The cabinet is stunning in its simple elegance. The slim picture surround and the discreet control panel make for a monitor that always looks right, whether standing alone or rack mounted.

Features:

Over 750 lines of resolution 4:3 or 16:9 selectable aspect ratio PAL/NTSC 120/230VAC Composite and YC Video Inputs Wired Remote 9U Rack Mountable Compact Metal Cabinet

Specifications:

Color Systems: NTSC and PAL (auto-sensing) CRT: 19"(18"v) (diagonally measured), trio-dot pitch 0.27 mm P-22 phosphor Scanning Frequency: (H) 15.734 kHz (NTSC)/15.625 kHz (PAL) (V) 59.94Hz (NTSC)/50Hz (PAL) Horizontal Resolution: More than 750 TV lines (Y/C input) Power Requirements: 120V AC and 230V AC Color Temperature: 6,500°K/9,300°K Standard Video Input A: Composite, via BNC x 2 with auto termination and bridged output Input B: Composite, via BNC x 2 with auto termination and bridged output Y/C (priority input), via 4-pin mini DIN x 2, auto termination and bridged output Audio Inputs: A and B via phone jack, with bridged output for loopthrough Remote Terminal: D-sub 15-pin x1, MAKE CONTACT for functions of: Input Select Aspect Changeover (16:9/4:3) Underscan Dimensions (W x H x D): 17-3/8 x 14-7/8 x 19-5/8 inches 440 x 375 x 496 mm Weight: 55.2 lbs. (25.1 kg)
