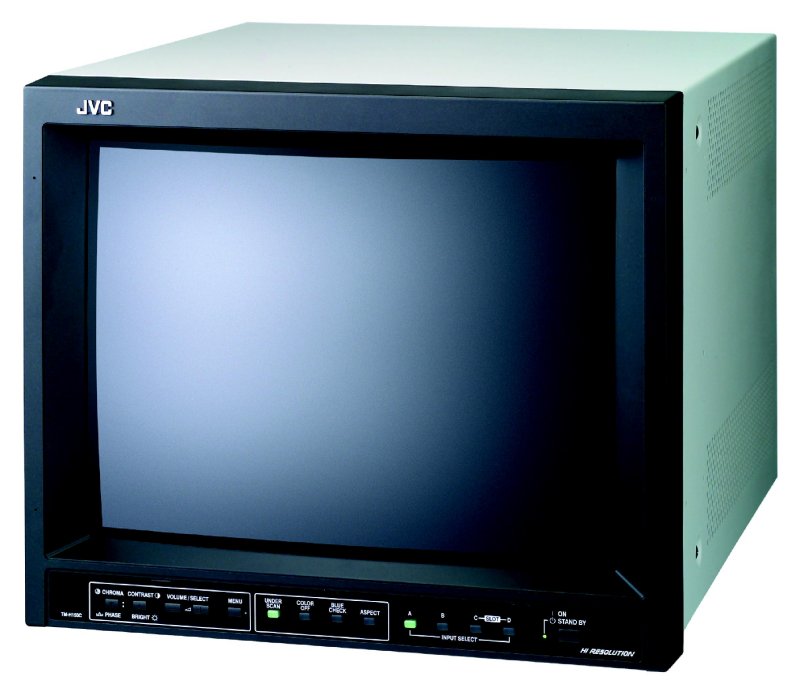

JVC TM-H150CGU 15-Inch
High Resolution Color Monitor

Click here for more info JVC TM-H150CGU
G&G Price: $470
15-Inch High Resolution Color Monitor
List Price: $799

Accessories:
IF-C01COMG
Component I/O card $239
IF-C51SDG
SDI CARD w/Embedded Audio & Level Display $896

Description:
The TM-H150CG is one of the highest specification monitors of its class. With the addition of an Input Card Slot and choice of Component and SDI input cards, TM-H150CGU will display all types of NTSC/PAL input signals and is an excellent solution for broadcast, production, preview, scientific and other applications, which demand the highest quality and professional features in an affordable package.

Features:
  • High-Resolution, more than 750 TV lines
  • Slot Port for Optional Component/SDI Card
  • Multi-standard NTSC & PAL
  • Aspect Ratios 16:9 & 4:3 switchable
  • Wired Remote Control
  • On-screen Menu and Digital Image Control
  • Tough metal cabinet
  • Underscan, Color Off & Blue Check Functions

Specifications:
  • Color System: NTSC and PAL H:15.734kHz (NTSC)/15.625kHz (PAL)
  • Scanning Frequency: V:59.94Hz (NTSC)/50Hz (PAL) 15”(14”V) diagonally measured
  • CRT: 0.27mm dot pitch
  • Horizontal Resolution: More than 750 TV lines (Y/C input mode)
  • Power Requirement: 120V AC,220-240V AC, 50/60Hz
  • Power Consumption: 1.2A/120V,0.8A/220-240V
  • Color Temperature: 6500° and 9300° selectable
    INPUT Terminals
  • Input A:
    • Composite: 1 line ,BNC connector x 2,1.0V (p-p), 75 ohms, negative sync, auto-termination, bridged output possible
  • Input B:
    • Y/C Signal: 1 line, mini-DIN 4-pin x 2 Y:1.0V (p-p), 75 ohms, negative sync C:0.286V (p-p), 75 ohms (NTSC Burst) 0.3V (p-p), 75 ohms (PAL Burst) auto-termination,bridged output possible
  • Input Slot: 1 slot port for 1 input card for Component or SDI card RCA pin x 4 for input A and B,0.5V (rms)
    Audio Terminals
  • Remote Terminal: high-impedance,bridged output possible D-sub 15-pin x1
  • Audio Speaker: 3-1/4”(8cm) round x 1,1W output (monaural)
  • Dimensions (WxHxD): 14-1/4”x 12-1/4”x 16-1/2”(360 x 310 x 418mm)
  • Weight: 35.2lbs.(16kg)
