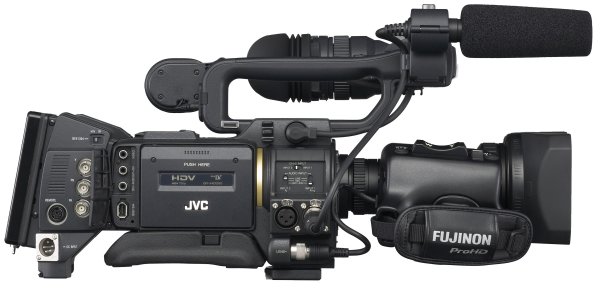

JVC GY-HD200UB
3-CCD PRO HD Camcorder

JVC HAS UPGRADED THE CAMERA!

JVC is pleased to introduce the new GYHD200UB and GYHD200CHUB ProHD Professional HD camcorders, now with live transport stream output capability of 1080 60i and 50i signals as well as 720p through the IEEE 1394 connection. The newly selectable 1080i output signal can also be recorded into the ProHD DRHD100 Hard Disk Recorder as either .m2t or .mov QuickTime™ files, making the GY-HD200UB the fastest and most efficient “shoot-to-edit” professional HD camera system in the industry! Now a broader base of customers – those requiring a high quality 1080i camcorder – can take advantage of JVC’s unique performance advantages including progressive CCD imaging, interchangeable lenses, compact shoulder form factor and Native File Recording with the optional DRHD100 Hard Disk Recorder. Switchable IEEE 1394 720p/1080i output is a capability not available on any other shoulder mount camcorder in this price range. (Please note that the 1080i mode cannot be recorded onto video tape.) To identify the new units there will be a (B) designation after the model name on both the carton and the serial number label on the camera. In addition, to exemplify our commitment to providing ongoing technological enhancements to the ProHD line, JVC will maintain the current pricing of the GY-HD200U, GY-HD200CHU and relative packages for the new models.

NEW! JVC Loyalty Royalty Rebate

From now through August 30, JVC has announced a new customer appreciation program, "Loyalty Royalty," which rewards owners of JVC professional products with incentives of up to $1,000 towards the GY-HD200UB HD camera. If you already own certain JVC models, you will be eligible for a rebate. And you don't have to trade it in - you just have to prove you own it - usually by just taking a picture of the serial number. Here is the list of eligible models: D9 Models: BR-D350U, BR-D40U, BR-D50U, BR-D51U, BR-D52U, BR-D560U, BR-D750U, BR-D80U, BR-D85UNS, BR-D860U, BR-D92U, BR-D95U, DY-700U, DY-70U, DY-90U, DY-90W. Professional DV: BR-DV10U, BR-DV3000U/B, BR-DV6000U/B, BR-DV600U/A, GY-DV550U, GY-DV500U, GYDV700WU, GY-DV300U, GY-DV5000U, GY-DV5100U, JY-HD10U, SR-DVM600US, SR-DVM700US, SR-VD400US, SR-VDA300US, SR-VS10U, SRVS20U, SR-VS30U. Professional S: BR-S378U, BR-S405U, BR-S410UN, BR-S411U, BR-S420CU, BR-S422U, BR-S500U, BR-S522DXU, BR-S522U,BR-S525DXU, BR-S525U, BR-S525U, BR-S600U, BR-S601MU, BR-S605UB, BR-S610U, BR-S611U, BR-S622DXU, BR-S622U, BR-S710U, BRS711U, BR-S747U, BR-S777U, BR-S800U, BR-S810U, BR-S811U, BR-S822DXU, BR-S822U, BR-S925U, GY-X1, GY-X2BU, GY-X2U, GY-X3U. ProHD: GY-HD100U, GY-HD110U, GY-HD200U, GY-HD200UB, GY-HD250U, BR-HD50U. Pro Camera: KY-D29U The D9 models (and KY-D29U) will get you a $1000 rebate. All the other models will get you a $500 rebate. (You can only get one rebate per camera purchase.) So, be sure to click on the "WANT A BETTER PRICE" button to get our great price on the camera, then factor in your Loyalty Royalty rebate and we think you are going to be pleasantly surprised how affordable the GY-HD200UB camera will be for you!



	JVC GY-HD200UB G&G Price: $5,795 Want a better price? Viewfinder, Mic Holder, Microphone, SD Memory Card, Anton Bauer Gold Mount, and 16:1 Lens This package now includes a FREE Anton Bauer Trimpac 14 battery, and a FREE Anton Bauer Tandem 70 AC/battery charger
	JVC GY-HD200CHUB G&G Price: $5,395 Want a better price? Viewfinder, Mic Holder, Microphone, SD Memory Card, Anton Bauer Gold Mount, (no lens) This package now includes a FREE Anton Bauer Trimpac 14 battery, and a FREE Anton Bauer Tandem 70 AC/battery charger



JVC DR-HD100 G&G Price: $1495 Want a better price? 100 GB HD Hard Disk Recorder

JVC HD-Filter Kit G&G Price: $409 6 Tiffen filters in one handy kit: 82mm Clear Lens Protection 82mm Circular Polarizer Improves Contrast 82mm ND.6 Cuts down light by 2-f stops 82mm 85 filter Color conversion filter to lower color temperature 82mm 80A filter Color conversion filter to increase color temperature 82mm HDTV/FX2 Creates 'film' look by reducing contrast Storage Pouch Protects and organizes your filters List Price: $749



CB250 Thermodyne Shipping Case G&G Price: $499 Customized hard shipping case to store JVC PROHD cameras fitted with a standard or wide angle lens Can accommodate tripod plate, Anton/Bauer or IDX V-Mount bracket, two batteries and a charger Rollers for ease in handling List Price: $595



Kata CC-197 G&G Price: $215 Large HD Video Bag Internal dividers and shoulder strap included



Porta Brace CTC-3 G&G Price: $265 Traveler Camera Case List Price: $279

Vinten Pro-6HDVF G&G Price: $929 Pro-6HDV head (V4018-0001), Two-Stage Aluminum Pozi-Loc Tripod (3819), Floor Spreader (3818), and Soft Case (U005-190) IN STOCK!

JVC BR-HD50U G&G Price: $3,195 Want a better price? HDV Recorder/Player List Price: $3,399



Accessories:
HZ-CA13U	Precision Lock Mount to 1/3" 16mm Film Lens Adapter	$3870
ACM-12	1/3" to 1/2" Lens Mount	$705
ACM-17	2/3" Lens Mount Converter	$720
WCV-82SC	Wide Angle Converter for 16x	$530
Th13x3.5BRMU	Wide Angle Lens	$9,670
KA-551U	Tripod Plate/Adapter Kit	$265
AB-Dionic Pkg	Anton Bauer One Dionic 90 and One Tandem 70 Charger	$960
AB-Dionic T2	Anton Bauer Two Dionic 90, One T2 Charger/power supply and one XLR-4 power cable	$1895
LE-HD250KIT	IDX Pkg Includes one PV Battery Plate, on VL2Plus Charger/Power Supply and two E7 batteries	$1145
JVC-PV	IDX V-Mount Battery Plate	$125
RS-HD100	Porta Brace Rain Slicker	$165

Description:

Designed for news gathering, field production and cinematography, the GY-HD200UB offers multiple frame rate recording including full-frame 720p/60 imaging and real 24p. Its high resolution and smooth motion make it perfect for ENG and recording sports events, while its HD progressive 24 frames per second record rate lends itself to cinematic productions, giving them a very natural and film-like appearance. So whatever your HD requirements may be, this ProHD camcorder from JVC provides an affordable HD solution which can meet your needs today and tomorrow. Whether you are creating videos for social sites (i.e. You Tube, My Space, or Face Book), making independent films and documentaries, or shooting weddings, the GY-HD200UB can get your job done with professional results. Multiple frame rate recording: 720/24p, 25p, 30p, 50p, and 60p Compact Shoulder Professional form factor Wide choice of lenses and accessories Optional HZ-CA13U Prime Lens adapter Built-in image flip recording when using prime lenses Built-in 14.4V Anton Bauer Battery Mount Dual-media (tape +HDD)recording with DTE Next generation super-efficient MPEG-2 encoding Enhanced Cinema Gamma Advanced 14-bit A/D converter Lower noise in low light Better highlight handling BNC connectors

Features:

Multiple frame rate recording The GY-HD200U records full HD in 24p, 25p, 30p, 50p and 60p. When recording in faster frame rates such as 50p or 60p, motion is smooth and retains the "live look" of television while maintaining a frame by frame sharpness superior to interlace signal formats. Furthermore, when the intended output is 24p or 30p, higher frame rate recordings can be slowed down in post production to give an ultra-smooth slow motion effect. Again all the sharpness of the full frame progressive signal is retained. JVC's new "Super Encoder" provides highly efficient realtime MPEG2 encoding of progressive signals resulting in broadcast quality HD recordings that are virtually free of visible artifacts. Real 24p shooting The GY-HD200 also offers real HD 24p recording capability — previously available on only the most expensive HD cameras. Ideal for DVD production, HD progressive 24-frame-per-second recording makes it possible to shoot images with film-like quality and smooth motion. Once recorded, those images can easily be transferred without frame rate conversion to 16 mm or 35 mm film with full HD fidelity. ProHD's outstanding image quality is supported by a wide range of powerful features which have great appeal to true film professionals. These include the image inverse function, as required by certain film lens adapters, and a menu to select the appropriate combination of color matrix and film gamma type. Cinema Gamma is deployed to make video look like film, and Film Out gamma is used when the video is to be ultimately transferred to film. This choice of gamma means that the cinematographer, irrespective of whether the final production will be presented as film or as video, can be sure of always getting the best possible film look. HDV and DV compatible As the HDV format uses the same recording track pitch as Professional DV, the GY-HD200 can record signals in either standard (576i/60) or high (720p/60) definition, according to the user's needs. Being able to record in DV is ideal for someone migrating to HD, but who may not be ready to produce in HD immediately. Interchangeable HD lenses The GY-HD200 features a standard professional 1/3" bayonet lens mount, providing the opportunity to use a variety of other professional HD lenses. In addition to the standard Th16x Fujinon lens supplied, a number of other 1/3" bayonet mount zoom lenses is available. Canon offers a powerful 20x5mm zoom lens and Fujinon similarly an 18x4.2mm, besides a very wide 13x3.5mm lens and 17x5mm lens. Furthermore, lens mount adapters ACM-12 and ACM-17 convert the mount to 1/2" and 2/3" bayonet mount respectively, providing cost savings by way of using existing 1/2" and 2/3" lenses. Also, to enable the use of film camera lenses, special film lens adapters are available. 3-CCD camera system with 720p HD CCDs The GY-HD200 uses three 1/3" high definition CCD image sensors. Each array has a pixel resolution of 1280 x 720 and uses a micro lens system. Since this native resolution matches that of most HDTV displays, the need for image scaling is eliminated, further enhancing the quality of the recorded images. Another advantage of using these CCDs is their sophisticated circuitry which virtually eliminates both lag and image burn. Uncompressed 720p/60 live output via component When required, the GY-HD200 can output a live uncompressed 720p/60 signal in the form of analog component signal, making it an excellent choice as a video server feed. Uncompressed 1080i/60 output via component One very important reason why JVC developed the progressive form of HDV was the ease and speed with which a progressive signal can be converted to other formats, irrespective of whether the conversion is up, cross or down. Conversion is always performed in real time because the time-consuming complexity of de-interlacing is not required. The GY-HD200 can be set to output 1080i/60 from any recorded 720p/60 footage, whether recorded on a MiniDV cassette or on the DR-HD100 hard disk drive. Compact shoulder mount JVC's ProHD camcorders are the first fully professional HD camcorders to feature a compact design and shoulder mount. Like its predecessors, the GY-HD200 offers excellent mobility and enhanced usability, while its flexible range of ergonomic adjustments ensures that any camera operator, regardless of stature or physique, can support the camcorder firmly and, above all, comfortably. Professional functions and switch layout In addition to the Full Auto Shooting to handle difficult or variable lighting environments, the GY-HD200 is equipped with an array of functions that give professionals creative flexibility. These include, zebra, gain, white balance and full shutter control. Also, the GY-HD200's switches have been positioned where professional camera operators expect them to be. Shooting is intuitive, precise, easy, and error-free, because there is no learning process to go through. The GY-HD200 is the ideal camera for any assignment. Detachable 230,000-pixel LCD color viewfinder The viewfinder's eyepiece can be moved backwards and forwards and can also be adjusted laterally for left or right eye shooting, so the viewfinder can fit any operator comfortably. JVC's own developed Focus Assist control ensures fast and easy focusing. It has 3 settings, (high, medium & low) depending on the type of subject in view. To make focusing even easier, a black and white mode is available. Stronger contrast and reduced color noise make visualization and composition easier in this mode and put less strain on the eyes, which allows longer periods of shooting. The eyepiece viewfinder can be used at same time as the LCD display. If it is not required, the eyepiece viewfinder may be detached. 3.5" LCD display panel This 250,000-pixel 3.5" color TFT LCD monitor provides a high-resolution image during shooting and playback. JVC's own developed Focus Assist control ensures fast and easy focusing. A push button selects three display modes: Video only Video images with text information overlay including time, status, mode and other data are shown on the screen. Only information such as time, status, mode, time code, audio levels and other data is shown on the screen. Various audio-related functions When color bars are output, an audio reference level (test tone) can also be output if required. This is requested via the menu. The audio reference level can be set at -12 dB or -20 dB as required. To minimize extraneous noise picked up by the microphone, a "wind cut" function is provided. Versatility and Flexibility Camera settings recorded on SD card Customized settings can be stored on a standard SD memory card and loaded into another GY-HD200 or changed on site, as required. IEEE 1394 (FireWire) in/out A convenient IEEE 1394 interface allows easy direct connection to NLE systems or to a PC for capturing, editing and archiving. Patented "FOCUS ASSIST" function A JVC patented device, Focus Assist, turns focusing into a fast, easy and accurate process. When Focus Assist is activated, the picture in the viewfinder becomes monochrome and all objects which are in focus take on a colored fringe. In addition to the factory default Middle position, Low and High positions are available. In the Low position, you can limit the area in focus for more precise focusing. This is particularly helpful when using the technique of pulling focus. Focus Assist works equally in the 0.44" viewfinder and the 3.5" LCD panel. There are two Focus Assist buttons, one for each of handheld and shoulder operation. Connect to optional external HDD The camcorder has a hard disk drive accessory option, DR-HD100, which connects via the IEEE 1394 port. Footage captured on the hard disk can be edited immediately without having to wait for data to be transferred. DR-HD100 Hard Disk Drive incorporating the latest DTE (Direct to Edit™)technology Connects to GY-HD200 camcorder The DR-HD100 has been designed specifically to attach to the GY-HD200 camcorder. Interlocked to the camcorder's record trigger, HD and SD images can be recorded together with audio and time code. It is powered by either a built-in rechargeable or an external battery. The DR-HD100 is supplied with its own cradle, from which it is detached easily. Optional bracketry is available for mounting the HDD recorder at the rear of the camcorder. Compatible with popular NLE systems for HDV and DV editing DTE™ technology permits the DR-HD100 recording data in HDV and DV to be set to the NLE's native file format. This means that no time is lost to the lengthy processes of file transfer and rendering. Use DR-HD100 instantly with the most popular applications from Adobe, Apple, Avid, Canopus and many more. As new application support is released, the DR-HD100 can be updated in the field with new system software, by an easy process using the disk drive itself. Integrated with camcorder and disk drive operation Attached to the GY-HD200, the DR-HD100's record and record/pause functions are controlled from the camcorder. Time code generated by the camcorder is recorded to files on the DR-HD100. The status of the DR-HD100 and other vital information appears in the camcorder's viewfinder and LCD display. Long record times This hard disk drive option extends uninterrupted record time by hours. For example, an 80GB FireWire drive can store 6 hours of DV video and 7.5 hours of HDV video, and a 40GB drive does half these times. It is possible also to daisy chain up to four external drives of different capacities to the DR-HD100, enabling uninterrupted recording of incredibly long durations. LCD display and playback modes The DR-HD100 features a detailed LCD that displays system mode, time code and disk space remaining. When used with the GY-HD200 camcorder, clips can be reviewed on the viewfinder, LCD panel or external monitor, by using DR-HD100's playback mode. Functions include record, play, pause, stop, forward index, back index and multi speed fast forward and rewind. Other features Two XLR audio inputs Full Auto Shooting Adjustable color matrix LCD mirror mode Two-mode composite out Color bars

Specifications:

General Power requirement: DC 12 V Power consumption: Approx. 23 W (in the Record mode) Dimensions: 242 (W) x 233 (H) x 414 (D) mm (9-9/16" x 9-3/16" x 16-5/16") Weight: 3.7 kg (8.16 lbs.) (including viewfinder, microphone and tape) Temperature Operating: 0°C to 40°C (32°F to 104°F) Storage: -20°C to 60°C (-4F° to 140°F) Humidity: Operating: 30% to 80% RH Storage: 85% RH or less Camera section Image pickup device: 1/3" interline-transfer CCDs Color separation optical system: F1.4, 3-color separation prism Number of pixels: Total: Approx. 1,110,000 pixels Color bars: HD:SMPTE HDTV color bars / EBU color bars Sync system: Internal sync (built-in SSG) Lens mount: 1/3" bayonet system ND filter: +1/4ND, +1/16ND Gain: 0, 3, 6, 9, 12, 15, 18 dB, ALC Electronic shutter: Standard value: 59.94 Hz Fixed values: 7.5-10,000 Hz, 11 steps (HDV HD60P/HDV HD30p;DV 60i mode: 6.25-10,000 Hz 11 steps (HDV HD50p/HDV HD25p mode: 6-10,000Hz, 12 steps (HDV HD24p/DV 24p) Variable scan: about 60 to 10,000Hz (HDV HD60p/HDV HD30p; DV60i/ about 50 to 10,000 Hz (HDV HD50p/HDV HD25p), about 24-10,000Hz (HDV 24p;DV24p) VTR section (VIDEO) Recording format: 720/24p, 720/25p, 720/30p, 720/50p, 720/60p, 480/24p, 480/60i [HDV] Video signal recording format: HDV1 format, 8-bit, 19.7 Mbps Compression: MPEG-2 video (profile & level: MP@H-14) Video Format: 720/60p: 74.25/1.001 MHz (4:2:0 component), 720/50p: 74.25 MHz (4:2:0 component), 1080/60i: 74.25/1.001 MHz (4:2:0 component, up conversion only), 1080/50i: 74.25 MHz (4:2:0 component, up conversion only) [DV] Video signal recording format: DV format, 8-bit, 25 Mbps Compression: DV compression, 4:1:1 VTR section (AUDIO) [HDV] Audio signal recording format: MPEG1 Audio Layer II [DV] Audio signal recording format: 16-bit (locked audio), 48 kHz PCM for 2 channels or 12-bit, 32 kHz PCM for 4 channels Usable tape: Mini DV tape Tape speed: 18.831 mm/sec. Record/play time: 63 minutes (with an M-DV63PROHD tape) Connectors Analog composite output: 1.0 V (p-p), 75 ohms, unbalanced (RCA) Analog component output: Y: 1.0 V (p-p), 75 ohms, unbalanced (BNC) R-Y/B-Y: 0.7 V (p-p), 75 ohms, unbalanced (BNC) Audio inputs: Mic: -60 dBs, 3 kohms, balanced (XLR), +48 V output for phantom power supply Line: +4 dBs, 10 kohms, balanced (XLR) Audio outputs: -8 dBs, low impedance, unbalanced (RCA) Earphone jack: -18 dBs to -60 dBs, 8-ohm impedance (stereo mini-jack x2) IEEE1394 connector: 6-pin Remote connector: DIN 6-pin Accessories provided: Viewfinder Lens (Th16x5.5BRM) Microphone SD memory card Anton Bauer 14.4V Gold Mount

Need another reason to buy from G&G Technologies? By purchasing from an Authorized JVC Dealer, you are eligible for the JVC Perfect Experience Policy
