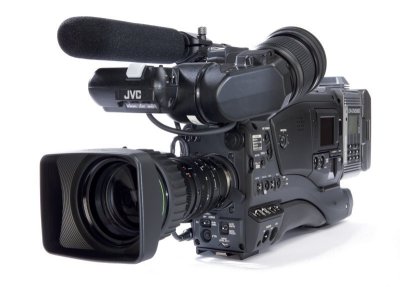

JVC GY-DV5100U
3-CCD Professional DV Camcorder

JVC GY-DV5100U G&G Price: $5,495 1/2" CCD DV Camcorder can record both Large & Mini DV formats includes tripod plate microphone (but not as shown in picture) Anton Bauer Gold Mount VF-P116U 1.5" Viewfinder KA-A50U Mic holder Lens NOT included List Price: $7,899

JVC GY-DV5100L17 G&G Price: $5,995 1/2" CCD DV Camcorder can record both Large & Mini DV formats includes tripod plate, microphone (but not as shown in picture), Anton Bauer Gold Mount, VF-P116U 1.5" Viewfinder, KA-A50U Mic holder, and Fujinon S17X66BRM-SD X17 Zoom Lens List Price: $9,899

JVC GY-DV5100DR G&G Price: $7,995 1/2" CCD DV Camcorder can record both Large & Mini DV formats, includes tripod plate, microphone (but not as shown in picture), Anton Bauer Gold Mount, VF-P116U 1.5" Viewfinder, KA-A50U Mic holder, DR-DV5000-40 Hard disk recorder, AB-Dionic Pkg (battery and charger) Lens NOT included List Price: $10,999

JVC GY-DV5100L19DR G&G Price: $11,495 1/2" CCD DV Camcorder can record both Large & Mini DV formats, includes tripod plate, microphone (but not as shown in picture), Anton Bauer Gold Mount, VF-P116U 1.5" Viewfinder, KA-A50U Mic holder, DR-DV5000-40 Hard disk recorder, AB-Dionic Pkg (battery and charger), and YH19X67KRS X19 zoom lens List Price: $14,999



Accessories:
AB-Dionic Pkg	Anton Bauer One Dionic 90 and One Tandem 70 Charger	$960
L PRODV	PRODV Package w/2 NP-L7S batteries, JL-2 Plus Charger/AC, 4 Pin Power Cable	$650
IA-60A	AC Power Supply	$249
PSA124	AC Power Supply	$160
Cases:
CTC-3	Travel Case	$265
CC-22-PW	Quick Draw Case	$330
CB-750U	Thermodyne Hard Case	$460
Docking Hard Drive Recorder:
DR-DV5000	Digital Disc Recorder 40 GB	$1,795
Lenses:
S14x7.5BRM4	14X Zoom	$925
S20X6.4BRM-SD	20X Zoom - Internal Focus	$2,750
S19X6.5BERM4	19X Zoom with Extender	$7,900
YH16X7K12U	16X Zoom	$1,449
YH19X6.7KRS	19X Zoom	$3,100
HZ-FM500	Rear Focus Control	$750
HZ-FM13U	Rear Focus Control	$630
HZ-FM15U	Rear Focus Control	$630
HZ-ZS13U	Rear Zoom Control	$685
Viewfinders/Monitors:
VF-P116U	1.5 inch B&W Hi-Res Viewfinder	$1,190
VF-P400U	4 inch B&W Studio Viewfinder	$770
SA-K400U	Mounting Bracket for VF-P400U Viewfinder	$40
Tripods:
Bogen 3065	3065 Tripod/Head (3068 Tripod w/516 Head)	$802
3ST2	3ST2 Two-Stage Toggle Clamp Tripod (3452-3) Spreader (3394-3) and Soft Case (3334-3)	$1,795
Blank Tape:
Mini-DV Tape	Mini-DV Blank Tape Stock
Large-DV Tape	Large-DV Blank Tape Stock

Description:

The GY-DV5100U is JVC's top-performing Professional DV camcorder. JVC has upgraded the camera's features and digital processing circuits to meet the requirements of a growing number of broadcasters looking for cost effective alternatives to the over-priced tapeless solutions of other manufacturers. When combined with the DR-DV5000U, the combination of a dual media workflow enhancement, high end performance and reasonable cost, the GY-DV5100U simply can't be beat.

Features:

Improved 12-bit A/D converter, 24-bit DSP for ultra low noise Double tension tape transport accepts full & mini size cassettes (up to 276 minute record time) Professional DV record/play, DVCAM Playback 16:9/4:3 recording capability (native 4:3, 16:9 squeeze or LB) 400% dynamic range Ultra sensitive f:13 @ 2000lux 0.4 lux (100% video) 800 TV lines (camera) 63dB S/N camera Highlight chroma Soft shoulder pad Anton Bauer Gold Battery Mount (NEW) Light link (controls light ON/OFF) 2.5-inch LCD with data or video display Time/date record Hi Res frame mode 3 XLR audio inputs with phantom power (NEW) Left eye and Z axis adj. standard. IEEE1394 In/Out. Direct docking with optional DTE hard disk module (Improved) Auxiliary Digital Port (for Network Pack) Locked audio Extended warranty – 2 years parts, 1 year labor (Improved)

Specifications:

GENERAL Power requirement: DC 10.5 V to 17 V Power consumption: Approx. 20 W (in the Record mode) Dimensions: 364 (W) x 249 (H) x 121 (D) mm (14-3/8" x 9-13/16" x 4-13/16") Weight: 5.5 kg (12 lbs.) (including viewfinder, battery, microphone and tape) Temperature: Operating: 0°C to 40°C (32°F to 104°F) Storage: -20°C to 60°C (-4Å° to 140°F) Humidity: Operating: 30% to 80% RH Storage: 85% RH or less CAMERA SECTION Image pickup device: 1/2" interline-transfer CCDs Color separation optical system: F1.4, 3-color separation prism Number of pixels: Total: 410,000 (NTSC)/470,000 (PAL) Effective: 380,000 (NTSC)/440,000 (PAL) Color system: GY-DV5100U (NTSC), GY-DV5100E (PAL) (wide- band R-Y, B-Y encoder) Color bars: SMPTE/EBU type Sync system: Internal sync (built-in SSG) Lens mount: 1/2" bayonet system Optical filter: 3200K, 5600K, 5600K+1/8ND, 5600K+1/64ND Sensitivity: F13, 2000 lx Minimum illumination: 0.2 lx with F1.4, LOLUX Horizontal resolution: 800 lines S/N: Effective 62 dB (camera head, no output: GY-DV5100U) Gain: -3, 0, 6, 9, 12, 15, 18 dB, variable gain (0.2 dB-step) in ALC and LOLUX Electronic shutter: Standard value: 59.94 Hz Fixed values: 7.5, 15, 30, 100, 250, 500, 1,000, 2,000, 4,000, 10,000 Hz Variable scan: 60.1 to 2,084.6 Hz (GY-DV5100U) Dynamic range: 400 % or more VTR SECTION Format: DV format, 4:1:1 (NTSC) Signal format: NTSC Usable tape: Standard/Mini DV tape Tape speed: 18.812 mm/sec. Record/play time: 276 minutes (with an LA-DV276PRO tape), 63 minutes (with an M-DV63 tape) VIDEO Video signal recording format: 8-bit, 13.5 MHz, 4:1:1 AUDIO Audio signal recording format: 16-bit (locked audio), 48 kHz PCM for 2 channels or 12-bit, 32 kHz PCM for 4 channels Frequency response: 20 Hz to 20 kHz (48 kHz mode) CONNECTORS Video output: 1.0 V(p-p), 75 ohms, unbalanced (BNC) (composite video signal) Y/C output: Y; 1 V (p-p), 75 ohms, unbalanced C; 0.286 V (NTSC)/0.3 V (PAL) (p-p), 75 ohms, unbalanced (4-pin) Audio inputs Mic: -60 dBs, 3 kohms, balanced (XLR), +48 V output for phantom power supply Line: +4 dBs, 10 kohms, balanced (XLR) Audio outputs: -6 dBs, low impedance, unbalanced (RCA) Earphone jack: -17 dBs to -60 dBs, 8-ohm impedance (stereo sound mini-jack) DV connector: 4-pin
