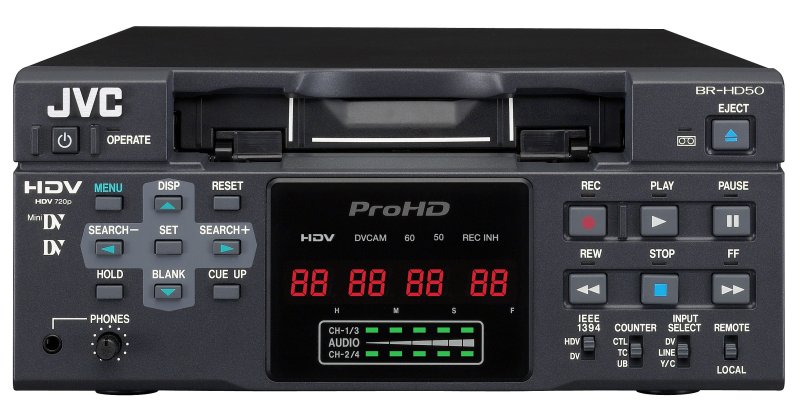

JVC BR-HD50U PRO-HD Recorder/Player

JVC BR-HD50U G&G Price: $3,195 Want a better price? HDV Recorder/Player List Price: $3,399

Description:

The companion model to the GY-HD100, this HDV/DV spooler is designed to transfer video and audio data to a non-linear editing system. Optimized for use with a wide variety of existing systems and formats, this unit features switchable HDV and DV modes and analog outputs. You can also connect it to a plasma or LCD panels equipped with an HDMI connector and use it as a low-cost viewer. With its low cost and high flexibility, the BR-HD50 is ideal for any facility looking for a smooth upgrade path from standard definition to HD.

Features:

Lock audio (16-bit, 48 kHz only) Time code reader/generator Headphone connector Contact closure recording Repeat playback Wired remote control

Specifications:

General Power requirements: DC 12 V (from provided 12 V,3.5 A AC adapter) Power consumption: Approx.20 W Dimensions: 8-3/8" (W) x 3-1/2" (H) x 12-7/8" (D)/212 (W) x 88 (H) x 327 (D) mm Weight: Approx. 8.6 lbs./3.9 kg Temperature: Operating: 41°F to 104°F/5°C to 40°C Storage: -4°F to 140°F/-20°C to 60°C Humidity: Operating: 30% to 80% RH Storage: 85% RH or less Usable tape: Standard/Mini DV tape Tape speed: 18.8 mm/sec. Record/play time: 276 minutes (with LA-DV276PRO tape) 63 minutes (with an M-DV63PROHD tape) Video Recording format: 720/24p,720/25p,720/30p,576/50p,480/60p,480/24p,480/60i HDV: Video signal recording format: HDV720p format,8-bit,19.7 Mbps Compression: MPEG-2 video (profile & level:MP@H-14) DV: Video signal recording format: DV format,8-bit,25 Mbps Compression: DV format,4:1:1 Audio HDV: Audio signal recording format: MPEG1 Audio Layer II DV: Audio signal recording format: 16-bit (locked audio),48 kHz PCM for 2 channels or 12-bit,32 kHz PCM for 4 channels Connectors [video] HDV: Video outputs - Analog component: Y:1.0 V (p-p),75 ohms (BNC) PB/PR:0.7 V (p-p),75 ohms (BNC) DV: Video inputs - Analog composite: 1.0 V (p-p),75 ohms (BNC) Video inputs - Analog Y/C: Y:1.0 V (p-p),75 ohms C:0.286 V (p-p),75 ohms (4-pin) Video outputs - Analog composite: 1.0 V (p-p),75 ohms (BNC) Video outputs - Analog Y/C: Y:1.0 V (p-p),75 ohms C:0.286 V (p-p),75 ohms (4-pin) Video outputs - Analog component: Y:1.0 V (p-p),75 ohms (BNC) PB/PR:0.7 V (p-p),75 ohms (BNC) Connectors [audio] Audio inputs Line: -8 dBs,10 kohms,unbalanced (RCA) Audio output Line: -8 dBs,1 k-ohm,unbalanced (RCA) Headphones: -¥ to -15 dBs (8 ohms) (Stereo mini jack) Connectors [misc] HDMI output: 19-pin IEEE 1394 interface: 6-pin RS-422 interface: D-sub 9-pin Serial remote interface: Mini jack
