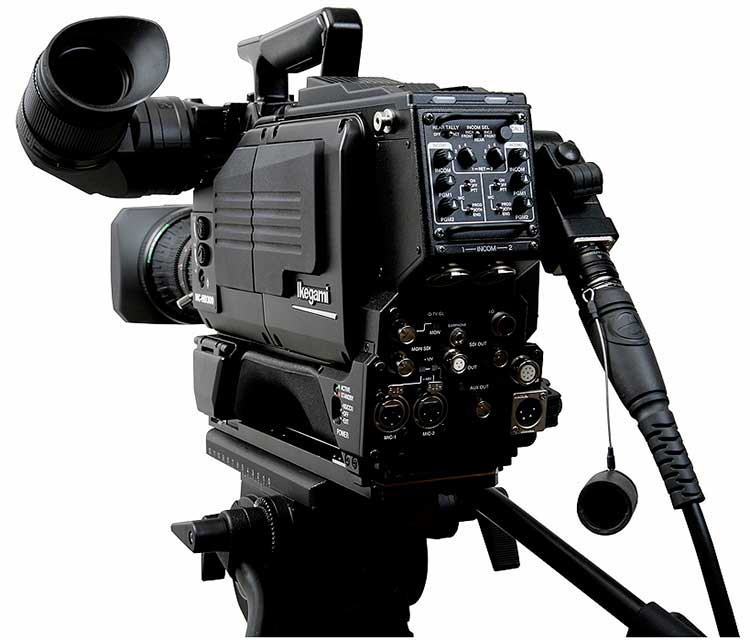

Ikegami HC-HD300 Camera Series

A broadcast quality camera for users without a broadcast budget - this is the idea behind Ikegami's creation of the HC-HD300 camera series. It provides superior image performance which has been refined at major Japanese broadcasters, as well as, those in America, Europe and Asia, together with an affordable price. This camera provides the overall low cost of ownership you are looking for.

Even though the price is affordable, the care toward its per formance, function, and construction is not lowered. That is the concept of HC-HD300. In addition to the advanced functionality of an Ikegami camera, newly developed 2.5 million pixel CMOS sensors realize 1000TVL resolution, 58dB signal-to-noise ratio, and F10(60Hz)/F11(50Hz) sensitivity.

Unlike bulky Multi-core cables, only a duplex lightweight single mode fiber or hybrid fiber cable is required between the camera adaptor and base station for robust two-way communications and to carry all of the required signals necessary for operation of the camera and associated production equipment.

The HC-HD300 can be configured for almost any application, from ENG to studio. Please contact us and we'll be glad to give you all the options to create a system tailored to your needs.

• Ikegami's first affordable HD Studio Camera System
• Docking style camera body provides system flexibility
• Outstanding picture quality as part of the Unicam HD series product line
• Newly developed fiber system to provide an overall cost-effective studio and field solution
• Suitable for ENG applications with snap-on digital recorders
• Affordable Fiber System FA-300/BSF-300 (opticalCON DUO series, Max. 350m/ 1,148ft with 2"VF, 250m/820ft with 7"VF)
• Various Camera Control Units
  • BSF-300: Fiber system
  • BSF-55: Fiber system
  • BST-55: Triax system
  • CA-75HD: Camera Adaptor
  • OCP-100: Control Panel
  • OCP-10: Mini Control Panel

Ikegami HC-HD300 Spec Sheet
HC-HD300 User Manual
