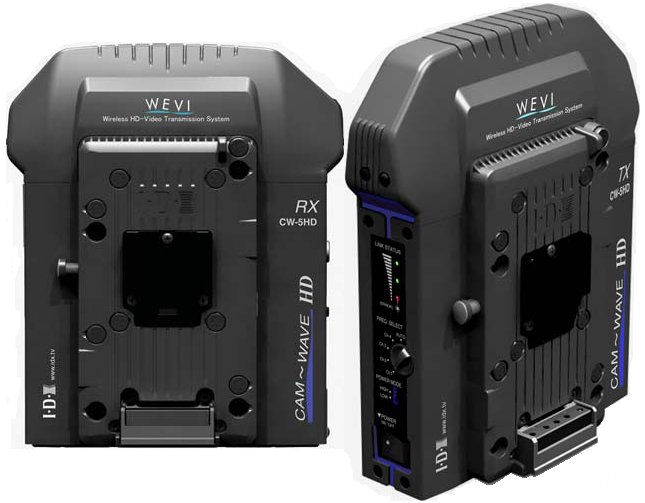

IDX CW-5HD
Wireless HD Video/Audio System

IDX CW-5HD
G&G Price: $5169
Wireless HD Video System

IDX Endura E-7S
G&G Price: $219
71Wh Lithium Ion V-mount Battery Pack
w/3 LED Power Status Display, NO PowerLink
NOT Stackable
(Cannot be piggy-backed)

IDX Endura E-10s
G&G Price: $295
93Wh Lithium Ion V-Mount Battery Pack with 3 LED Power Status Display, NO Powerlink
NOT Stackable

IDX VL-2 Plus
G&G Price: $499
Sequential Two Channel Multi-format ENDURA V-Mount Charger with 60-Watt Power Supply
(Power cable sold separately)
List Price: $610

Following up on the success of the IDX WEVI Video Wave, the CW-5HD is a camera mountable wireless system capable of either HD/SDI or SDI.

This new system utilizes IDX V-mount batteries to power both the on-camera transmitter and the receiver.

Description:

Supports HD-SDI/SD-SDI input and output
Transmitting HD video (1080i, 1080p, 720p), SD video (525i, 635i) with SDI embedded audio (CH1 and CH2)
Latency delay in transmission of only 1 millisecond maximum
Adoption of MIMO technology, multiplexing wireless signals via multiple antennas in one channel to achieve HD
Both automatic and manual selection of transmission frequencies (4 CH) allowing multiple systems in same area
Maximum range up to 150 ft in line of sight (actual production may vary)
Signal protection using 256-bit AES encryption (in Unicast mode)
Choice of transmission output power selection in either high or low level
Power supplied by V-Mount Lithium Ion batteries or by DC input via XLR 4-pin connector
Lightweight with thin profile weighing just 1.5 lbs, no visible antenna array and only 11W power consumption
Operates between 5.1—5.8 GHz band radio frequency and there is no FCC license requirement
TX features loop-through capability; RX outputs dual simultaneous signal
Multicast link mode function permits multiple receivers to display signals from a single transmitter (non-encrypted)
Back-up power function auto-switches to connected battery if external DC power is disconnected
Conforms to major international engineering standards including FCC, CE and RoHS specifications

CONSUMER ALERT
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
