| Specifications: |
Controls
- Local Control: Audio Deck: Record, play, review, cue/fast forward, pause, stop, eject. CD Deck: Play, stop/clear, skip
- Remote Pause: Yes
- Pause Control: Yes
- Record Level Control: Automatic level control (ALC)
Recording Specifications
- Tape Capacity: C-30, C-60, C-90
- Tape Counter: Resettable 3-digit (ANSI 2x standard)
- Recording Heads: Record, Playback and Erase.
- Tape Format: Cassette, stereo
- Tape Speed: 1 7/8" per sec.
- Rewind Time: C-60 - 110 sec.
Audio Specifications
- Amplifier: 7 Watts RMS (per channel), (D.H.T. 5%)
- Heads: Record, Erase & Playback
- Speakers (Built-in): 2 x (4 in. round)
- Wow & Flutter: 0.17%
- Signal To Noise Ratio: 45 dB
- Frequency Response: 125Hz ~ 8KHz
- Microphone Input: Miniature jacks
Connections
- 1/4" Phone Jack: Speaker Jack
- 1/4" Phone Jack #2: Speaker Jack
- 1/4" phone stereo jack x 5: Headset Jacks
- mini Remote: Microphone Jack
- mini #2: Auxilary Input Jack
- submini: Remote Pause
Physical Specifications

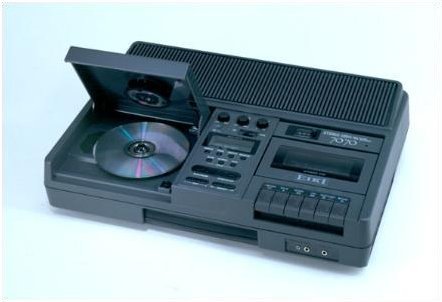

- Type: Combo CD Player/Audio Tape Recorder/Player
- Cabinet Height: 11.2"
- Cabinet Width: 15.7"
- Cabinet Depth: 3.9"
- Weight: 8.1 lbs
Electrical Specifications
- Power Requirements: 120 V AC 60Hz
- Power Consumption: 12 Watts
- Battery or AC Operation: AC only
- Power Cord: 6', 3 prong (grounded) attached
Safety
- Compliance: UL Listed
Warranty
- Warranty - Unit: 1-Year limited warranty of origiinal purchase for parts and labor.
|
