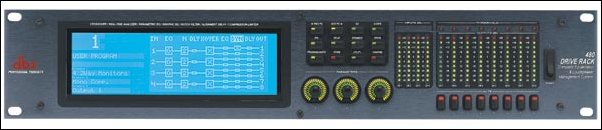

Specifications: |
Inputs
- Number of Inputs: 4 (Inputs 3 or 4 can be selected as an RTA mic input)
- Connectors: Female XLR
- Type: Electronically balanced/RF filtered
- Impedance: >40k ohm
- Maximum Input Level: Hardware selectable for +30, +22, +14, dBu
- Max input RTA Level: -10 dBu
- CMRR: >40 dB typical, >55 dB at 1kHz
- Input Gain Range RTA: 10 dB to 70 dB w/60 dB typical
Outputs
- Number of Outputs: 8
- Connectors: Male XLR
- Type: Electronically balanced, RF filtered
- Impedance: 120ohm
- Output Transformers: Optional
- Max Output Level:
+25.5 dBu into 1kohm
+22dBu into 600ohm
A/D Performance
- Type:
dbx Type IV™ Conversion System
- Dynamic Range line: >112 dB unweighted, 115 dB A-weighted
- Type IV™ dynamic range:
127 dB with transient material,
A-weighted, 22kHz BW
125 dB with transient material,
unweighted, 22kHz BW
119 dB typical with program material,
A-weighted, 22kHz BW
- Sample Rate: 48kHz
- A/D Wordlength: 24 bits
D/A Performance
- Dynamic Range: 112 dB unweighted, 115 dB A-weighted
- Sample Rate: 48kHz
- D/A Wordlength: 24 bits
System Performance
- Internal Wordlength: 48 bits
- THD + Noise: 0.003% typical at +4dBu, 1kHz, 0dB input gain
- Frequency Response: 20Hz- 20kHz, +/-0.5dB
- Interchannel Crosstalk: <-85dB at 1kHz, 0dB input gain
Pre EQ
- Type:
One 31-band Graphic EQ per input channel, or
9 band Parametric EQ per input channel
RTA can be substituted for EQ in channels 3 and 4
- Range: +/-12 dB range
Notch Filters
- Number: 1-5 per input channel not to exceed 10 for all input channels
Pre Delay
- Length: 680ms/channel
- Crossover: Type:
1x2, 1x3, 1x4, 1x5, 1x6
2x3, 2x4, 2x5, 2x6, 2x7, 2x8, 3x4, 3x5, 3x6, 3x7, 3x8, 4x6, 4x8
- Filter Type: Butterworth, Bessel, or Linkwitz-Riley
- Slope:
6, 12, 18 or 24 dB/octave for Butterworth or Bessel filters
12, 24, 36 or 48 dB/octave for Linkwitz-Riley filters
Post EQ
- Type: Parametric
- Number: 4 EQ bands per output channel
Range: +/-15 dB range
Dynamics
- Type: Compressor/Limiter with PeakStopPlus™
- Attack/Release: Program Dependent
- Linking: All 8 bands are linkable
Post Delay (Driver Alignment)
- Length: 170 ms per output channel
Pink Noise Generator
- Position: Pink noise inserted on selected input(s)
Phase Compensation
- Number: One per output channel
- Amount: 0-180 degrees phase shift
- Output Polarity: Reversible
Miscellaneous
- Output
- Transformers: Optional
- Network: Proprietary RS-485 Backbone
- GUI: RS-232 interface for computer display and configuration
- RTA Microphone: Optional
- ROM Upgrade: Flash upgradeable through RS-232
Power Requirements
- Watts:
100-240V - 50/60 Hz
35 Watts
- Dimensions: Height- 3.5" X Width- 19" X Depth 12.15"
- Weight: 11lbs.
- Shipping Weight: 12.5lbs.
|
|
