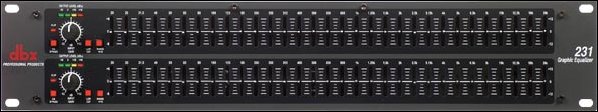

dbx 231
Dual Channel 31-Band Graphic Equalizer

Click here for more info dbx 231
G&G Price: $199.95
Want a better price?
Dual Channel 31-Band Graphic Equalizer
List Price: $279.95

Description:
With a lineage extending back to the revered 12 and 20 Series graphic equalizers, the dbx® 231 easily lives up to the dbx reputation at a price point which can find a home in the tightest of budgets. Besides including two 31-band channels of 1/3-octave equalization, the 231 also offers ±6 or ±12 dB boost/cut range; XLR, 20mm faders and 1/4" inputs; nonconductive nylon sliders; and an intuitive user interface with comprehensive output and gain reduction metering. As always, the inevitable result of our meticulous attention to detail and top-quailty componentry is exceptional sound, performance, and reliability.

The 2-Series represents a major step forward in the performance of entry-level graphic equalizers. From its amazing 10Hz to 50kHz frequency response, to its 108dB dynamic range and internal toroidal transformer, the 2-Series offers out of this world specifications with a down to earth price point. Sure to find a home in the studio, on tour and with installed sound venues, the 2-Series is destined to take its rightful place in the lineage of great dbx® signal processors that are the Professional's Choice™. With such affordable quality, there's no longer any excuse for compromising your sound.

Features:
  • Two 31-band, 1/3-octave Constant Q frequency bands
  • Switchable boost/cut ranges of ±6 or ±12 dB
  • 12dB per octave 40Hz low-cut filter
  • Front panel bypass switch
  • ±12 dB input gain range
  • 4-segment LED ladders for monitoring output levels
  • XLR and TRS Inpts and Outputs
  • Internal Toroidal Transformer
  • Frequency Repsonse of <10Hz to >50kHx
  • Dynamic range of greater than 108dB

Specifications:
    INPUT
  • Connectors: 1/4" TRS, female XLR (pin 2 hot)
  • Type: Electronically balanced/unbalanced, RF filtered
  • Impedance: Balanced 40k ohm, unbalanced 20k ohm
  • Max Input Level: >+21dBu balanced or unbalanced
  • CMRR: >40dB, typically >55dB at 1kHz
    OUTPUTS
  • Connectors: 1/4" TRS, male XLR (pin 2 hot)
  • Type: Impedance-balanaced/unbalanced, RF filtered
  • Impedance: Balanced 100 ohm, unbalanced 50 ohm
  • Max Output Level:
    >+21dBu balanced/unbalanced into 2k ohm or greater
    >+18dBm balanced/unbalanced (into 600 ohm)
    SYSTEM PERFORMANCE
  • Bandwidth: 20Hz to 20kHz, +0.5/-1dB
  • Frequency Response: <10Hz to >50kHz, +0.5/-3dB
  • Dynamic Range: 108dB
  • Signal-to-Noise: 90dB
  • THD+Noise: <0.004%
  • Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
    FUNCTION SWITCHES
  • EQ Bypass: Bypasses the graphic equalizer section in the signal path
  • Low Cut: Activates the 50Hz 12dB/octave high-pass filter
  • Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range
    POWER SUPPLY
  • Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz, 230VAC 50/60Hz
  • Power consumption: 15W
  • Main Connection: IEC receptacle
