Datavideo SE-1200MU Switcher

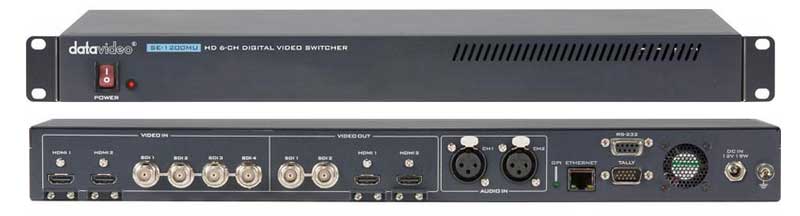

SE-1200MU Description

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.

SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC with the included SE-1200 software control panel, or the RMC-260 control panel.

SE-1200MU includes four HD-SDI and two HDMI inputs and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.

Two assignable HD-SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.

SE-1200MU Spec Sheet

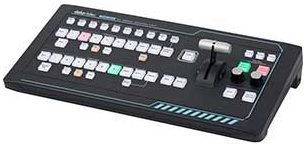

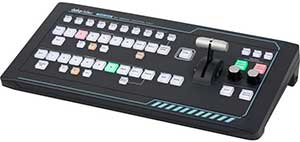

RMC-260 Optional Controller

The RMC-260 is a switcher-style controller - an alternative to using a PC to control the SE-1200MU.

• Support Keyers enable and function assignment quickly
• Save user behavior to user memory keys and load them quickly
• Two keyers with two corresponding knobs for assignment of Keyer 1/2 sources
• XPT (Cross Point Assignment)
• Take button to switch between PVW and PGM views
• FTB button fades the PGM view to a black screen
• Cross Dissolve button applies cross-dissolve transition effect to switching between PGM and PVW views
• Still Grab function captures the instantaneous video image
• RS-232 interface for communication between RMC-260 and SE-1200MU
• Bright LED lighting
