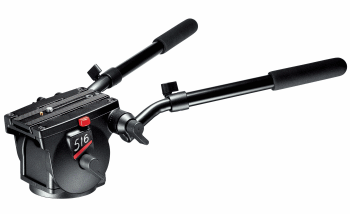

Bogen 516 Head

Description:

Specifically designed for the latest DV camcorders, the 516 Pro Video Head is compact, light, and can support cameras up to 22 lbs. The 516 is a cost effective high performance video head equipped with fluid cartridges that provides continuous adjustable drag control. This system gives quite a wide range of friction control down to "zero drag" and operates on both pan and tilt axis. Other features include separate pan and tilt locking mechanism, a fixed counter balance spring of 16.5 lbs load capacity at a center of gravity of 5", two telescopic pan handles, and a bubble level. The 516 can be mounted on a flat base tripod with a 3/8" female thread attachment, or by attaching the 3141BALL to the head base, allowing it to fit a 100mm bowl.

Features:

Finish: Black Maximum Load Capacity: 22 lbs. Head Height: 4.9" Pan: 360° Pan drag: Continuously adjustable Independent Pan Lock: Yes Pan Handles: 2 (telescopic) Tilt: -60° +90° Independent Tilt Lock: Yes QR Plate Supplied: 3272 Weight: 4.4 lbs.

Bogen 516 Head & Accessories:
Manfrotto 516	516 Head	$610
Manfrotto 3272	3272 QR plate for 516 head	$34
Manfrotto 3141BALL	Allows 516 head to mount in 100mm bowl	$34
