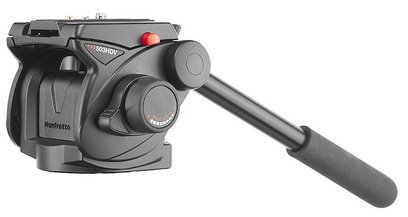

The 503HDV has a completely new ergonomic, easy-to-use, functional design; features include large ergonomic locks and knobs allowing for a more solid grip and better control. For enhanced ease of use, the tilt lock and friction controls are located on the left side of the head. It has an improved and adjustable counterbalance capacity: a switch controls the different counterbalance settings, allowing the user to adjust the system to accommodate various payloads for different filming needs. The counterbalance system can be adjusted to four positions ensuring both smoother tilt movements and greater equipment safety. In addition, it has an illuminated levelling bubble - making it easy for shooters to level the camera in low-light conditions. In addition to the old 503, the 503HDV has also a replaceable pan bar rosette. The built-in, carefully hand-set bubble spirit level helps make sure your horizons really are horizontal. |
|
height: 4.5 in weight: 4.3 lbs load capacity: 17.6 lbs plate type: 501PL panoramic rotation: 360 ° minimum working temperature: -20 °C maximum working temperature: 60 °C independent pan lock: yes tilt drag: continuously adjustable from 0 to max level front tilt: -60° / +90° quick release: yes secondary safety system: yes levelling bubble: illuminated pan bars included (no.): 1 pan bar positions: 2 attachment (bottom): 3/8'' female thread to mount on 75 mm flat top tripod attachment (top): 1/4'' and 3/8'' screws pan drag: continuously adjustable from 0 to max level independent tilt lock: yes sliding travel of plate: 2 in working height: 4.5 in balance control: 4 step: 0Kg - 1.3Kg - 2.6Kg - 3.9Kg |
| Bogen 503HDV Head & Accessories: | |||
|---|---|---|---|
| Bogen 503HDV head | $345 | ||
| Replacement QR plate for 3433, 3460, 501HDV head | $24 | ||
| Second handle kit for 3460, 503HDV head | $37 | ||
