Audio Technica U859QL

Click for complete info! Audio Technica U859QL
G&G Price: $133

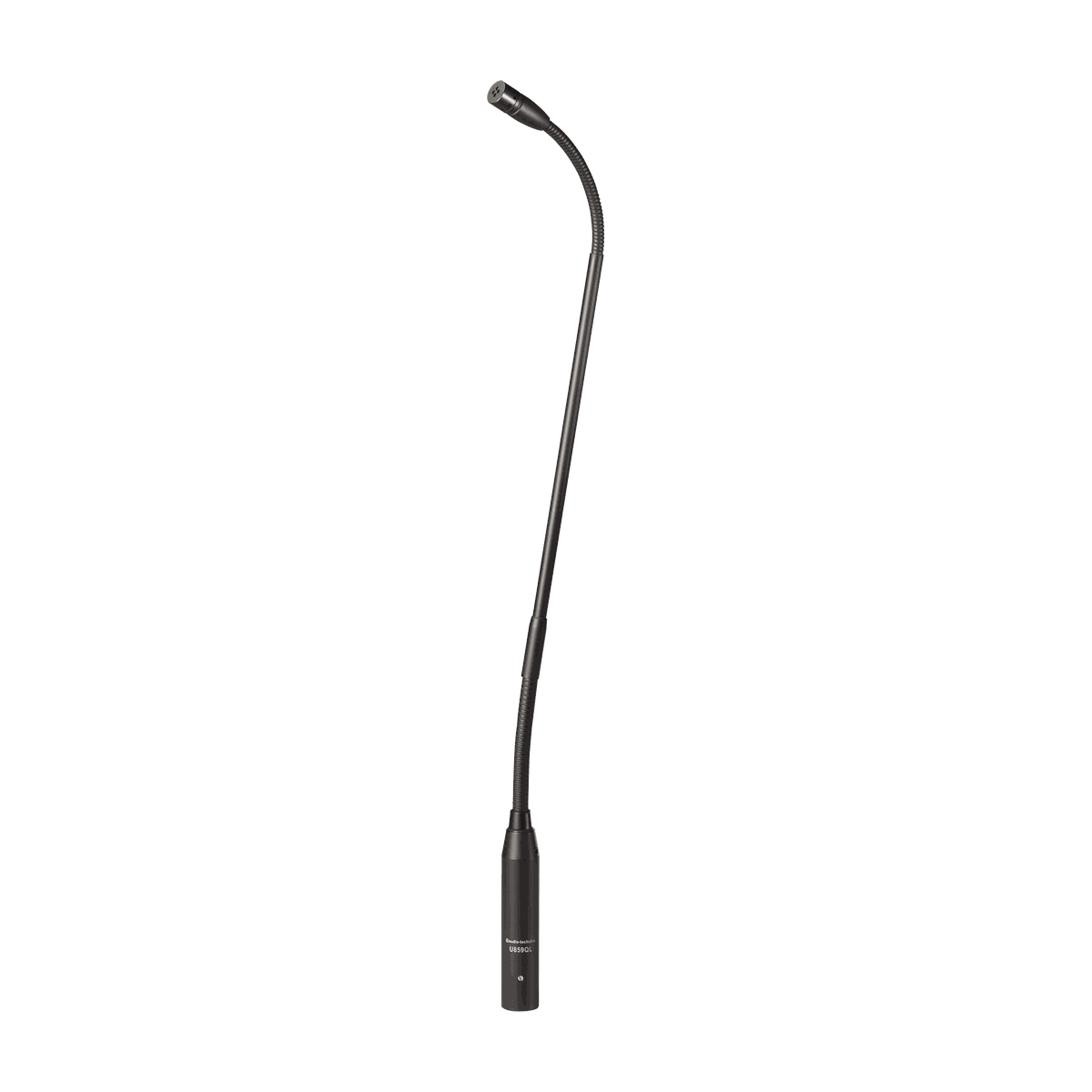

Cardioid Condenser Quick-mount Gooseneck Microphone.
18.90″ length
Includes windscreen
List Price: $202

Description:

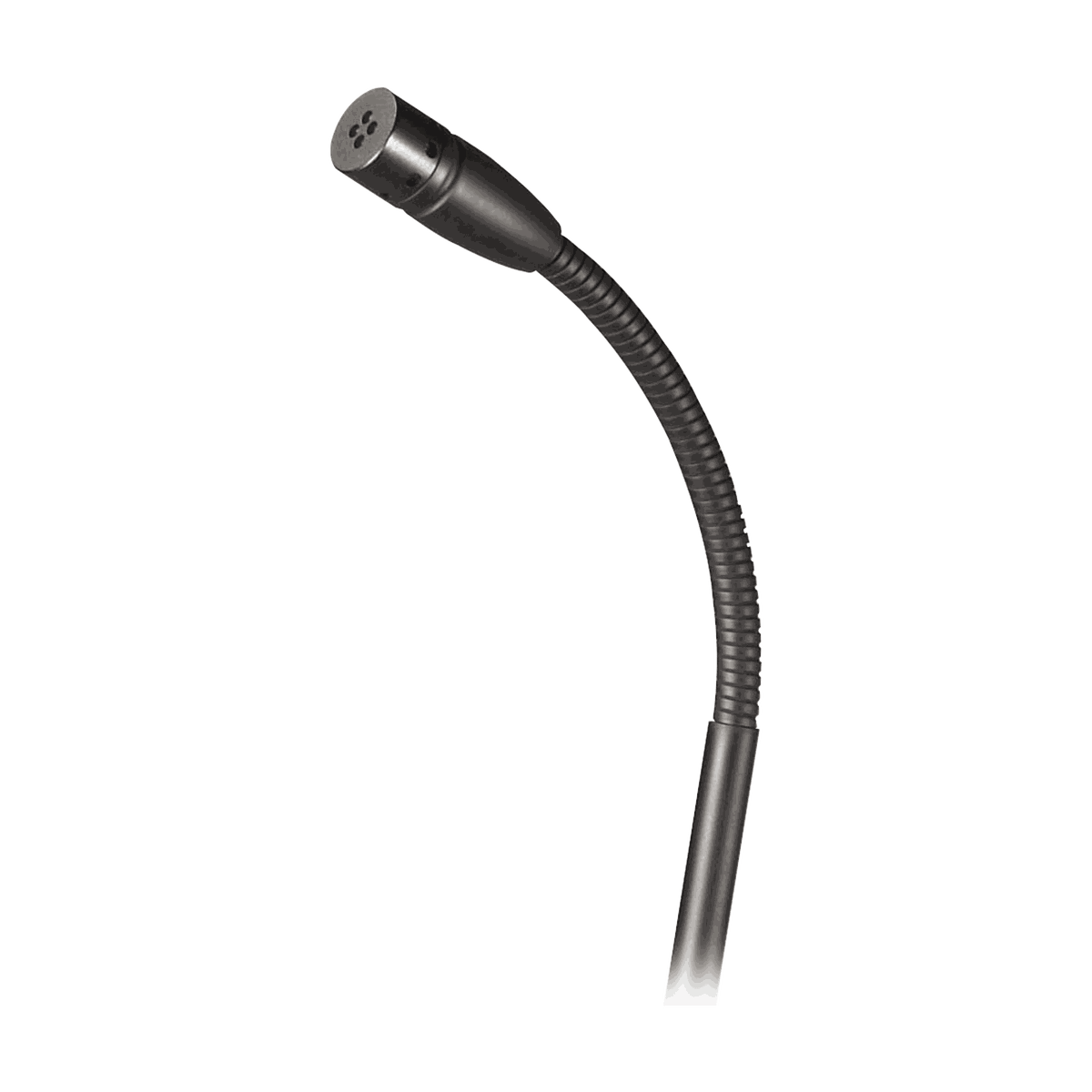

Designed to plug directly into a panel- or desk-mounted XLRF-type connector, the U859QL cardioid condenser quick-mount gooseneck microphone features an ultra-flexible small-diameter gooseneck and accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine™ line cardioid polar patterns. Equipped with self-contained electronics, the phantom-powered microphone also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone is 18.90” long.

Features:
  • Designed for high-quality sound reinforcement, professional recording and broadcasting
  • Superior off-axis rejection for maximum gain before feedback
  • Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Self-contained electronics eliminate need for external power module
  • Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector

Specifications:
  • ELEMENT: Fixed-charge back plate, permanently polarized condenser
  • POLAR PATTERN: Cardioid
  • FREQUENCY RESPONSE: 100-16,000 Hz
  • LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
  • OPEN CIRCUIT SENSITIVITY: –43 dB (7.0 mV) re 1V at 1 Pa
  • IMPEDANCE: 250 ohms
  • MAXIMUM INPUT SOUND LEVEL: 140 dB SPL, 1 kHz at 1% T.H.D.
  • DYNAMIC RANGE (typical): 111 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
  • PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
  • SWITCH: Flat, roll-off
  • WEIGHT: 5.4 oz (152 g)
  • DIMENSIONS: 18.90" (480.0 mm) long, 0.48" (12.3 mm) head diameter, 0.74" (18.9 mm) base diameter
  • OUTPUT CONNECTOR: Integral 3-pin XLRM-type

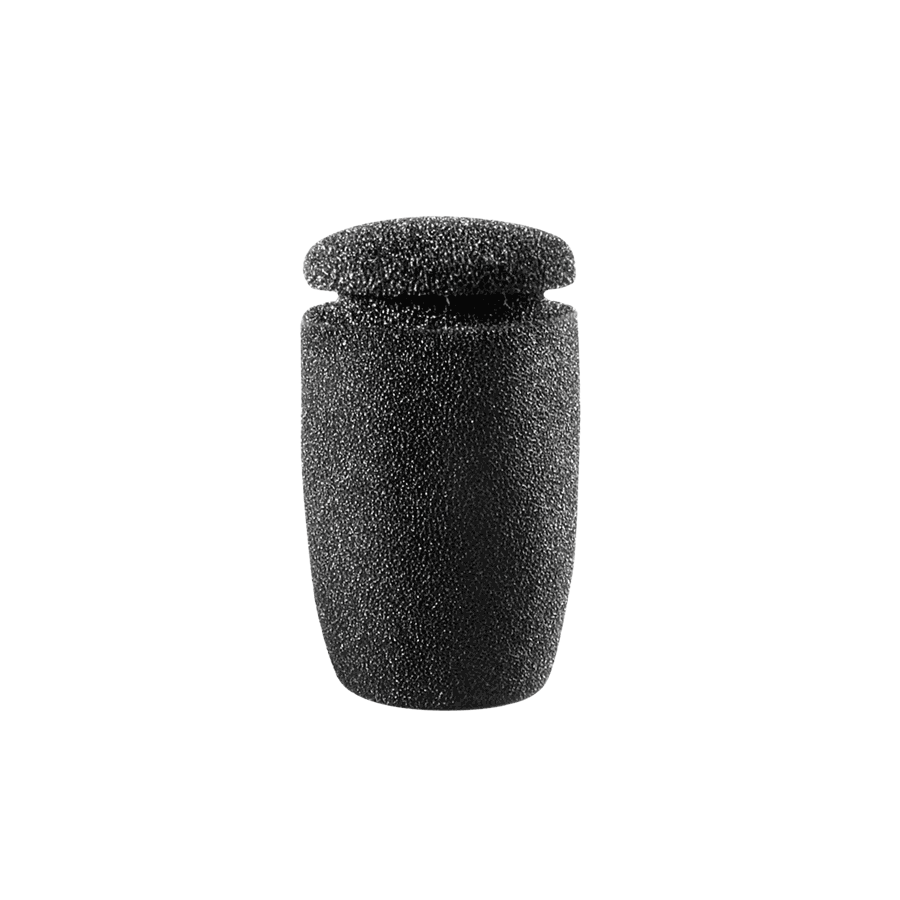

  • ACCESSORY FURNISHED: AT8153 two-stage foam windscreen
  • AUDIO-TECHNICA CASE STYLE: M34
