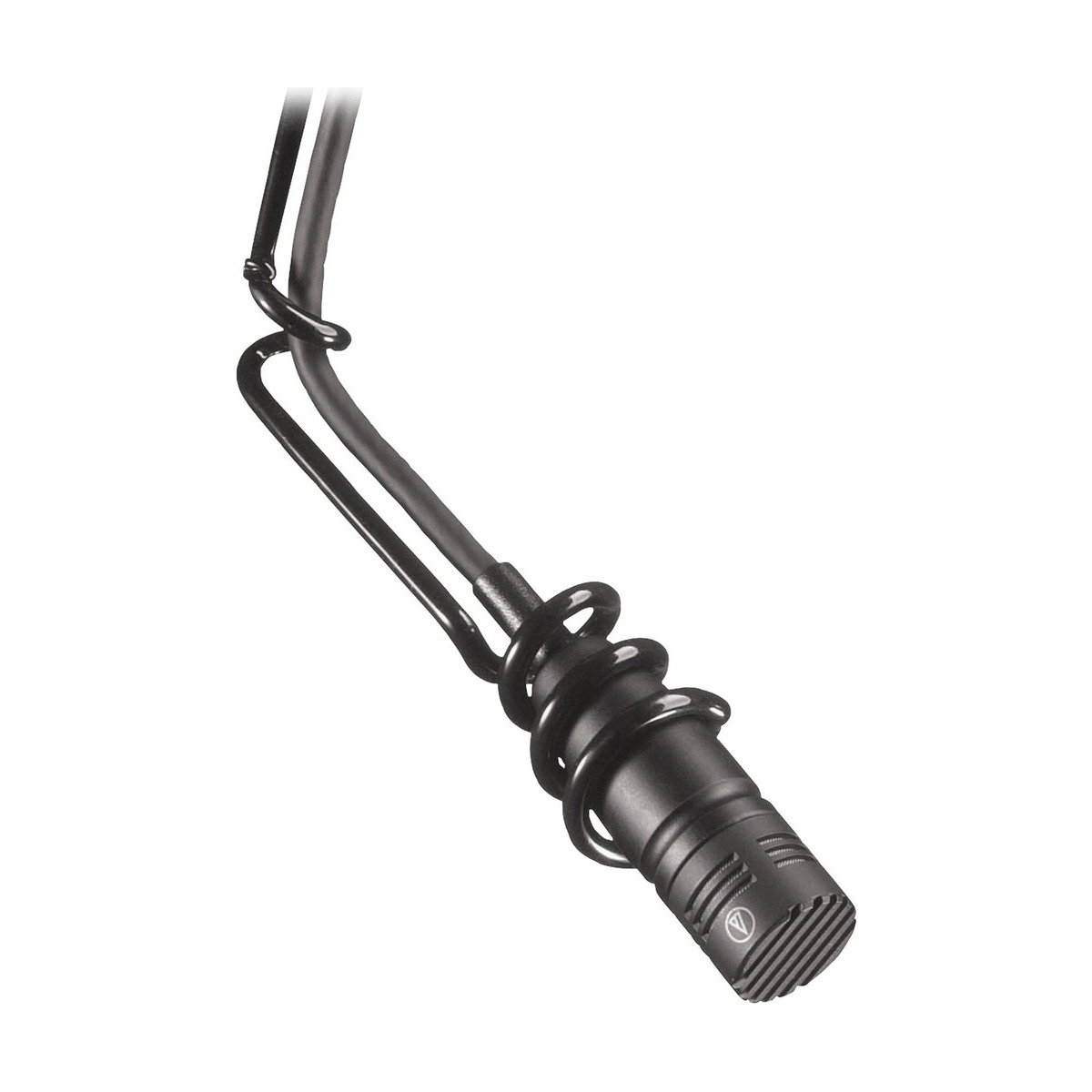

Audio Technica U853R

Click for complete info! Audio Technica U853R
G&G Price: $159
Cardioid Condenser Hanging Microphone.
List Price: $240
Audio Technica U853RW
G&G Price: $159
Cardioid Condenser Hanging Microphone - White.
List Price: $240

Description:
Perfect for speech, theater, orchestra and choir sound reinforcement and recording, the U853R cardioid condenser hanging microphone is equipped with UniGuard™ innovations that offer unsurpassed immunity from radio frequency interference. With a consistent cardioid polar pattern, the mic offers natural sound from any angle, and superior gain before feedback. It is phantom powered and features an integral 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine™ line cardioid polar patterns.

Features:
  • Designed for suspension over choirs, instrumental groups and theater stages
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard™ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
  • Low-profile design with low-reflectance finish for minimum visibility
  • Available in two colors: black (U853R) and white (U853RW)

Specifications:
  • ELEMENT: Fixed-charge back plate, permanently polarized condenser
  • POLAR PATTERN: Cardioid
  • FREQUENCY RESPONSE: 30-20,000 Hz
  • LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
  • OPEN CIRCUIT SENSITIVITY: –39 dB (11.2 mV) re 1V at 1 Pa
  • IMPEDANCE: 250 ohms
  • MAXIMUM INPUT SOUND LEVEL: 139 dB SPL, 1 kHz at 1% T.H.D.
  • DYNAMIC RANGE (typical): 115 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO: 70 dB, 1 kHz at 1 Pa
  • PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
  • SWITCH: Flat, roll-off
  • WEIGHT (MICROPHONE): 0.5 oz (14 g)
  • WEIGHT (POWER MODULE): 2.9 oz (81 g)
  • DIMENSIONS (MICROPHONE): 1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter
  • DIMENSIONS (POWER MODULE): 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter
  • OUTPUT CONNECTOR (POWER MODULE): Integral 3-pin XLRM-type

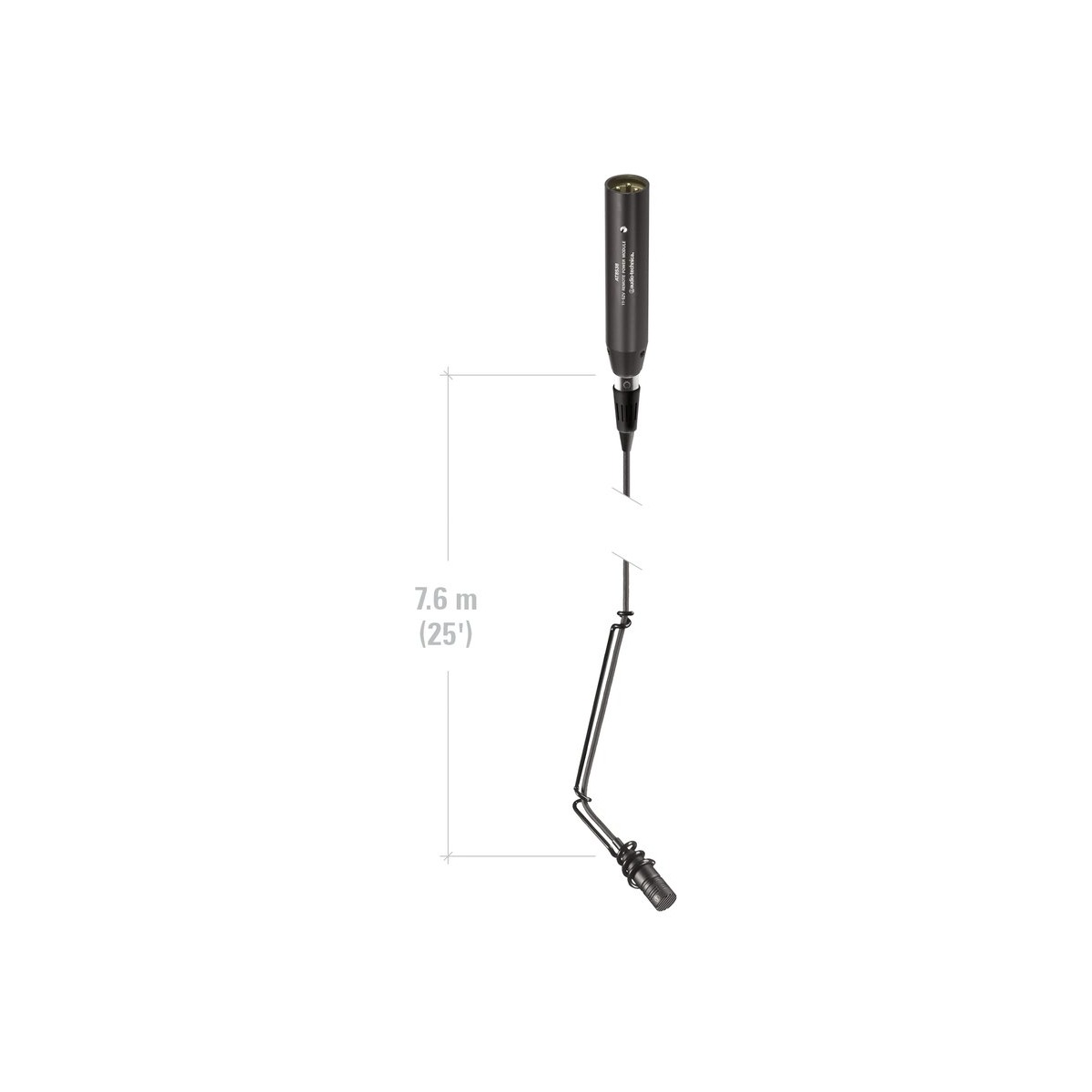

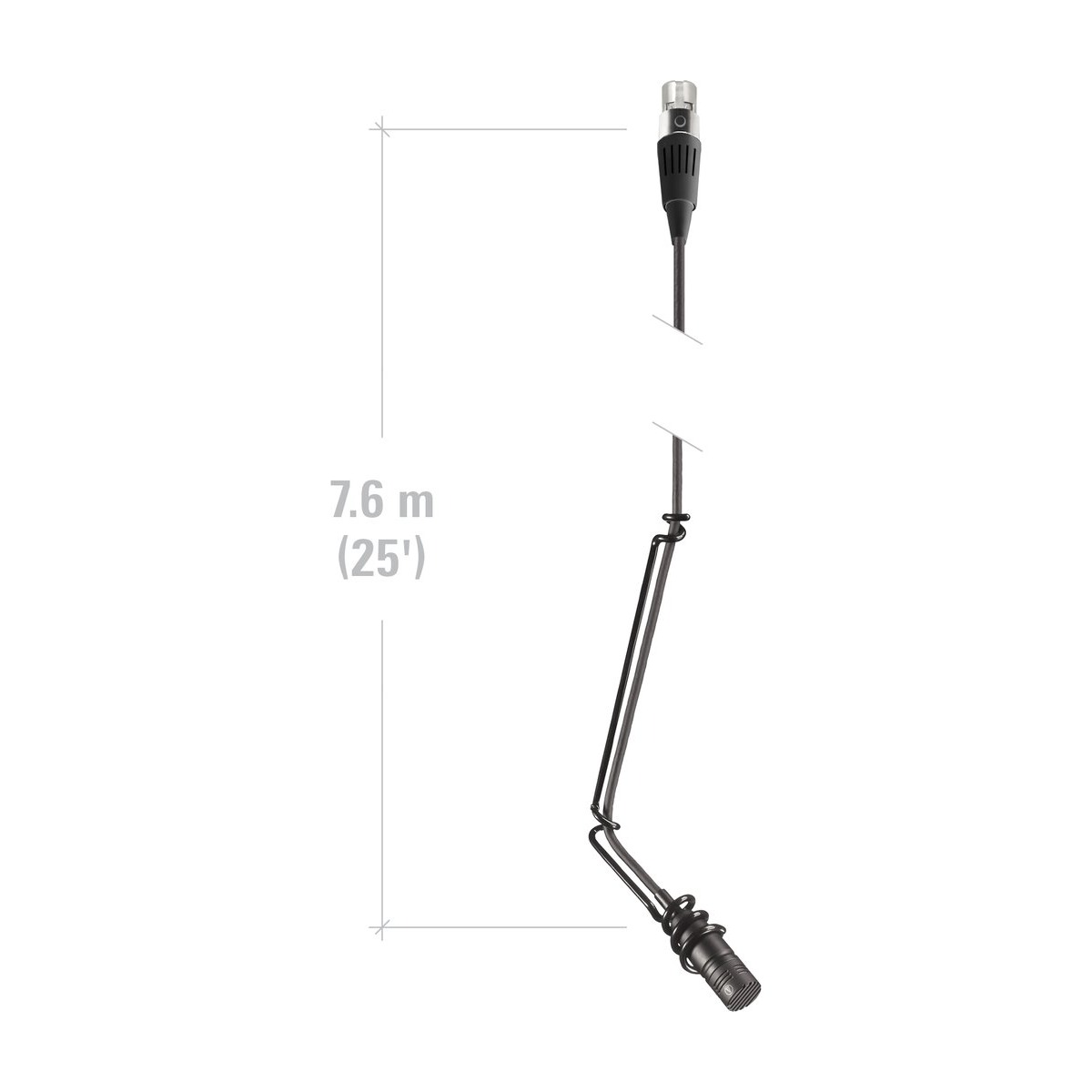

  • CABLE: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector
  • OPTIONAL INTERCHANGEABLE ELEMENTS: UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine™ (90°)

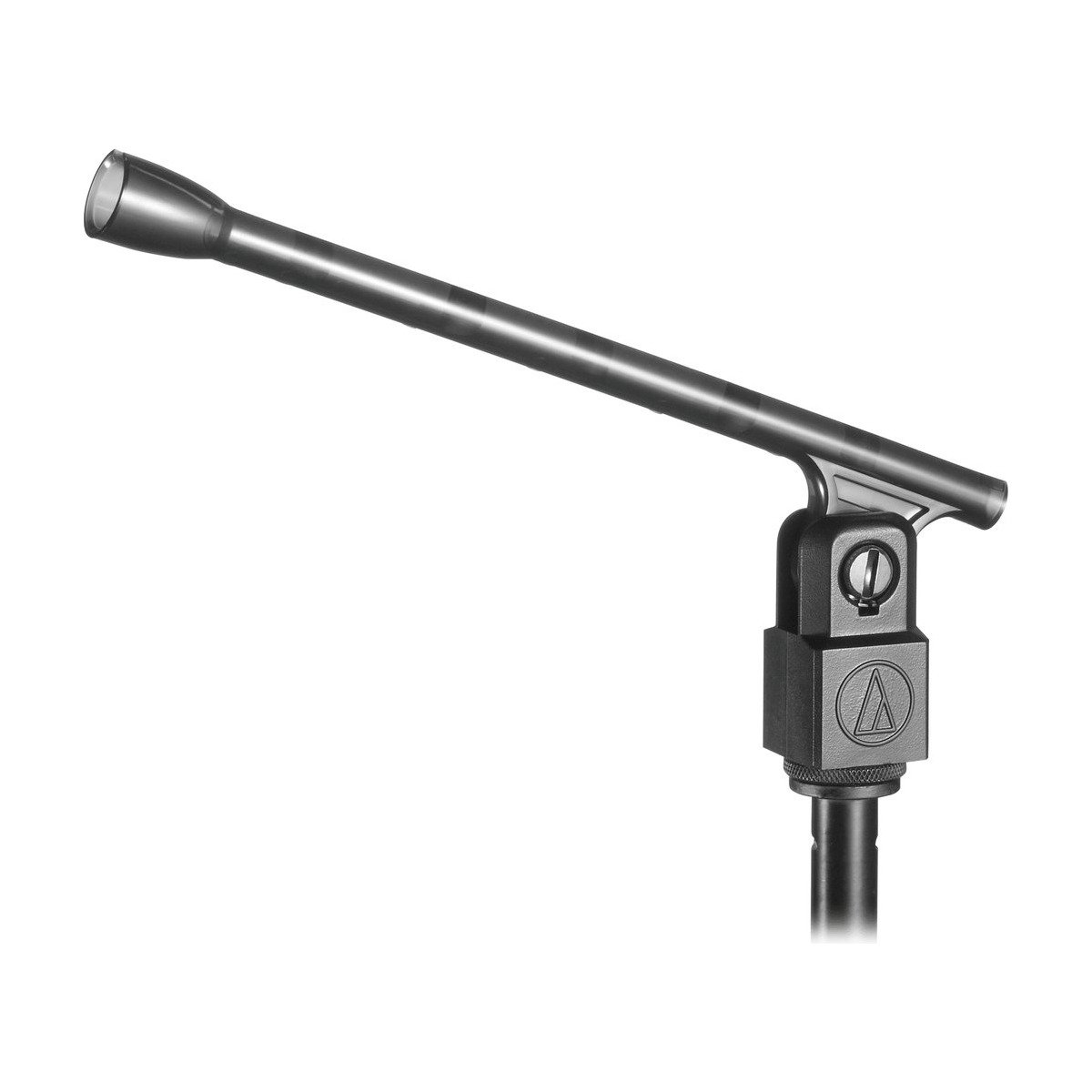

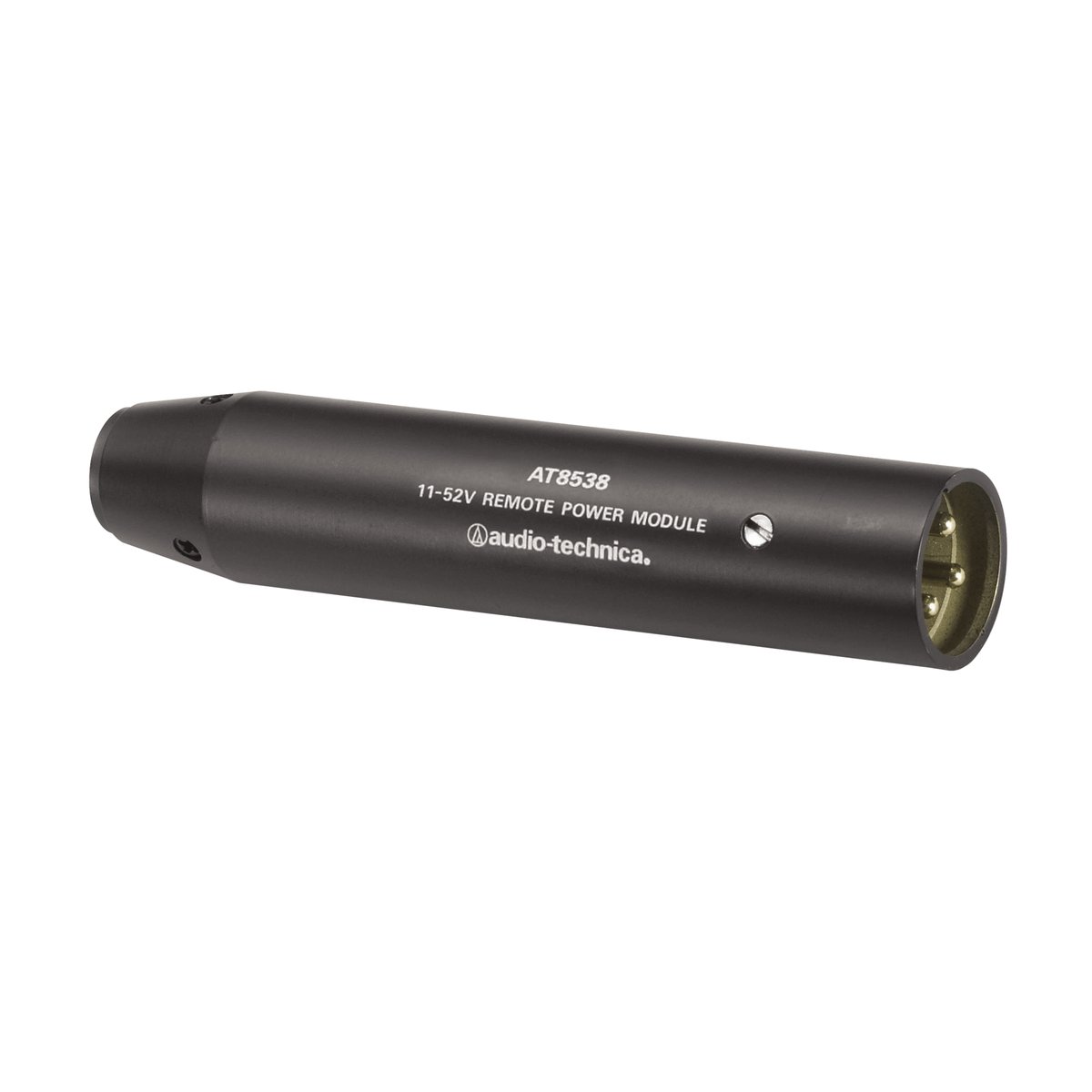

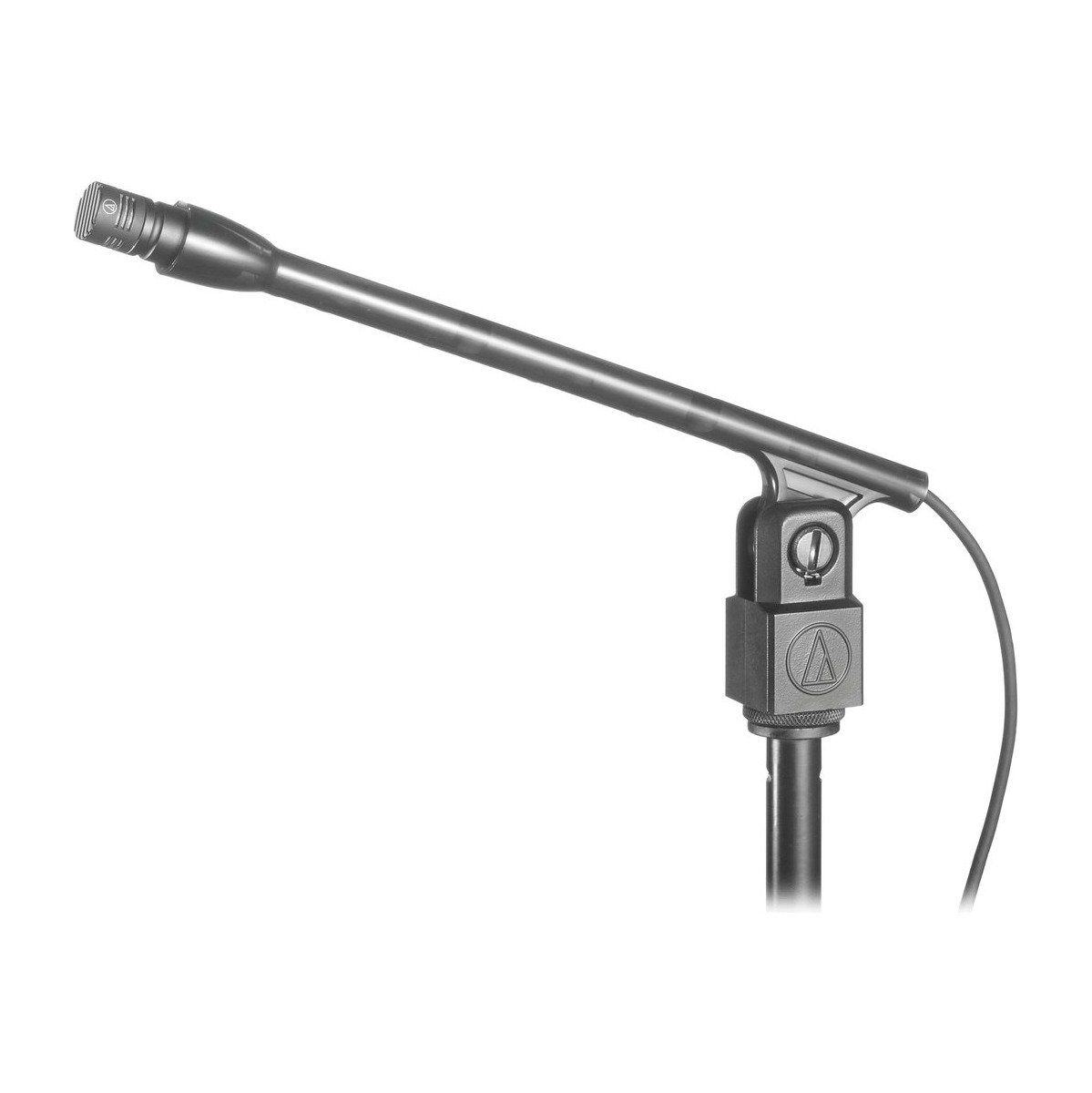

  • ACCESSORIES FURNISHED: AT8153 two-stage foam windscreen; AT8451 steel hanger; AT8538 power module; AT8438 5/8"-27 stand adapter
  • AUDIO-TECHNICA CASE STYLE: M12
