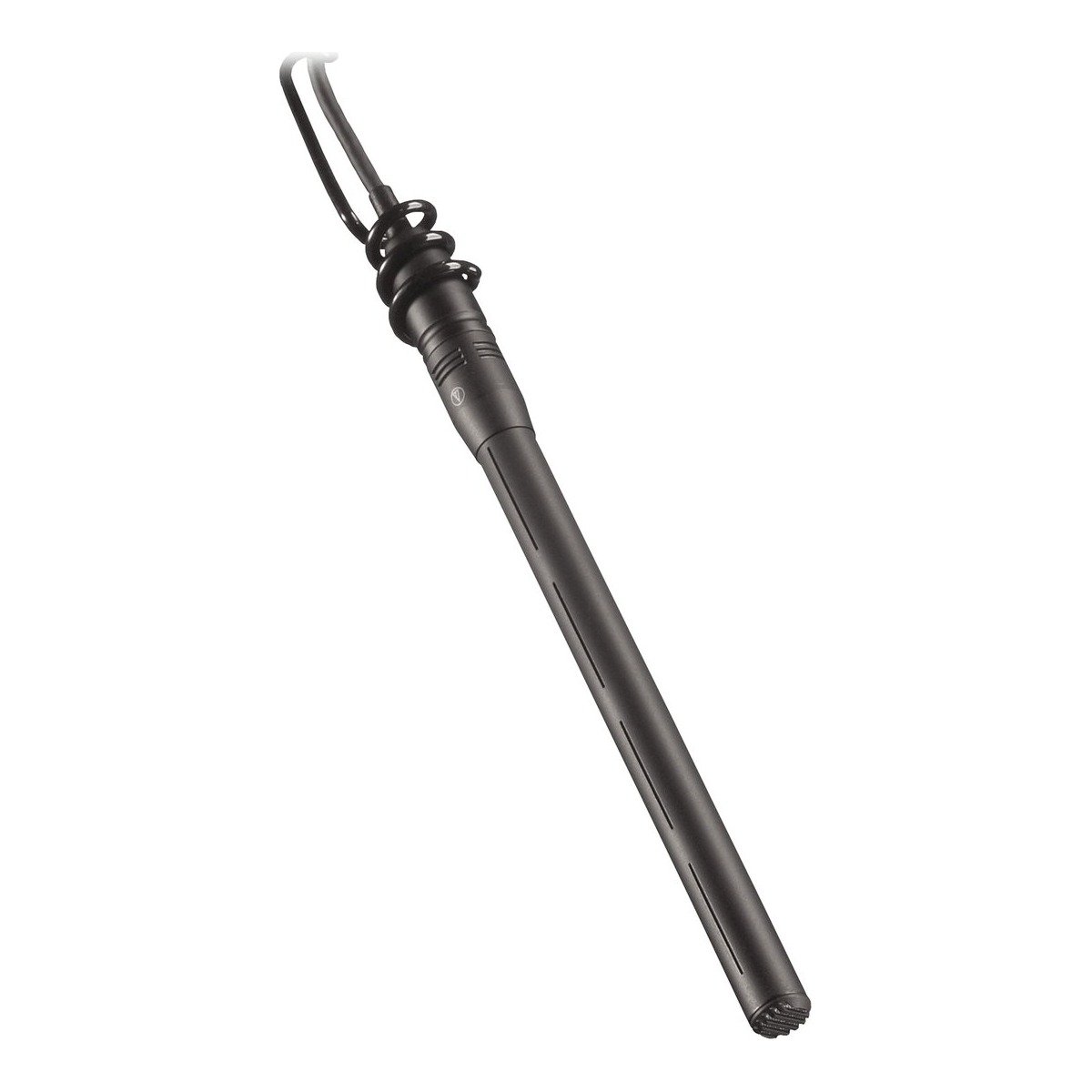

Audio Technica U853PMU

Click for complete info! Audio Technica U853PMU
G&G Price: $179
UniLine™ Condenser Hanging Microphone.
List Price: $270
Audio Technica U853PMWU
G&G Price: $179
UniLine™ Condenser Hanging Microphone - White.
List Price: $270

Description:
Featuring Audio-Technica’s UniLine™ line-cardioid element, the U853PMU condenser hanging microphone comes equipped with a wall/ceiling plate power module for permanent installation in a standard, single-gang electrical box. The phantom-powered microphone also offers UniGuard™ innovations that deliver unsurpassed immunity from radio frequency interference. It accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine™ line cardioid polar patterns. Its 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise.

Features:
  • Designed for suspension over choirs, instrumental groups and theater stages
  • Wall/ceiling plate power module permits permanent installation in standard metal U.S. single gang electrical box
  • UniLine™ polar pattern provides narrow 90° acceptance angle
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard™ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
  • Low-profile design with low-reflectance finish for minimum visibility
  • Available in two colors: black (U853PMU) and white (U853PMWU)

Specifications:
  • ELEMENT: Fixed-charge back plate, permanently polarized condenser
  • POLAR PATTERN : Line Cardioid
  • FREQUENCY RESPONSE: 30-20,000 Hz
  • LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
  • OPEN CIRCUIT SENSITIVITY: –35 dB (17.7 mV) re 1V at 1 Pa
  • IMPEDANCE: 200 ohms
  • MAXIMUM INPUT SOUND LEVEL: 124 dB SPL, 1 kHz at 1% T.H.D.
  • DYNAMIC RANGE (typical): 102 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 Pa
  • PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typical
  • SWITCHES: Flat, roll-off; 0 dB/+10 dB gain setting
  • WEIGHT (MICROPHONE): 1.1 oz (30 g)
  • WEIGHT (POWER MODULE): 3.4 oz (97 g)
  • DIMENSIONS (MICROPHONE): 6.14" (156.0 mm) long, 0.48" (12.2 mm) diameter
  • DIMENSIONS (POWER MODULE): 2.80" (71.0 mm) W x 4.55" (115.5 mm) H x 1.42" (36.0 mm) D
  • OUTPUT CONNECTOR (POWER MODULE: Screw terminals
  • CABLE: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
  • OPTIONAL INTERCHANGEABLE ELEMENTS: UE-C cardioid (120°); UE-H hypercardioid (100°); UE-O omnidirectional (360°)

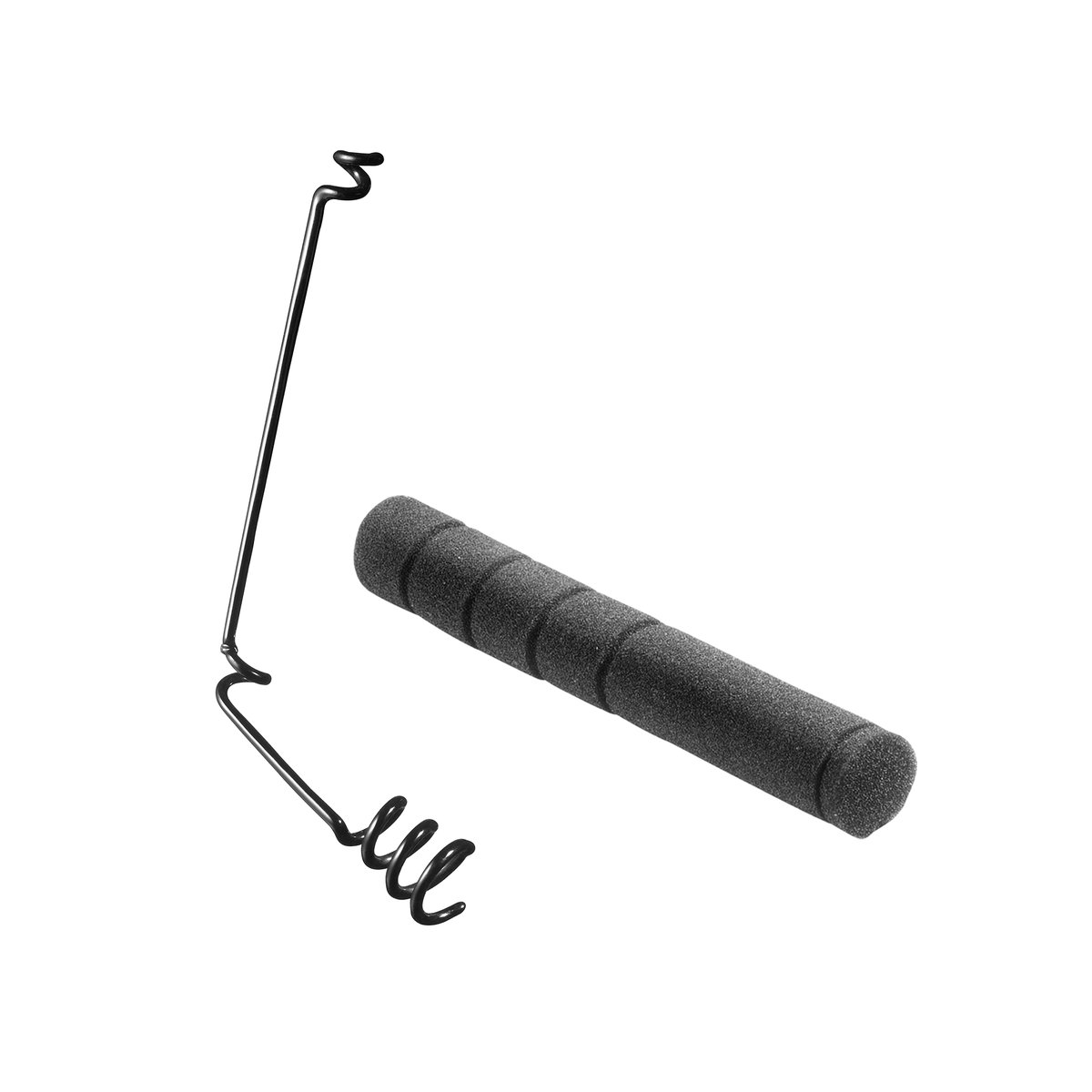

  • ACCESSORIES FURNISHED: AT8154 two-stage foam windscreen; AT8451 steel hanger; AT8534 wall/ceiling plate power module; AT8438 5/8"-27 stand adapter
  • AUDIO-TECHNICA CASE STYLE: M32
