Audio Technica U853PM

	Audio Technica U853PM G&G Price: $159 Cardioid Condenser Hanging Microphone. List Price: $240
	Audio Technica U853PMW G&G Price: $159 Cardioid Condenser Hanging Microphone - White. List Price: $240

Description:

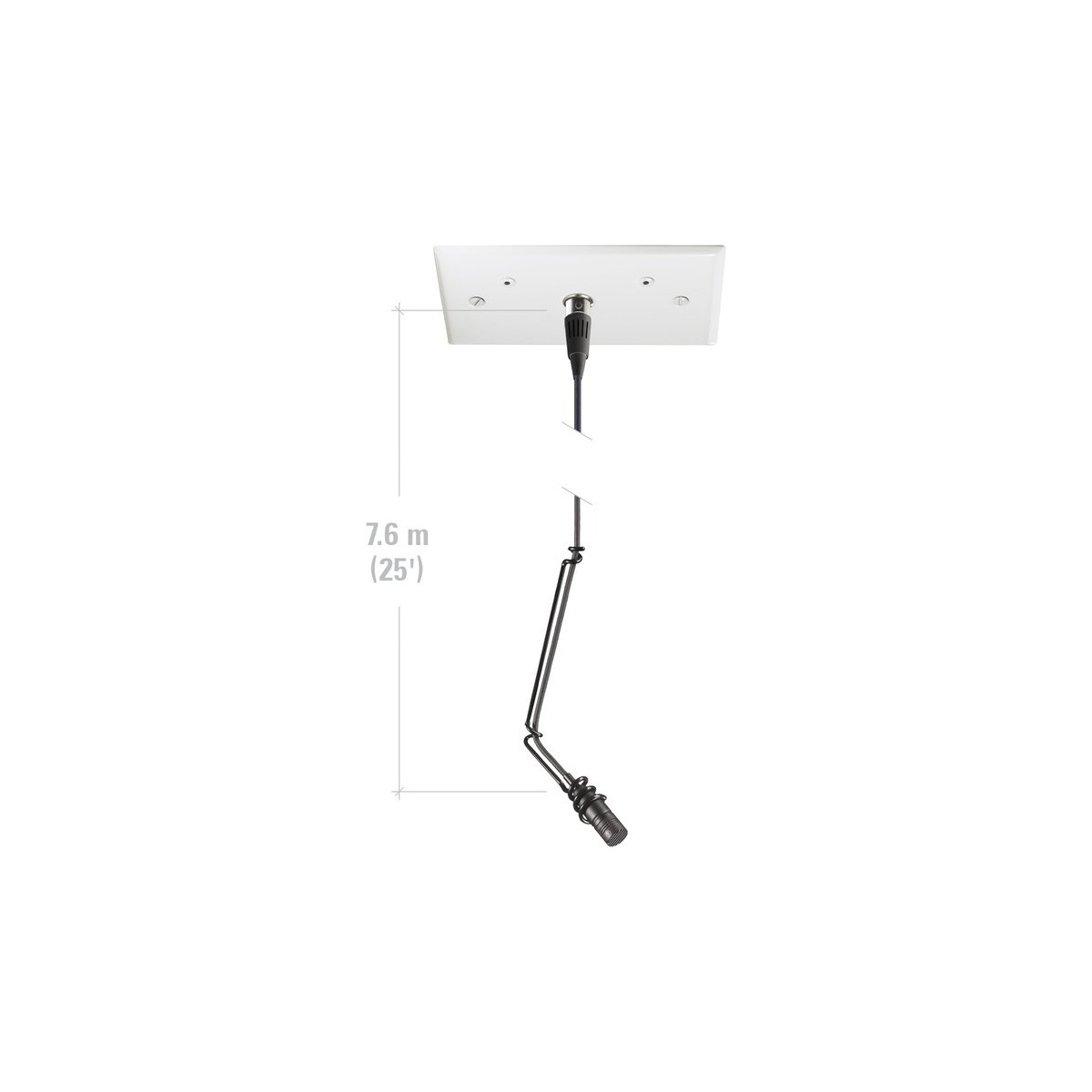

Designed for permanent installation, the U853PM cardioid condenser hanging microphone comes equipped with a wall/ceiling plate power module. The phantom-powered microphone features UniGuard™ innovations that offer unsurpassed immunity from radio frequency interference. It accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine™ line cardioid polar patterns. Its 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise.

Features:

Designed for suspension over choirs, instrumental groups and theater stages

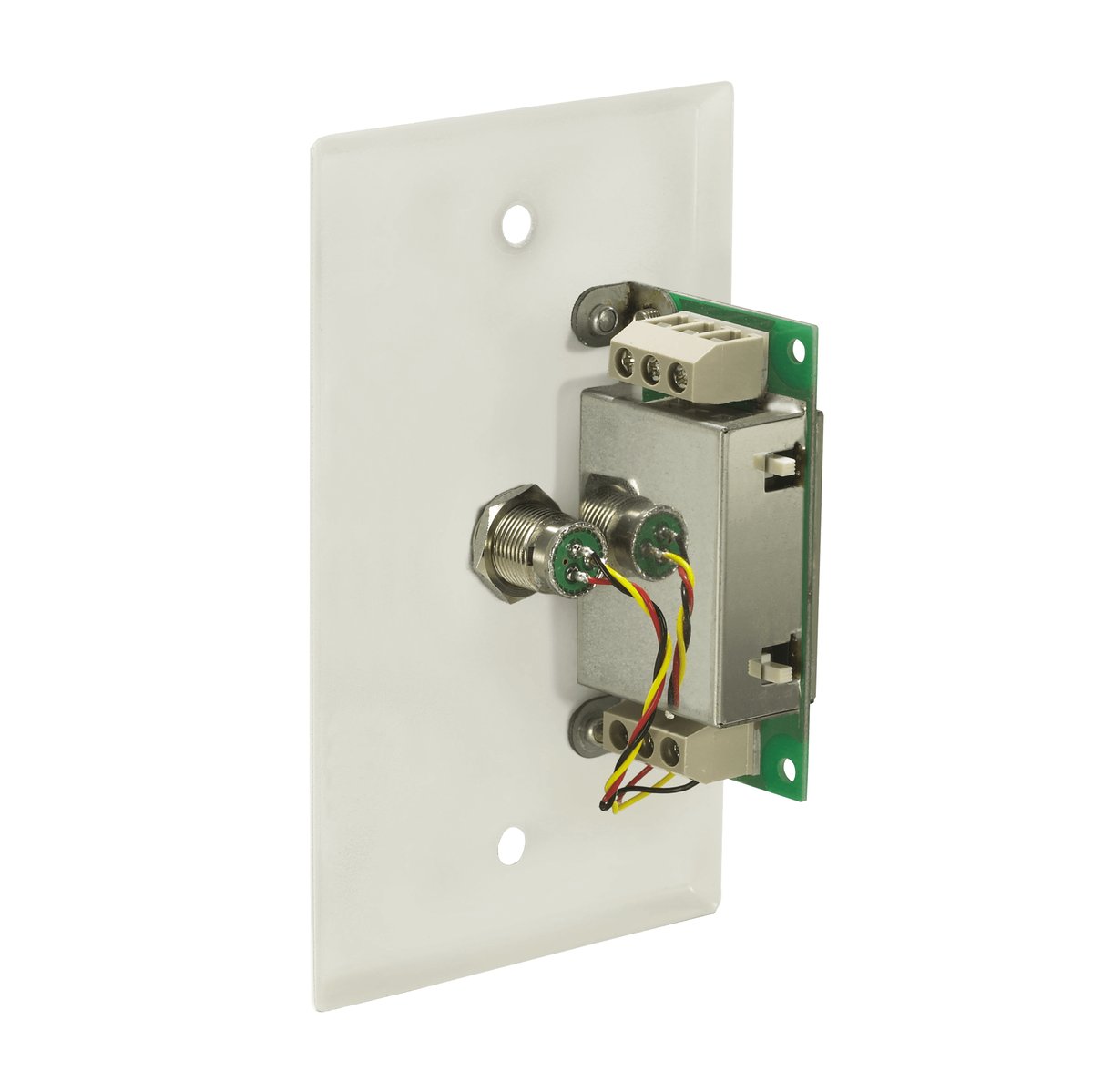

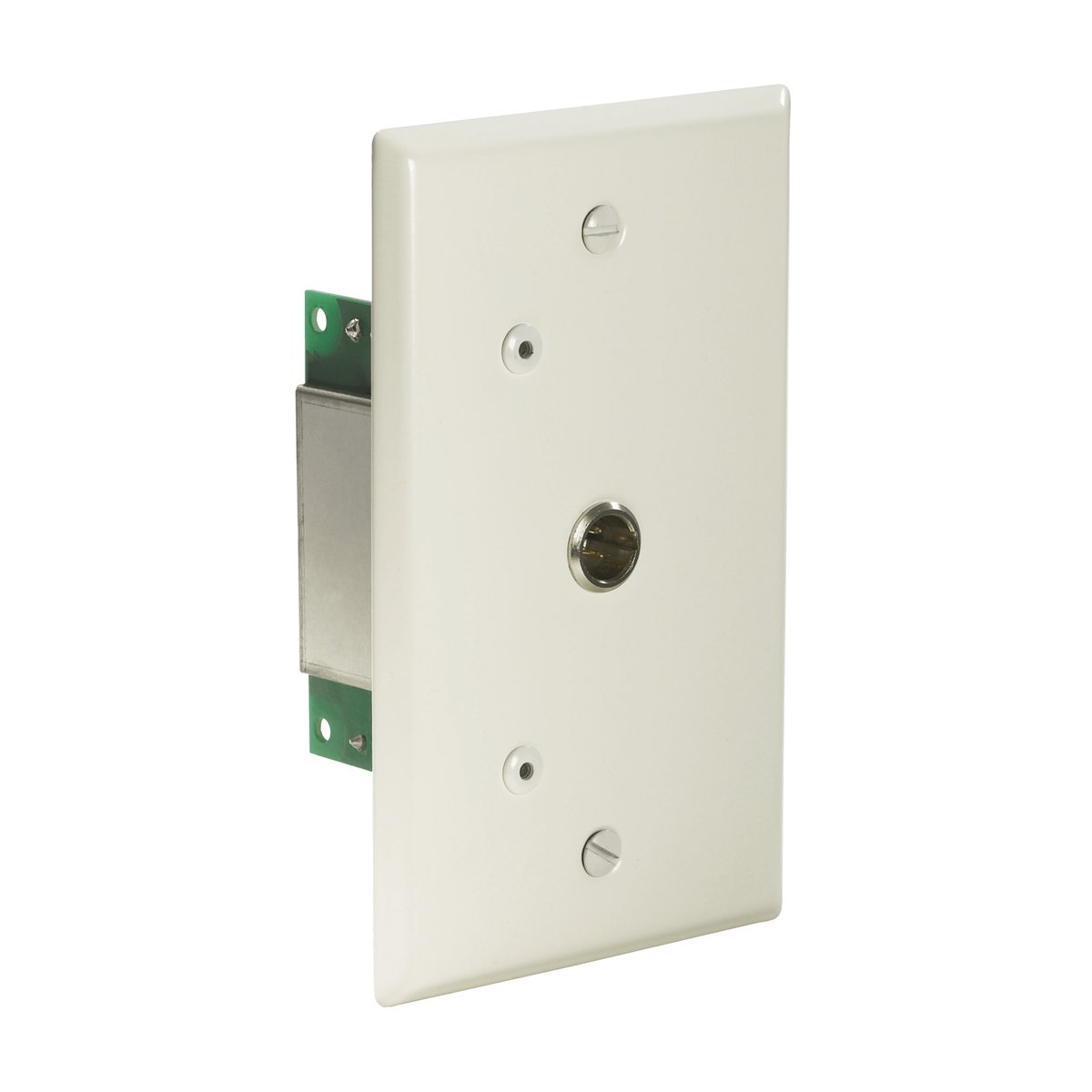

Wall/ceiling plate power module permits permanent installation in standard metal U.S. single gang electrical box
Superior off-axis rejection for maximum gain before feedback
UniGuard™ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
Low-profile design with low-reflectance finish for minimum visibility
Available in two colors: black (U853PM) and white (U853PMW)

Specifications:

ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 30-20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY: –39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE: 200 ohms
MAXIMUM INPUT SOUND LEVEL: 128 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical): 102 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 68 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typical
SWITCHES: Flat, roll-off; 0 dB/+10 dB gain setting
WEIGHT (MICROPHONE): 0.5 oz (14 g)
WEIGHT (POWER MODULE): 3.4 oz (97 g)
DIMENSIONS (MICROPHONE): 1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter
DIMENSIONS (POWER MODULE): 2.80" (71.0 mm) W x 4.55" (115.5 mm) H x 1.42" (36.0 mm) D
OUTPUT CONNECTOR (POWER MODULE): Screw terminals CABLE: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS: UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine™ (90°)
ACCESSORIES FURNISHED: AT8153 two-stage foam windscreen; AT8451 steel hanger; AT8534 wall/ceiling plate power module; AT8438 5/8"-27 stand adapter
AUDIO-TECHNICA CASE STYLE: M12
